Motor Type Other
Certification NONE
Origin CN(Origin)
Model Number FX1N-20MT

Product Description

Wide supply voltage 10-28VDC

Dimensions: Length X Width X Height: 66X73X20mm Mounting hole size: 58*65mm Secure with 4 M3 screws.

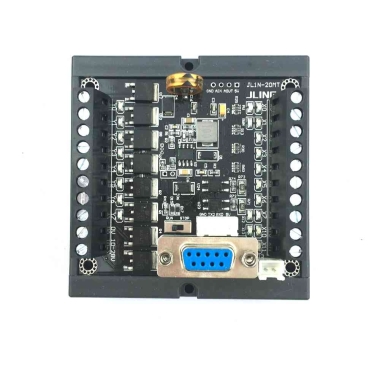

This board is a PLC board, directly using GX programming software to write ladder diagrams, directly written to the PLC, can be monitored online, the price is even cheaper than the single-chip board.

Advantages of using a PLC board:

1. Easy to program, customers can learn to program in one day

2. Reusable

3. High stability

4. Easy to expand

1. Comprehensive, systematic anti-interference treatment, power supply circuit through multiple anti-interference design, no fear of all kinds of harsh electromagnetic interference working environment.

2. Use powerful 32-bit high-speed ARM core CPU; can be programmed with programming software FXGPWIN or GX Developer

Can be downloadedDebugMonitor

(No software conversion is required, the same download method as regular PLC)

Scope of application: It can be flexibly used in various industrial automatic control occasions, such as metallurgy, chemical, plastic, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control equipment. , industrial assembly lines, industrial control equipment for various machine tools.

6. This industrial control board can supply power to 10VDC-24VDC, and select type FX1N. Input: X0-X13 total 12 points, output: Y0-Y7 a total of 8 points. Maximum memory capacity: 2000 steps (the board has been sprayed with three anti-paint to better adapt to complex application environments)

Dimensions: length X width X height: 66X73X42mm.

project		performance
Auxiliary relay	General use	MO-M383
	Power outage	M384-M1535
	Special use	M8000-M8255
status	Keep in use	S0S999
Timer	100MS	T0T199(0.1-3276.7second)	Built-in potentiometer for analog timer VR1: D5030
	10MS	T200-245(0.01-327.67second)
	1MS cumulative type	T246-T249 Power outage
	100MS cumulative type	T250-T255 Power outage
counter	16-bit increment	C0-C15(0-32767)
	16-bit increment (power-off retention)	C16-C199
	High-speed counter (power-off hold)	C200-C255
Data register	16-bit universal	D0-D127
	16-bit power-off retention	D128-D5029
	16-bit special use	D5030(1 analog potentiometer)

Input high speed pulse C 2 3 5, C 2 5 1 function compatible with FX1NY0 Y1 can send up to 10K pulse, and its function is compatible with FX1N.The output point is an open collector output with a rated current of 5A, which can directly drive the DC valve without external relay. With an RS232 port, it can be used to download ladder diagrams or communicate with various touch screens and text screens. Precautions for use:1. When the computer is programmed with the GX Developer programming software and when connected to the text screen, use a commercially available male-to-female one-to-one 9-pin communication cable.2. This PLC has one analog input AD built in, corresponding to the internal data register D5030 (not D8030). 9pin female programming port definition2 TX3 RX5 GNDUse a commercially available 9pin one-to-one male to female cable that can be directly connected to text and computer serial ports.

This board can be connected to the display panel of our store's display and input parameters through the programming port. The simple text is equivalent to the touch screen. It can be displayed and input parameters without programming. If you need to display and input parameters, please click the link.

PLC display and input parameter display board, function is equivalent to text, touch screen does not need to be programmed
