Product selling point

1: Widely used

2: Stepper motor controller + driver integrated

3: TTL serial communication

4: Automatic/manual multiple modes

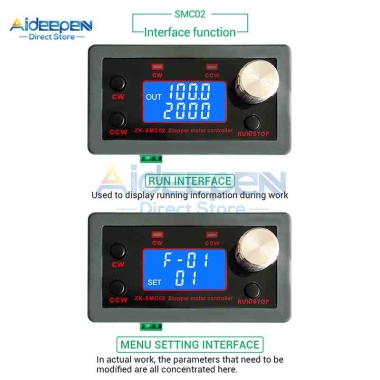

5: LCD display

pay attention

Electronic module products require you to have a certain electronic foundation, and read the product description carefully before use; the product is not designed for medical, life-saving, life-saving and other purposes, and cannot be used in dangerous places such as coal mines and oil depots. We will not take any such responsibilities. Guarantee; product profits are low, users' operating capabilities and use occasions vary greatly, and any electronic equipment cannot be foolproof. The owner of the equipment should prepare corresponding protective measures and risk management plans. If the equipment directly or indirectly causes any personal or property damage, the company is not responsible for compensation

1. Product introduction

This is an operation control module specifically for single-axis stepper motors. The module has a variety of fixed operating modes built-in, and the user can quickly select the appropriate motion track. You can save and set the distance/speed/delay/cycle times after power-off. It can run independently as a module, or it can be used in conjunction with other systems. It can be used in general industrial control occasions, but cannot be used in special industries such as medical treatment and fire fighting or life-critical fields.

2. Product parameters

Model: ZK-SMC02 stepping motor controller + driver

Adapted motor: stepper motor

Number of control axes: single axis

Motor signal: common cathode

Power supply range: DC 5-30V universal

Drive capacity: 4A

Instruction features: streamline and optimize multiple commonly used instructions

Acceleration and deceleration control: Yes

Input reverse connection protection: Yes

Remote communication control: TTL serial port

Main functions of the system: automatic, manual, setting, serial port control

Speed range: 0.1~999 laps/minute

Number of forward pulses: 1-9999 pulses

Number of reverse pulses: 1-9999 pulses

Cycle work times: 1-9999 times

Forward delay time: 0.0-999.9 seconds

Reversal delay time: 0.0-999.9 seconds

Subdivision selection range: 1-128 subdivision

Product use environment: -5℃-60℃ (non-condensing)

other instructions

1. As long as it is a 2-phase 4-wire 5-wire 6-wire 8-wire stepper motor, it can be controlled.

2. It can control drivers with similar interfaces.

3. The number of pulses for one revolution should be determined according to the subdivision of the driver and the step angle of the stepper motor

Checklist

1*controller
