RM1307731645734465

Input voltage: 12V-24V DC
PWM frequency: 15KHz
Speed adjustable range: 0%-100%
Working current: 5A

Working current:8A

Working Power:12VX5A=60W

                         24VX5A=120W

Size: 62*45*22mm

Weight:40g

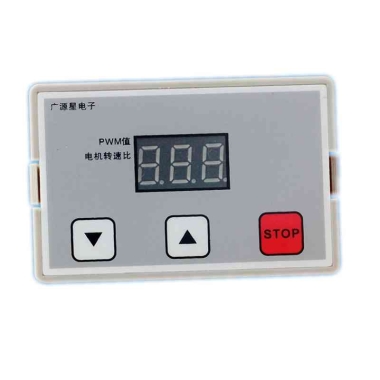

The display range of 3-digit LED display is "000"-"100". (For example, displayed "055", it means that the PWM output duty cycle is 55%.)

Slow start function:
When connect the power to start,the motor will reach the setting speed slowly,not reach immediately.it can avoid the instantaneous impact damage the power or motor.


WARNING:
Do Not Reverse Positive And Negative Power Loads. This Will Damage The Controller.
To Change Motor Direction, Interchange The Positive And Negative Wires of Motor.
No forward/reverse function.
