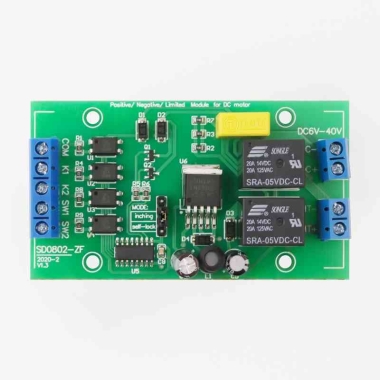

DC 6V 12V 24V DC Motor Forward and Reverse Controller 20A High Current with Limit Relay Driver Lifting Control Board

Description:

Motor forward and reverse controller is used to control motor work status to make sure motor can be precisely controlled.Applicable to occasions where the motor control requirements are increased.

Features:

1>.Low power consumption

2>.Long work time

3>.Automatic control

4>.Support DC motor forward and reverse

5>.Support Limit operation

6>.Work output LED indicator

7>.Support Self-locking Mode

Parameters:

1>.Item Name:TKS-M8 DC Motor Driver Module

2>.Model:TKS-M8

3>.Work voltage:DC 6V-40V

4>.Work mode:Trigger mode

5>.Work Temperature:-40℃~85℃

6>.Work Humidity:0%~95%RH

7>.Size:83*46*17mm

Function:

1>.Press button 'K1' motor forward rotation.Then stop if press button 'SW1'.Motor reverse rotation if press button 'K2'.

2>.Press button 'K2' motor reverse rotation.Then stop if press button 'SW2'.Motor forward rotation if press button 'K1'.

Application:

1>.Toy

2>.Intelligent robot control

3>.Smart car

4>.Curtain

5>.Mechanical control
