Product Description

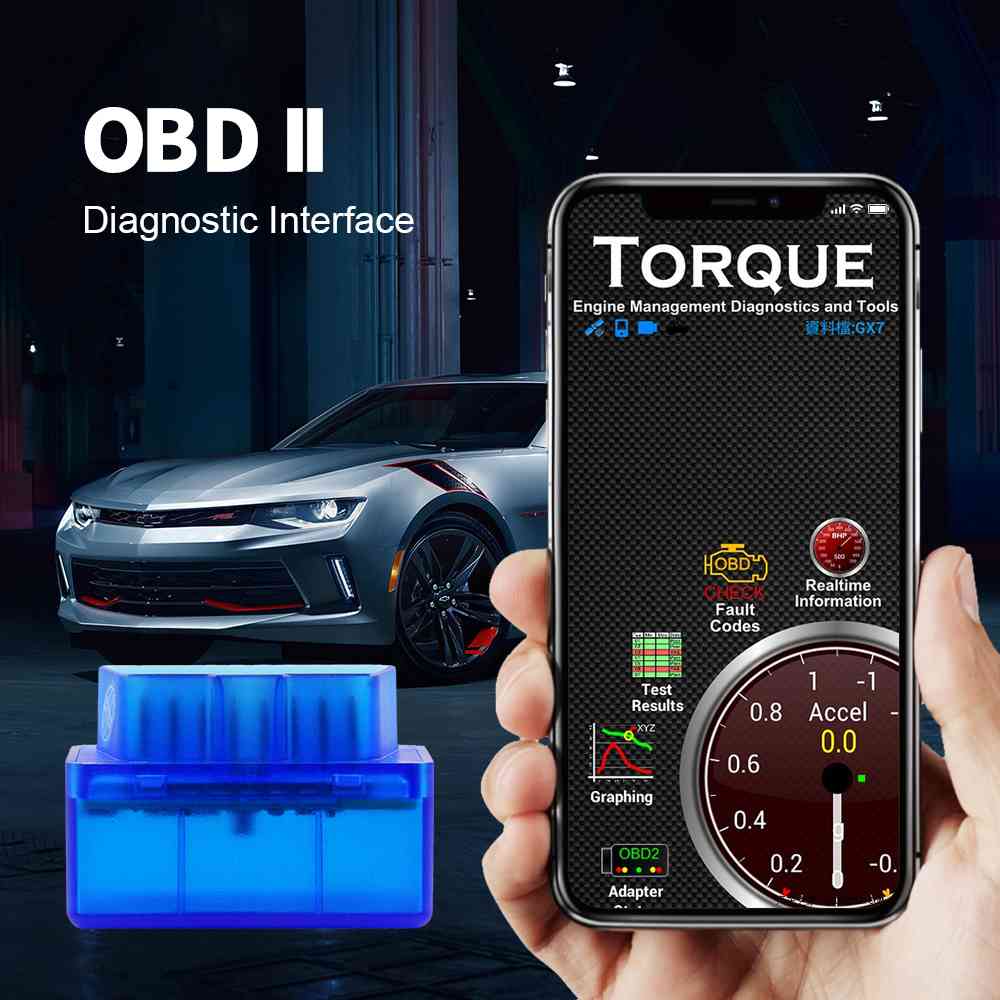

EKIY OBDII ELM327 Bluetooth V2.1 Android Car DVD Scanner Auto Diagnostic Tool Free Shipping with Tracking Number

Specifications:

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth. Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Bluetooth Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth.

Top 4 Reasons To Get Mini OBD2 Bluetooth Scanner:
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V2.1
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)

Supported protocols:
1.ISO9141-2 (5 baud init, 10.4 Kbaud)
2.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3.ISO14230-4 KWP (fast init, 10.4 Kbaud)
4.ISO15765-4 CAN (11bit ID, 500 Kbaud)
5.ISO15765-4 CAN (29bit ID, 500 Kbaud)
6.ISO15765-4 CAN (11bit ID, 250 Kbaud)
7.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Bluetooth Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Mini OBD2 Bluetooth Scanner Specifications:
Communication: Bluetooth 2.0
Master Chip: ST
Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ° ~ 85 °
Working Humidity: less than 60%
Size: 43mm * 25mm * 30mm

Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian .

Compatible software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBD Scope

Package List:
