W-Car WiFi Password: 12345678

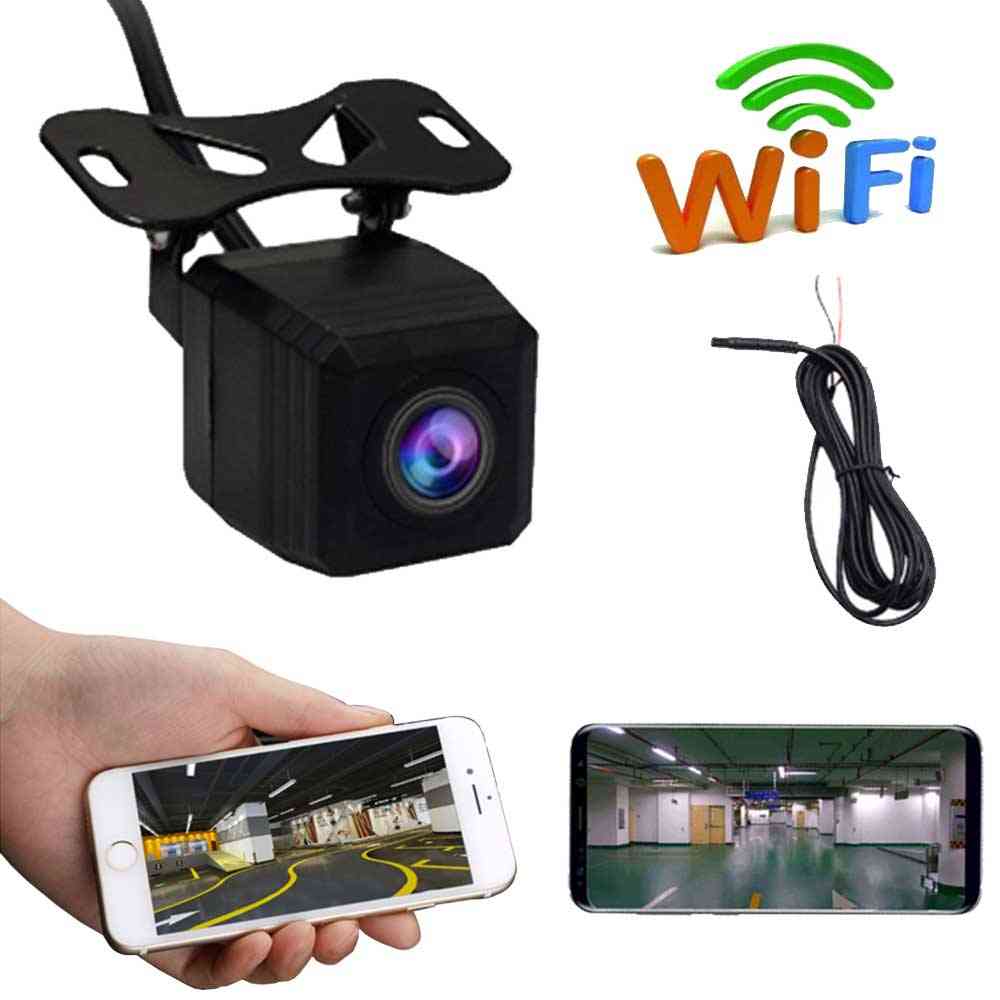

Wifi wireless car camera(Front&rear mount available)

Feature:

Transmission mode:Wi-Fi digital signal

Video compression:H.264

Antenna specification:Omni directional

Transmission distance:10M In car

Working temperature:-10C~+50C/-4F~+122F

Storage temperature:-20C~+60C/-4F~+140F

Working humidity:85% RH

Sensitization chip set:OV chips

Image pixel:1280*720P

Angle of view:170 degree

Minimum illumination:2.0Lu/F1.2

Transmission power:80mW

Power:DC 12V

Night vision distance:5~10M

Waterproof level:IP68

Fixed mode:hanging type

Receiver: iPhone/iPad/Android

With Parking reference line

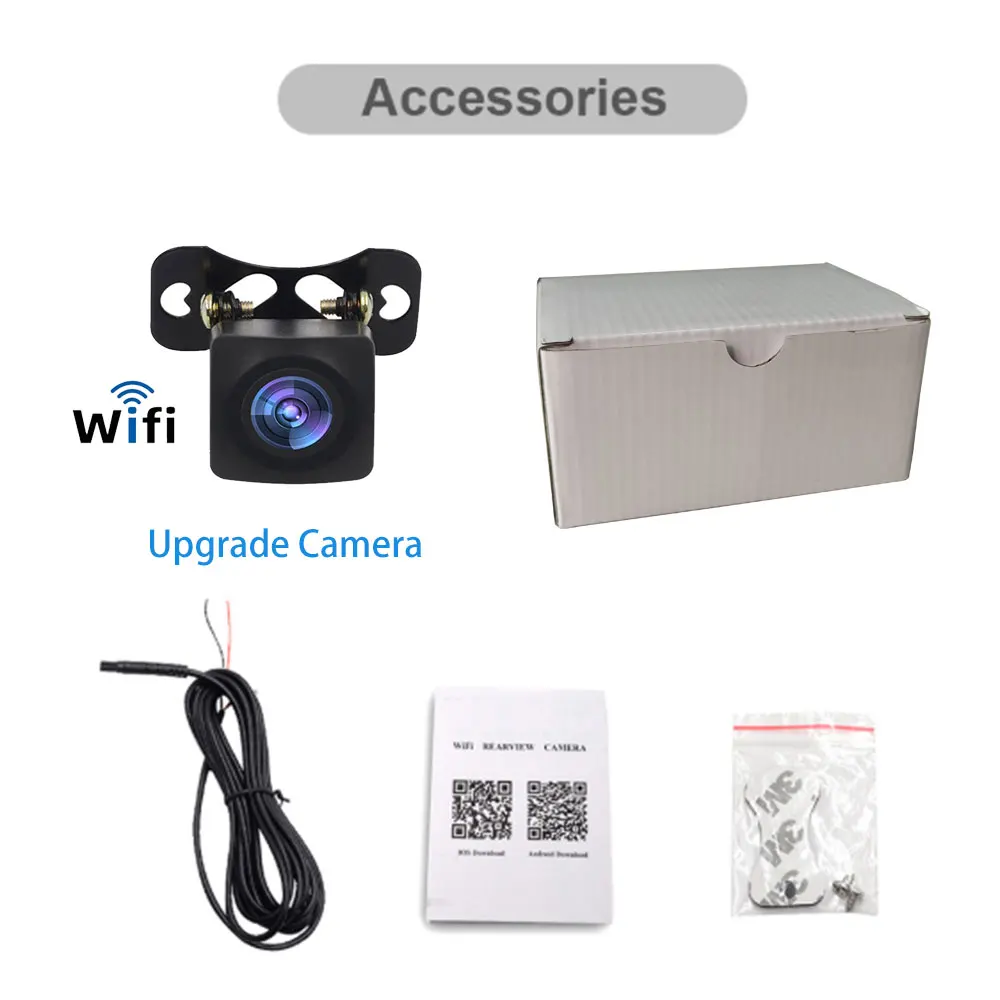

Product list:

wifi Camera*1
Screw*2
Extension cord*1
Specification*1
3M adhesive*1

Upgrade

Note : We will send the upgrage camera

How to connect

I. Product Introduction

●W-Car currently has a more advanced wireless reversing camera in the automotive industry,
The reversing image can be connected via WIFI from the smartphone APP and Android DVD
Then see the realization of vision, which is widely used in automobiles, buses, commercial vehicles,
Trucks, construction vehicles and other transportation vehicles. (Support Android /
iPhone / Android DVD phone)
●Reverse recording: Automatic reversing camera every time the mobile phone starts the application
The video can be saved in the smartphone when using the head or apk, and the cover of five cycles
Record your tour guide will record every turn on time to reverse the vehicle, you can lower
Lower your risk
●Smart device reception eliminates the complexity in the installation process and reduces cost
The purpose of this realization of intelligent reversing
●Low bit rate video coding technology, the image is clear and smooth, without delay
●Using American chipset low-power processing imports, fast response time, system
Stable and reliable
●High-definition digital camera, wide-angle lens, wide viewing angle

I. ProduMain Functionsct Introduction

●Intelligent video recording function Video recording and video sharing functions can be achieved by connecting smart devices with WIFI of the camera ●Functions of the intelligent electronic rearview mirror Through the device end to watch in real time, after entering the rear view video, you can watch in real time. View the reason behind the vehicle and view from the whole perspective ●Intelligent forward-looking functions It can be installed in front, rear, left and right visual blind area, and the software can be opened for real-time monitoring.

3 Download the application.

●Scanning and downloading QR codes; Open the scan window and scan the QR code of the product manual.

●Search for downloa
Apple devices enter the APP Srore search; W-Car  download

Android devices go into Google play search; W-Car  download

4. Use skills

●Terminal interface icon

● Android device use

After connecting to the WIFI of W-Car SSID, the APP video will pop up automatically. When 4G network is needed, click exit, and the connection between W-Car and the software background will be automatically disconnected.

●IOS old system usage

1.After software installation, set static IP; Connect to W-Car name WIFI,
2.enter the WIFI setting interface, remember the two lines of Numbers under "DHCP" (IP address. Subnet mask), click "static" here, and fill the two lines of Numbers under the static button (IP address. Subnet mask).
3.Click back to set successful. Static IP can be set to realize simultaneous communication between WIFI and 4G without affecting the phone's Internet access.

5. Product installation (very important, please read carefully)

①、First, turn off the on-board power supply, and it is strictly prohibited to power the camera without a good connection.
②、Determine the installation position of vehicle camera. (there are two installation methods)
●In the first installation method, select the position of the camera and place the power cord flat in the car. Adjust your viewing Angle, connect two power connectors, plug in the cigarette lighter, and press the switch.
●The second installation method, cut open cigarette lighter switch position of the wire, red and black two wire. Red power cord is connected to ACC power supply 12V+ positive position of vehicle fuse box. Black power cord is connected to negative GND wire harness of vehicle, which can be used when starting the vehicle.
③.Connect the power cord to the correct position, adjust the best Angle of view, and fix the support with 3M adhesive.

6. Troubleshooting

①. No image
Make sure the camera is connected correctly, open the WIFI list on your phone, and see if you can find the F-Car hotspot generated by the camera.
②. Background operation
You need to turn on the phone Settings and set it to run in the background.
