Voltage	12V 24V
Current	80A

Item specifics

Product Description

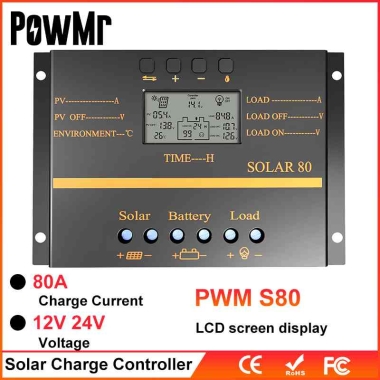

PWM 80A Solar Panel Charge Controller 12V 24V Auto LCD USB Solar Battery Charger High Efficiency Solar 80 Series PWM Regulator S80

Introduction：

This model is PWM 80A solar charge and discharge controller, fit for 12V and 24V lead-acid, Gel, Sealed, Flooded battery

For 12V battery, the max solar panel input is 24V600W(50A)720W(60A) 960W(80A)

For 24V battery, the max solar panel input is 48V 1200W(50A)1440W(60A) 1920W(80A)

Features：

★ LCD screen display

★ Easy operation interface

★ PWM charging mode

★ Parameter user can reset

★ A key to open and close the load

★ A key to restore the factory settings

★ Battery reverse discharge protection

★ Battery reverse polarity protection

★ Battery under voltage protection

★ Overload, short-circuit protection

★ Automatic temperature compensation function

★ USB 5V charging (for 500mA) for mobile phone

Product Parameter：

Model	S60	S80
Rated working current	60A	80A
Rated working voltage	12V 24V Auto
Solar panels voltage	48V(24V battery);24V(12V battery)
Float charging voltage(settable)	13.8V/27.6V
Low voltage protection(settable)	10.7V/21.4V
Low voltage recovery(settable)	12.5V/25.0V
No-load loss	≤25mA
Loop pressure drop	≤160mV
Charging mode	PWM mode
Cable	(20mm 2 )	(25mm 2 )
Working temperature	-10°C~60°C
Storage temperature	-30°C~70°C
Humidity requirements	≤90％
Dimension	128 mm×188mm×61mm
Mounting hole spacing	98 mm×178 mm --Φ5
Temperature compensation	-4mV/Cell/°C
