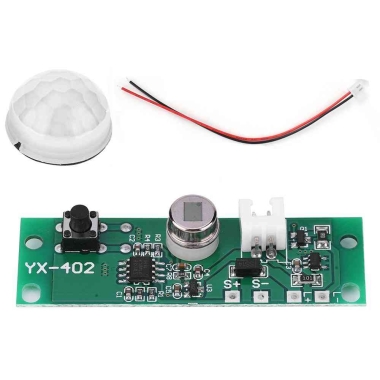

Solar Lamp Circuit Board Infrared Human Induction Wall Light Control Sensor Controller 3.7V

Feature:

1. The product has infrared human body sensing probe, sensitive to use

2. With three gear modes adjustable, you can adjust according to your own need

3. The sensing distance is 2-5 meters, which varies according to different ambient temperatures

4. The high quality solar lamp circuit board can fit for wall lamp

5. The control board is protected from overcharge and overdischarge when connected to a 3.7V battery, and the battery needs a protective board when connected to a 3.2V battery

Specification:

Item Type: Solar Lamp Circuit Board

Model Specifications: YX-402

Product Size: Approx. 19 x 59mm / 0.7 x 2.3in

Induction Method: Human infrared sensor

Sensing Distance: 2-5 meters (depending on the sensing ambient temperature)

Induction Time: 25 seconds

Battery Input: 3.7V / 3.2V

This control board is protected from overcharge and overdischarge when connected to a 3.7V battery. When the 3.2V battery is connected, the battery must have its own protection board

Three Gear Modes Are Adjustable:

1. Induction highlight + slightly bright

2. Induction highlight + light off

3. Light control

Package List:

1 x Module

1 x Connecting Cable

1 x User Manual
