Item specifics
-
Brand Name
PowMr
-
Origin
CN(Origin)
-
Model Number
MPPT-60A
-
Maximum Current
60A
-
is_customized
Yes
-
Certification
CE
-
Is Smart Device
YES
-
Application
Charger Controller
-
Application
Voltage Controller
-
Application
Lighting Controller
-
Application
Solar System Controller
-
Application
Solar Working Station
-
Charging mode
MPPT Maximum power point tracking
-
Battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithiu
-
The maximum PV input power
12V system (720W) 24V system (14
-
The maximum PV input voltage (Voc)
DC190V
-
name
mppt solar charge controller 60a
-
Rated output current
60A
-
type
mppt solar charge controller
-
Maximum Current
MPPT 60A
-
Voltage
12V
24V
36V
48V
-
Auto Solar Panel Battery Charge Regulator
LCD Display Solar Charge Controller
-
Enclosure
IP21
-
Item
PowMr MPPT Solar Charge Controller 60A
-
Cooling way
Forced Air Cooling
-
PV utilization
≥99% For 100% MPPT Technology
-
Size (mm)
214x115x50
-
Net weight(Kg)
1.38
-
Feature1
Solar charge controller
-
Feature2
Solar controller
-
Feature3
Mppt
-
Dispaly
Backlight LCD Controller
-
Feature4
Controlador mppt
-
Feature5
Charge controller
-
Feature6
Mppt charge controller

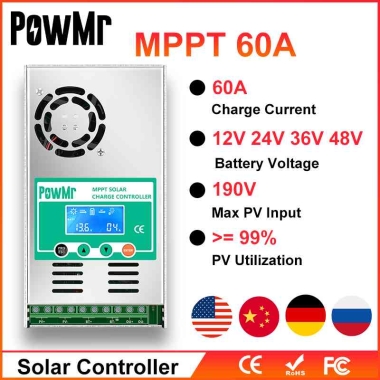

PowMr MPPT 60A LCD Display Solar Charge Controller 12V - 48V Auto Solar Panel Battery Charge Regulator For Max 190V DC Input HHJ-60A
MPPT 60A This machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 97%.
InverterUse Note：
1、The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements Of The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
2、For Details, Please Refer To The Manual Recommendation Or Consult Online Customer Service.PowMr Will Serve For You Everywhere！
3、About the Product We have optimized Warehouses and Overseas warehouses
And the delivery speed is faster than before.
Feature：
❶MPPT30A/40A/50A/60A solar charge controller
❷100% MPPT technology
❸Built-in DSP controller with high performance
❹Automatic switch for 12V/24V/36V/48Vbattery bank
❺3-stage charging optimizes battery performance
❻Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
Over-temperature protection
❼Troubleshooting promotion function.
❽Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc
❾Easy to be mounted
you can Put two pieces 60A in parallel, So total is MPPT 120A
Support unlimited parallel connection
Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
Package Including：
1PCS MPPT Solar Controller 60A
1PCS User Manual (English)
Product Parameter：
Model Name |
MPPT-30A |
MPPT-40A |
MPPT-50A |
MPPT-60A |
Charging mode |
MPPT Maximum power point tracking automatically |
Charging |
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
System type |
DC12V/24V/36V/48V Recognition automatically |
System voltage automatic recognition |
12V system (DC9V-DC15V) |
24V system (DC18V-DC29V) |
36V system (DC30V-DC39V) |
48V system (DC40V~DC60V) |
Soft start time |
≤1S |
Dynamic response and recovery time |
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) |
PV utilization |
≥99% |
Input specification |
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) |
24V system (DC37V~DC105V) |
36V system (DC50V~DC160V) |
48V system (DC72V~DC160V) |
The maximum PV input voltage (Voc) |
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (360W) |
12V system (480W) |
12V system (600W) |
12V system (720W) |
24V system (720W) |
24V system (960W) |
24V system (1200W) |
24V system (1440W) |
36V system (1080W) |
36V system (1400W) |
36V system (1800W) |
36V system (2100W) |
48V system (1440W) |
48V system (1700W) |
48V system (2200W) |
48V system (2800W) |
Output specification |
Selectable battery type(default is Sealed) |
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
Absorption Charging Voltage |
Refer to Batteries charging reference |
Floating Charging Voltage |
Refer to Batteries charging reference |
Overcharging protection voltage |
12V system (15V) |
24V system (30V) |
36V system (45V) |
48V system (60V) |
Rated output current |
30A |
40A |
50A |
60A |
Temperature Coefficient |
±0.02%/ centi-degree |
utomatic temperature compensation |
14.2V-(Max temperature-25 centi-degree)*0.3 |
Output voltage ripple-peak |
100mV |
Output voltage accurac |
≤±1% |
Input Anti-intrusion protection |
yes |
Temperature Protection |
75°C |
Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
Fan-on temperature |
>40 °C |
Fan-off temperature |
<35 °C |
Acoustic noise |
≤40dB |
Cooling way |
Forced air cooling |
Components |
Imported materials, Accord to EU standards, Industrial grade range. |
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides and fluorides |
Security Level |
Accord to CE, PSE, FCC, EMC, EN60950 |
Electromagnetic Compatibility |
Accord to EN61000, EN55022, EN55024 |
Enclosure |
IP21 |
Net weight(Kg) |
1.1 |
Gross weight(Kg) |
1.2 |
Product Pictures：
|
