1.Introduction:

Mini solar jar light circuit control board. Suitable for solar lawn lights, solar ceramic lights, solar landscape lights, and other solar products for circuit control. It can be connected to 1.2V Ni-MH batteries and 2V solar panels. This is a solar landscape light control circuit board that can be assembled into various shapes of mason lamp jar/lawn lamp/wall lamp/post lamp/string lamp/Christmas lamp/sunlight lamp/fluorescent lamp/advertising lamp/night lamp, etc., use this Various lamps assembled on circuit boards have been exported all over the world. This circuit board has the characteristics of small solar panel area, high LED drive efficiency, and long lighting time. The circuit board comes with a toggle switch, you can choose to emit white light or colorful, the white light has high brightness, the colorful light has rich colors and is highly ornamental!

Technical Parameters:

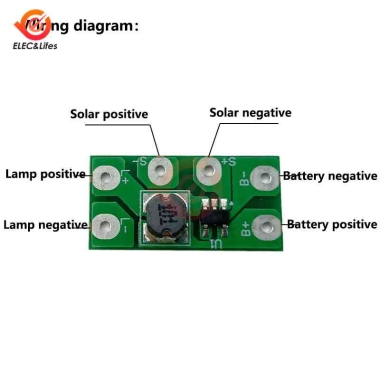

Solar panel: 2V /≤150mA Battery specification: 1.2V rechargeable battery Battery capacity: ≥600mAH LED current: about 10mA Circuit board size: 25mm long and 15mm wide Wiring instructions: S+ connected to solar anode S- connect solar negative B+ connects battery positive B- connect battery negative Solar ceramic light jar light lawn light circuit control board Comes with two LED lamp beads (1 high-brightness white light + 1 colorful changing color light) Built-in three-level switch (white light file + color light file + off file) Suitable for connecting 1.2V Ni-MH battery and 2V solar panel
