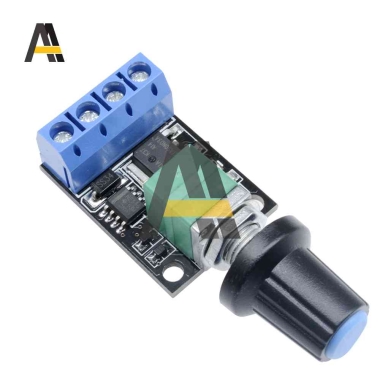

High Linearity 5V 9V 12V 10A PWM DC Adjustable Speed Regulator Control Switch Motor Speed Controller LED Dimmer Dimming Module

Details:

Maximum voltage: 16V

Minimum voltage: 5V

Continuous current: 10A

Maximum short-circuit current: 20A (less than 10 seconds)

Speed control mode: PWM stepless speed regulation, can also be used to adjust the light

Control method: Speed control potentiometer (open clockwise, continue to rotate clockwise from 1% to 99% speed)

Duty cycle: 0%-99% (0% position is the leftmost position of the potentiometer closed).

When the current is turned on, 0.002A (the governor will not have current without turning off for a long time).

Efficiency: The highest efficiency is as high as 98%.

Volume: length 3cm (without potentiometer), width 2cm, height 1.4cm

Weight: 10 grams

Note：

1. The speed controller is mainly used for motor speed control. If you are accustomed to LED dimming, you must ensure that the LED can also be powered directly. The dimming range of the speed controller is from the LED directly connected to the dimming range of the LED. It is completely extinguished between dimming. If the LED is directly connected to a power supply, it will be burned through the dimmer, and the dimming will be burned. This usually requires a series current limiting resistor. If you don't know how many resistors there are, you can contact customer service.

2. If you are using speed control (dimming) to make products, the store can provide it for free

Customized service, you can modify the shape of the circuit board and install it according to customer requirements

Mode, current and voltage parameters, add other functions, etc.

Package Included:

1 PWM speed LED dimming 10A / 5V-16V ultra-high linear band switch
