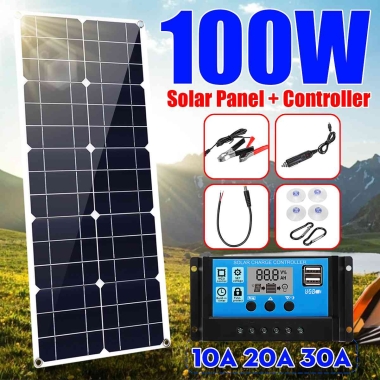

100W 1 Mono Solar Panel Dual 12V/5V DC USB Monocrystaline Flexible Solar Charger For Car RV Boat Battery Charger

EVA+PET at front panel, light-weight but durable.

USB and DC output interface for more purpose.

Features:

1.Equipped with 12V DC5.5x2.1 & 5V USB output interface.

2.Dedicated for 12V battery and 5V device charging.

3.High output 3000mAh USB, can full-charge an iX in1.5h in max power.

4.Mono-crystalline solar Cell with efficient up to 21%.

5.4x eyelet and free 2x carabiners for mounting more conveniently.

6.IP65 waterproof, suitable for outdoor using in light rain.

Specification for the Panel:

Pmax: 100W

Vpmax: 1

Max USB Regulator Output: 5V 3000mA & 2400mA

Max DC5.5x2.1 Regulator Output: 12V 2000ma

Cells: Monocrystalline

Material: EVA + PET

Size of Panel: 660x280x2.5mm

Size of Package: 680x280x35mm

Length of DC Output Cable: 110mm

Net Weight: 650G

About the Controller:

1.It comes witha controllerwhich is good for protecting the battery.

2.The controller is 12V & 24V adaptive.

3.Usually a 10A controller is enough for this panel coz the Ipmax is about 2.0A, if you wanna use the controller in other higher-powered solar system, you can choose 20A or 30A, too.

Application:

1.It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead-acid batteries.

2.Also for emergency lights, advertising lights, traffic lights, electric fans, solar pumps that`re equipped with a DC or USB interface.

Instruction:

1.Insert USB cable for standard 5V output to charge 5V device.

2.Connect DC alligator clip for standard 12V battery.

3.Connect DC cigarette lighter plug clip for car battery charging.

4.Note! DO NOT have the positive and negative anodes of the Alligator clip to touch or connect to each other, or it will cause short circuit and burning.

Package Include:

1x 100W Panel

2x Carabiners

4x Suckers

1x 12V Alligator Clip Power Cable

1x 12V Cigarette Lighter Plug Power Cable

1x 10A Solar Controller

2x DC Adapter Cable

NOTE:

The Junction Box of this panel is mounted on the Back! So it`s not suitable to be glued on the roof of the vehicle.

CAUTION:

1.Keep it away from strong corrosive objects!

2.Don`t have hard objects scratch the surface!

3.Don`t bend it over 10° though it`s flexible coz it`s small size!

4.Don`t try to refit the circuit of the without authorization coz it`s not a DIY panel, or it may cause the product damage!Please do not

5.Don`t place the junction box side under heavy rain coz it`s only IP65 waterproof!
