WYOBD M5 Car HUD Head Up Display OBD2

Notice:

1.Car production year (before 2008 are incompatible with HUD)

2.If you are interested in our products, and the model is before 2008, or you don't know whether your car can be used, you can enter the store and contact customer service.

• The original car is not damaged, the smart is started to stop with the car；

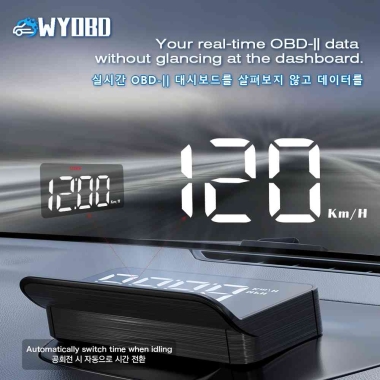

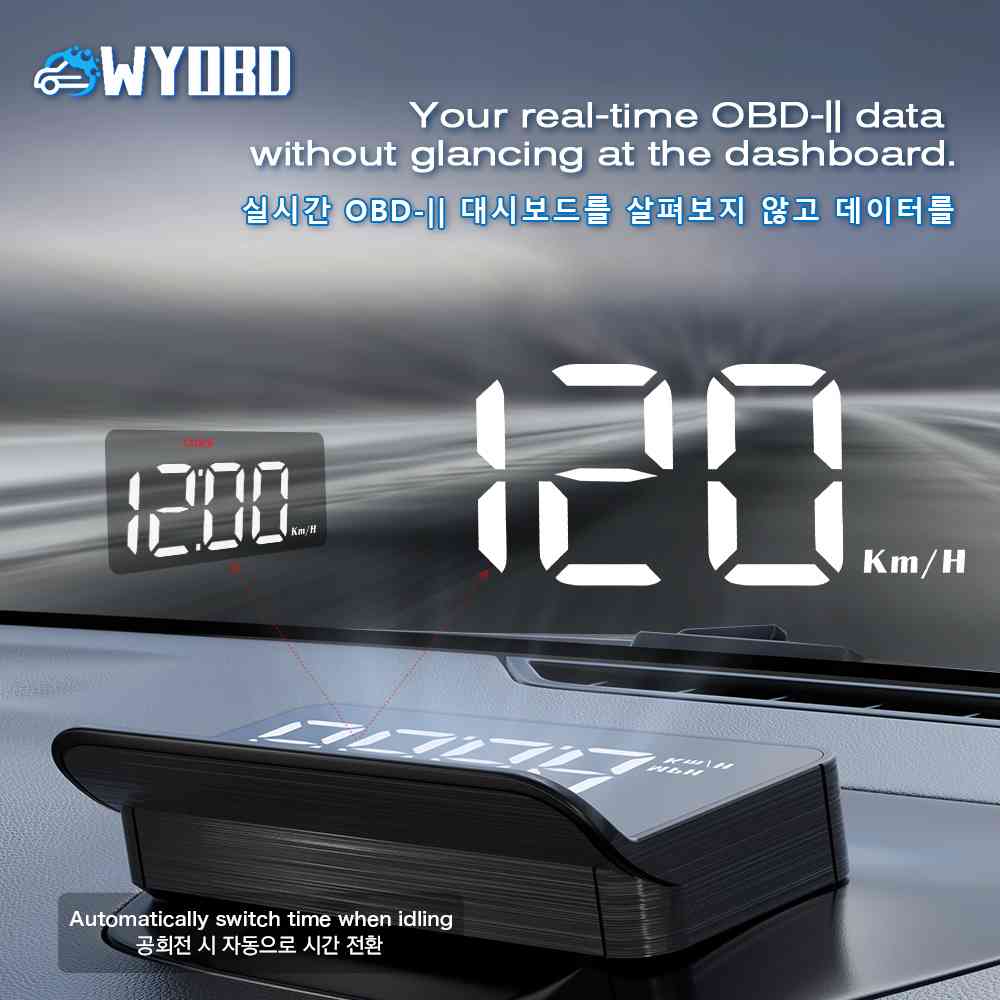

        HUD works: Receive the data from the car and display it on the machine.

Car Speedometer

Displays Driving Datas On The Front Windshield when you are driving fast

Water Temperature Alarm

The normal water temperature of a car engine while driving is 80°C to 95°C.Don't let's your car engine too hot.

Light Sensor

Automatically adapt to the light sensitivity, and the brightness is changed by the environment.

Products Details

5 Alarm Functions

1.RPM alarm:  alarm after the speed reaches the set default value of 7500 rpm.
2.Overspeed alarm:  alarm when the vehicle speed reaches the set default value of 150KM/H.
3.Voltage alarm: alarm when voltage is lower than the default value of 10.0 volts.
4.Fatigue driving:  Reminder after continuous driving for more than 4.0 hours by default.
5.Water temperature alarm:  when the water temperature is higher than the default value of 120 degrees.

How to use it

A: Short press‘M’
Switching voltage,Water temperature,Speed,
Enter the setting mode to switch the menu value and parameter value.
Long press‘M’
Vertical long Press in 5 seconds: enter into setting menu(menu 0-14),after finish adjustment,vertical long press in 3 seconds to save it and exit

B: Short press ‘-’
Decrease the menu or parameter value after entering the setting.
Long press‘-’
Turn off the buzzer,press and hold again for 3seconds to turn on the buzzer.

C: Short press‘+’
Increase the menu or parameter value after entering the setting.
Long press‘+’ The lights will be all on,and the fault code is eliminated,long press again to exit,all on.

D: Power switch:Long press to turn off,Long press again to turn on.

E: OBD port

1. RPM=the rotational speed of the engine.
   KM= Travel distance
   ℃= Water temperature in Celsius
   M= Distance travelled miles
   °F= Fahrenheit
   A⁺= Accelerated speed measurement
   COLOCK
   MIN= Driving time
   V =Battery Voltage
   L/100KM= Fuel consumption Liter/100
   kilometers
   L/H =fuel consumption Liter/hour

2. Lightsensor

3. KM/H= Kilometers/hour, MPH= Miles/hour

4. Multifunction display

Automatic switch

Auutomatically turns on and off as the car starts and stops.

Simple Installation:

step 1：Plug in OBD socket connector
step 2：Insert the wire into the A-pillar sealing strip
step 3：Connect OBD interface to HUD

Buyer Shows

HUD installation

1. Ensure your vehicle is OBD|| compatible or EOBD.

A. Check around the area under the steering wheel for an OBD plug.

B. Contact your vehicle manufacturer or search online.

C. Open the bonenet and look for a OBD|| compatible sticker(this is NOT on all OBD|| compatible

    cars,therefore isn't deciding factor)

2. Locate the 16 pin diagnostic link (see picture ).

This is usually located in the area under the steering wheel.Detail steps:

1,put non-slip mat;

2,put HUD on non-slip mat;

3,connect OBD cable with car OBD2 interface;

4,connect the other side of OBD2 cable with HUD ,and then start the engine;

5,stick the reflection on windshield.

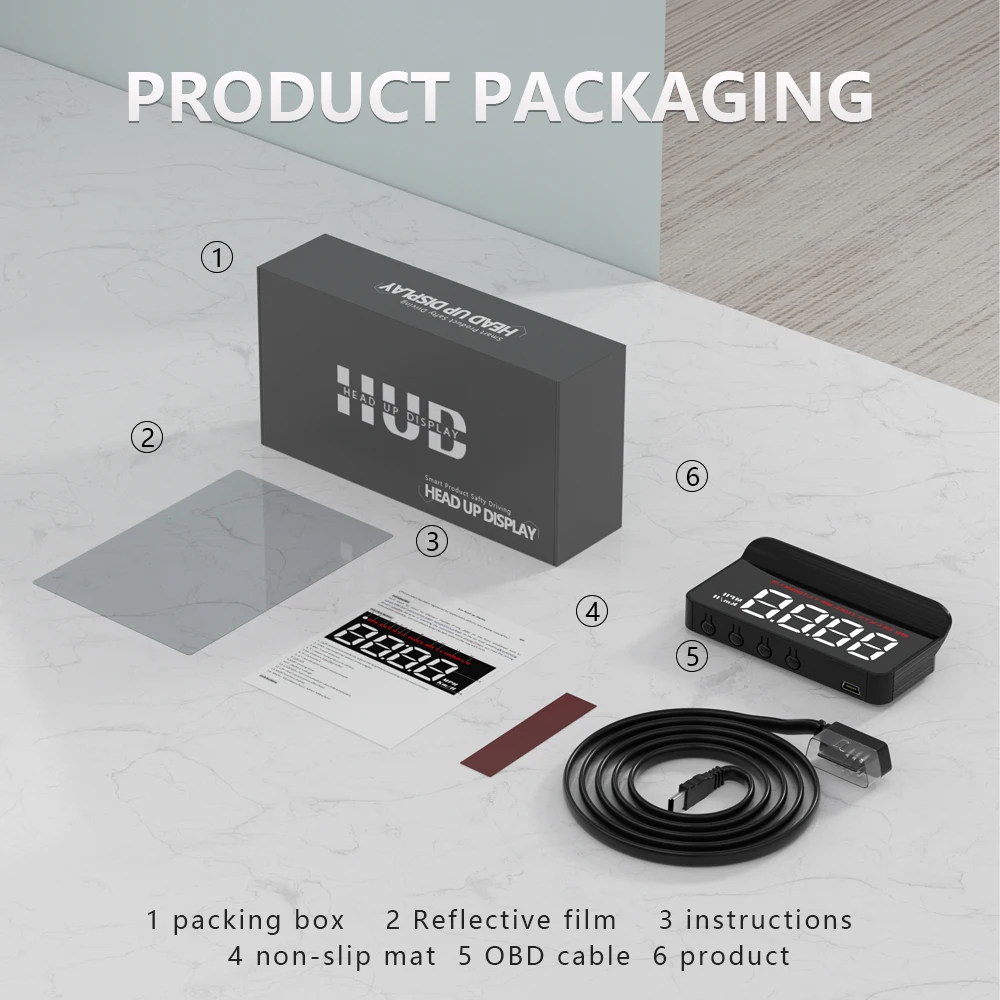

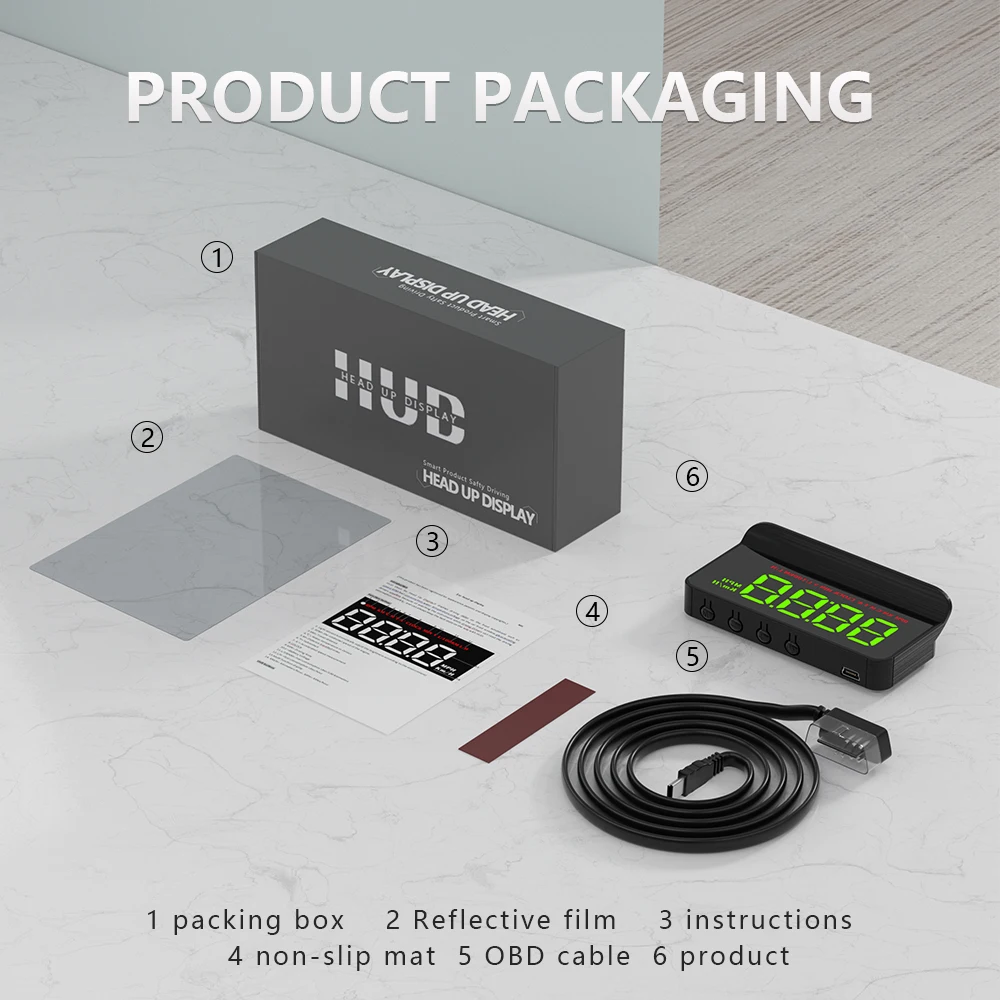

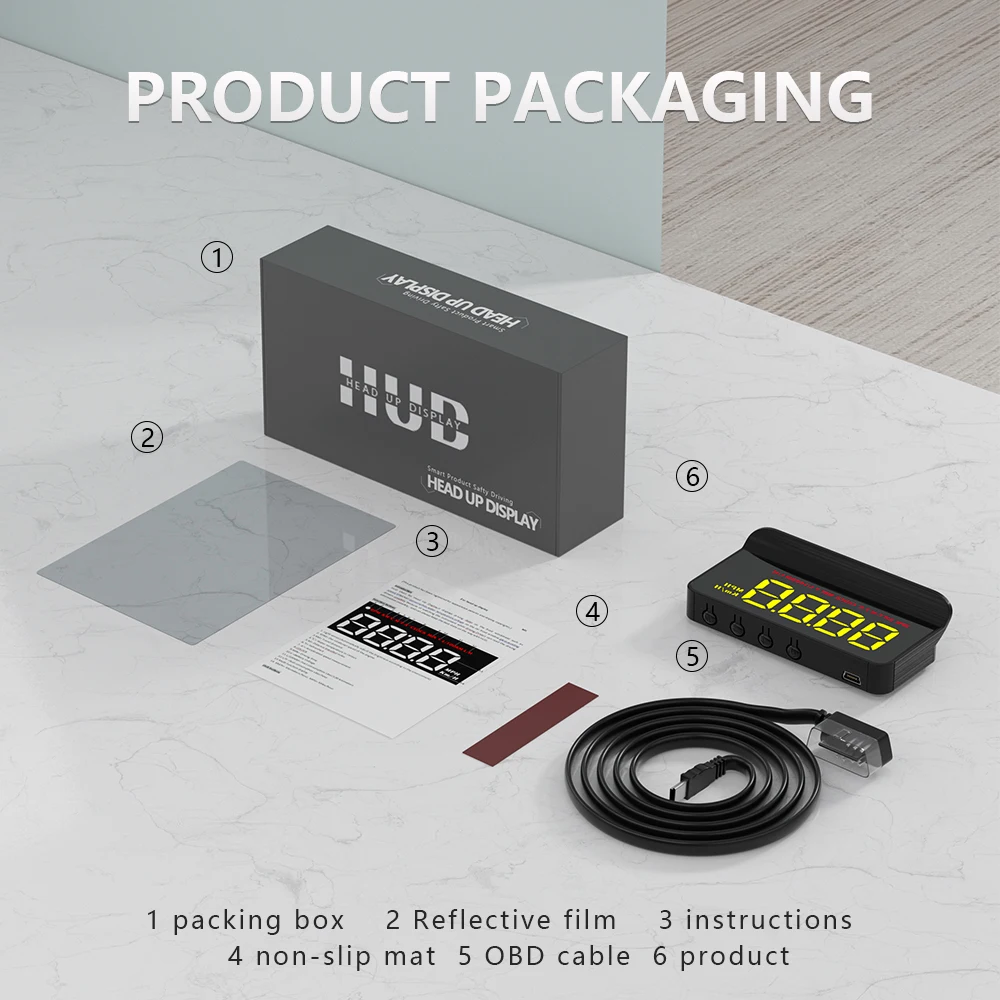

Product Accessories：

1*packing box                  1*reflective film               1*instruction
1*non-slip mat                 1*OBD cable                    1*product
