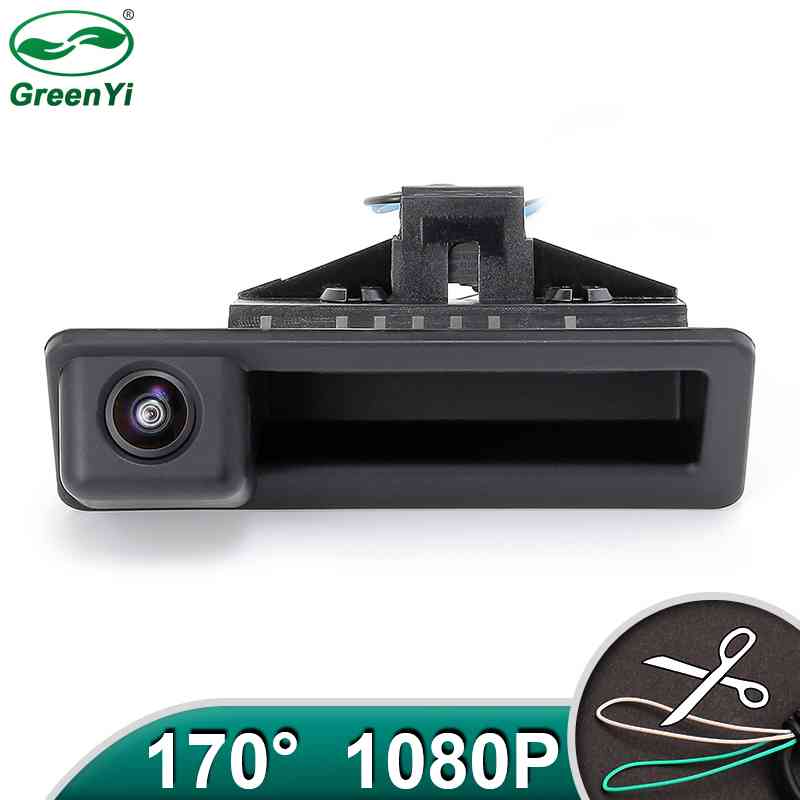

Vehicle HD AHD 1080P Fisheye Lens Car Reverse Backup Trunk Handle Camera For BMW 3 Series 5 Series X5 X6 E46 E39 E60 E70 E82 E90

Technology Characteristics:
* AHD technology can high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Support both AHD and CVBS video signal, the rear view camera can work with both AHD Android monitors and all CVBS TFT monitors.
* Highly integrated 2053HD chip, HD 1080P Pixel. 170 degrees Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity. 2020 Year New high-definition quality products.

3 Camera Chips Option :

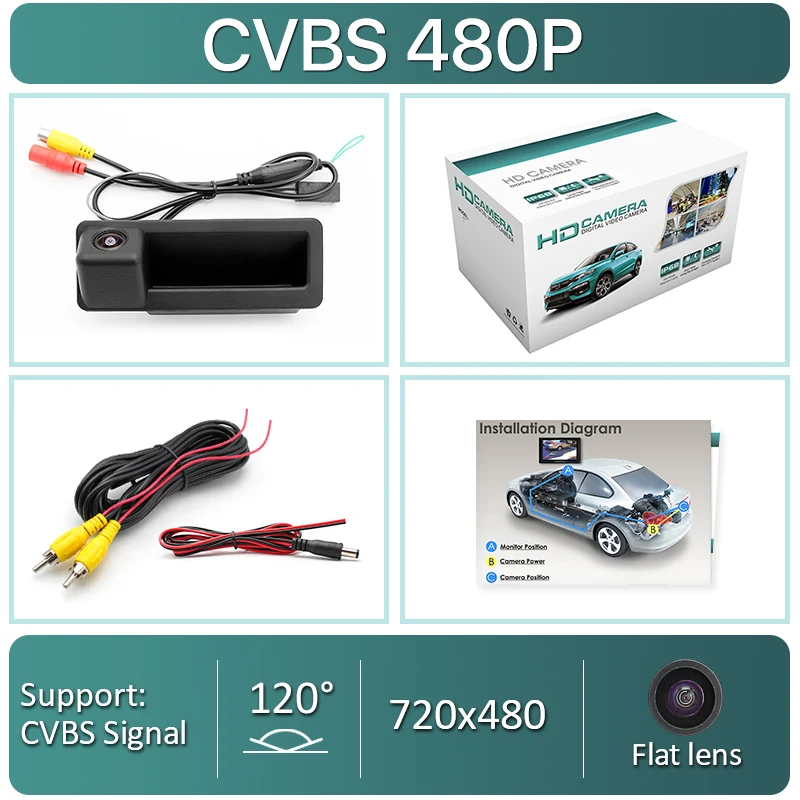

Note: Option "CVBS 480P" is no fisheye lens and AHD signal function.

About AHD1080P options:

Please check whether the Android unit supports AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

ATTENTION: According to our experience, some cheap Android head units has the software setting for AHD video signal , But the truth is they don't have AHD chips , so don't support AHD 1080P at all. If so, then you can only apply CVBS video signal. We recommend buying CVBS/AHD 720P camera. It is better compatibility for all monitors and android stereo unit .

Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:

How do I know the camera fit for my car?

1. Please check the following model table

2. Please check if the size is suitable

( If you car can meet above conditions, then it will be fit. )

>> Support AHD/CVBS video signal control :

Through Video signal control, it can support CVBS and AHD Signal Displays.
* "CVBS720P-AHD720P" camera : ( CVBS )→Cut the white wire→( AHD )
* "AHD1080P" camera :
( AHD1080P 1920x1080 175° )→Cut the white wire→( CVBS 1280x720 125° )

>> Support parking reference line switch on/off :

* Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.

>> Fisheye Lens 170° View Angle :

* Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

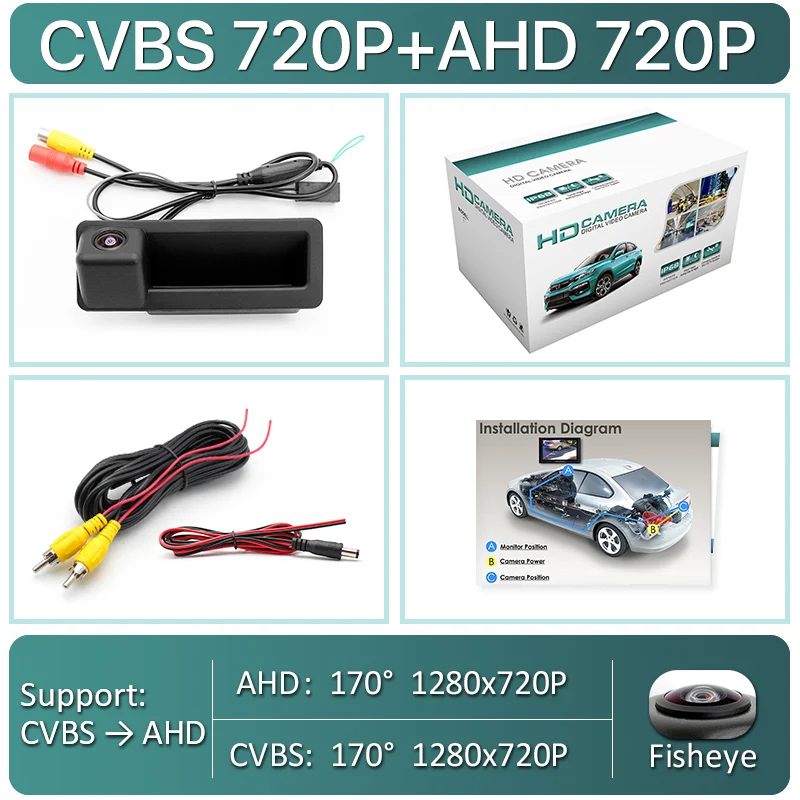

> Option "CVBS720P-AHD720P" Display effect:

Installation Location:

>> Camera Feature :
* Chips components : HD Sony/OV2053
* Viewing angle: Real 170 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P,
* AHD: 1920x1080P or 1280x720P.
* Signal format: NTSC or PAL
* Image resolution: 130W or 200W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68
* Working power supply: DC12V~24V /2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

>> Package list
1. CVBS/AHD Rear view camera
2. Package Box
3. 6M video cable
4. Power cable
5. Manual

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to
