Software VersionWindows 95
98
ME
NT4
2000
XP or 7 (32bit system)
Item TypeCode Readers & Scan Tools
CertificationCE
LanguageEnglish
Software UpdateNo
SKUJUM600106
ChipCH340
Product Description

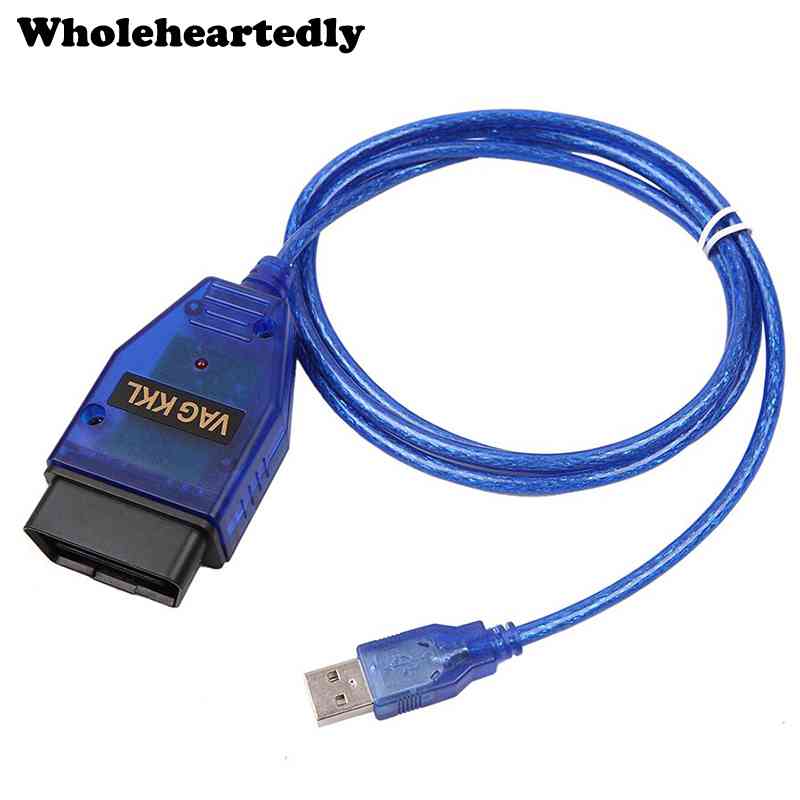

New Arrival VAG COM 409.1 Vag KKL OBD2 USB Cable Diagnostic Scan Tool Interface For Audi VW SEAT SKODA Vag kkl Wholesale
Description:
Cable length: 140 cm / 55.12 inches
Material type: Plastic and mental
Chip:CH340
Features:
Revised adaptation screen to support the much longer long adaptations now appearing in some control modules
Much improved documentation (label files) for many older cars
Read and clear manufacturer diagnostic trouble codes
Existed 3 different protocols with same OBD2 connector includs ISO / KWP, VPW, PMW
View and change control module default settings
Accessories type: Others
Avaliable Color : Blue
Save on expensive garage fees by diagnosing your car's faults
Don't fork out for the expensive VAG-1551 or VAG-1552 scan tools - purchase this cable for a fraction of the cost and download the VAG-COM software instead
Introduction:This VAG_COM OBD II interface enables you to connect your PC to your car so that you can troubleshoot any problems in your vehicle by reading the Diagnostic Trouble Codes (DTC's) that appear when the 'check engine' light is showing.Workable ModelsThis diagnostic cable is usable for ISO9141 and KWP2000 transmission protocol (16pin OBD II style Data Link Connector).Reference DataThis cable can not work if your car uses a protocol/bussystem like VPW, PWM or CAN-bus.Terminal K = Bus of communicationTerminal L = Ignition for waking up car computing system (ECU: Engine Control Unit)Existed 3 different protocols with same OBD2 connector incl. ISO/KWP, VPW, PMWThis K/L Diagnostic interface & cables work on ISO/KWP (Key Word Protocol) launched after 1996 only.Supported also ISO9141 protocolThe Cables may work with some versions of the Carsoft, but carsoft used a lot of different interfaces during the different versions and also had some custom interfaces.Features:Supports VAG-COM version 409.1 or olderFully automatic support for 2002+ Audi models with dual K-linesHigh quality precision moulded diagnostic connector made to fit all Audi/VW vehiclesLED light shows cable communication statusFully CE approvedIn-built electronic protection from 'aftermarket radio problems'This purchase is for one 145cm long, 16 pin OBD diagnostic socket to RS232 9 pin interface cable with USB connectorAbout VAG-COMVAG-COM is a Windows based diagnostic software for Volkswagen, Audi, Seat and Skoda vehicles that emulates the functions of expensive professional scan tools. It is:Fully compatible with all models of the above makes of car or van produced between 1996 and 2006 (see below for more information on earlier models)Compatible with the above makes of car with CAN connectionHas a data base of more than 7500 fault codes and measuring block textsCan use the new 7 digit PIN/SKC codes to match new keys in all immobilizer-equipped W, Audi, Seat and Skoda modelsIs my Car VAG-COM Compatible?VAG-COM will work with most Volkswagen and Audi models sold worldwide from 1994 onwards. It will also work with most late-model SEAT and Skodas sold outside of N. America.See below for full list. It does not work with diesel engines. If your VW or Audi has a 16pin OBD II style Data Link Connector then VAG-COM will work. If your car has the old 2x2 Data Link Connection check to see if there is a wire going to each pin - if there are 4 wires VAG-COM should work – if there are only 3 it won't.Suit or not:Make Model Connector CompatibleAudi80 2X2 YES100 2X2 YES200 2X2 YESA2 16 Pin YESA3 16 Pin YESA3 (8P) 16 Pin NOA4 (B7) 16 Pin NOA4 Cabriolet 16 Pin YESA6 16 Pin YESA6 (C6/4F) 16 Pin NOA8 16 Pin YESA8/A8L (D3/4E) 16 Pin NOQ7 16 Pin YESS2 16 Pin YESS3 16 Pin YESTT 16 Pin YESSeatAlhambra 16 Pin YESAltea 16 Pin YESAltea (5P) 16 Pin NOArosa 16 Pin YESCordoba 16 Pin YESIbiza 16 Pin YESInca 16 Pin YESLeon MK 1 16 Pin YESLeon MK 2 16 Pin YESLeon (1P) 16 Pin NOToledo 16 Pin YESToledo (5P) 16 Pin NOSkodaFabia 16 Pin YESFelicia 16 Pin YESOctavia MK 1 16 Pin YESOctavia MK 2 16 Pin YESOctavia (1Z) 16 Pin NOSuperb 16 Pin YESVWBeetle 16 Pin YESBora 16 Pin YESCaddy 16 Pin YESCaddy (2K) 16 Pin NOCorrado 16 Pin YESGolf MK 2 16 Pin YESGolf MK 3 16 Pin YESGolf MK 4 16 Pin YESGolf MK 5 (1K) 16 Pin NOGolf Plus 16 Pin NOJetta MK 3 16 Pin YESJetta MK 4 16 Pin YESJetta MK 5 (1K) 16 Pin NOLupo 16 Pin YESPassat MK 3 16 Pin YESPassat MK 4 16 Pin YESPassat MK 5 (B6)16 Pin NOPassat MK 6 (B6)16 Pin NOPhaeton 16 Pin NOPolo MK 3 16 Pin YESPolo MK 4 16 Pin YESTouran 16 Pin YESTouran (1T) 16 Pin NOTouareg 16 Pin YESTransporter T3 16 Pin YESTransporter T4 16 Pin YESTransporter T5 16 Pin YESPackage Included:
1 x USB OBDII Car Diagnostic Scanner
1 x CD Driver (if the CD is broken during the shippment,we could send the driver by email)
Note : this product comes without retail boxes,We put in a safe packaging.
