Item specifics

Brand Name TOPGNSS
Model Name GN-2630G
GPS type Receiver & Antenna
Model: GN-2630G (TTL)
Output level: UART
Working mode: GPS+GLONASS(default)
Working voltage: 3.3-5.4V 3.3-5.4V
weight: 8.5
chip: M8030-KT
FLASH: 4M
band: GPS L1 GLONASS L1 SBAS L1
cold start: 28s
hot start: 1s
channels 72
dimension: 30*26*8.5mm
Refresh rate: 1HZ (default)
connector: 1.0mm spacing 6pin connector
Working status indicator: red flashing to complete
PPS PIN YES

Product Description

Product features:

UART output protocol GNSS multi-mode design, support GPS+GLONASS and GPS+ Beidou Positioning mode switching Built in FLASH can be configured to save output parameters Using UBX-8030-KT chip design 6PIN pin pad Baud rate: 9600 (default) Location mode: GPS+GLONASS (default) GPS+BEI DOU mode can be set UBX-M8030-KT chipset Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz Accepts the signals of up to 72 satellites at the same time Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS) Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG USB specification 2.0 Auto Baud Rate up to 115200 bps Update rate: Single GNSS: 18 Hz (e.g. GPS solo) Multi GNSS: 10 Hz (e.g. GPS + GLONASS) Sensibility max. -167 dBm IPX6 protection class Magnetic, non-slip on the bottom LED-indicator for GPS-status Operating temperature: -40 ° C to 80 ° C Power supply: 5 Volt Current consumption: max. 50mA Cold start in ca. 26 seconds Hot start in ca. 1 second Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS

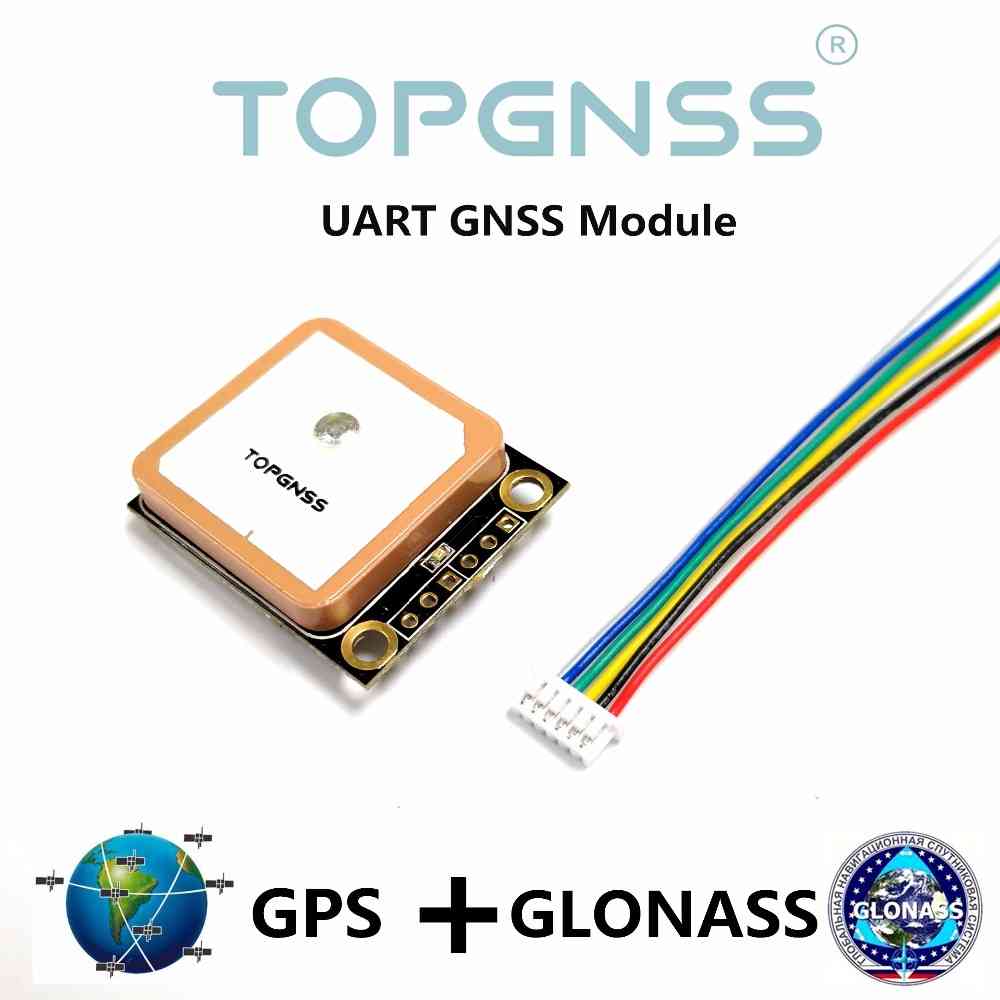

GN-2630G GNSS MODULE

GPS+GLONASS

IMG_20180612_153013__

6PIN 1.25 connector with 2.54 pin pitch compatible design, easy to use test.

PIN definition:

Outline dimension:

Dimensions (LxWxH): 26 x 30 x8.9mm

TOPGNSS GNSS Module GN-2630G Performance
GNSS CHIP	M8030-KT
frequency	L1, 1575.42MHz,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,
protocol	NMEA 0183 v2.3,4.x GPS/QZSS L1 C/A,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS, EGNOS,MSAS , Support Galileo E1B/C. Default GPS+GLONASS mode Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT binary and NMEA Command
Available baud rate	(Default 9600) Can be set 1200,4800,19200,38400,57600,115200 bps
Receiving channel	72
Sensitivity	Tracking sensitivity:-160Dbm Capture sensitivity:-157dBm
Cold start	29s average
Warm start time	28s average
Hot start time	1s average
Precision	HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
maximum height	18000 Meter
Maximum speed	515 m/s
Maximum acceleration	4G
Update frequency	1-10Hz(default1HZ
A-GPS	AssistNow on-line and off-line
Working output level
output level	Output TTL level
Physical characteristics
PIN	6 pin 1.25pitch GND,VCC3.3-5V.TX.RX.PPS.EN
Dimensions	30mm 26 mm 8.5mm
Operating Voltage	3.3V-5.0VDC ±5%
weight	8.5g
Connector form	1.25 6 PIN
Cable length:	15 CM
Operating temperature	-40 to 85
Storage temperature	-40 to 85
