Item specifics

Brand Name TOPGNSS
Model Name GG-1802
GPS type Receiver & Antenna
GNSS chip 8030-KT
UART port interface TTL [default]
Data rate: 9600[default]
Wide voltage range: 3.3-5.4V
Antenna size 18*18*4mm
Refresh rate 1HZ
Module volume 18*18*8.2mm

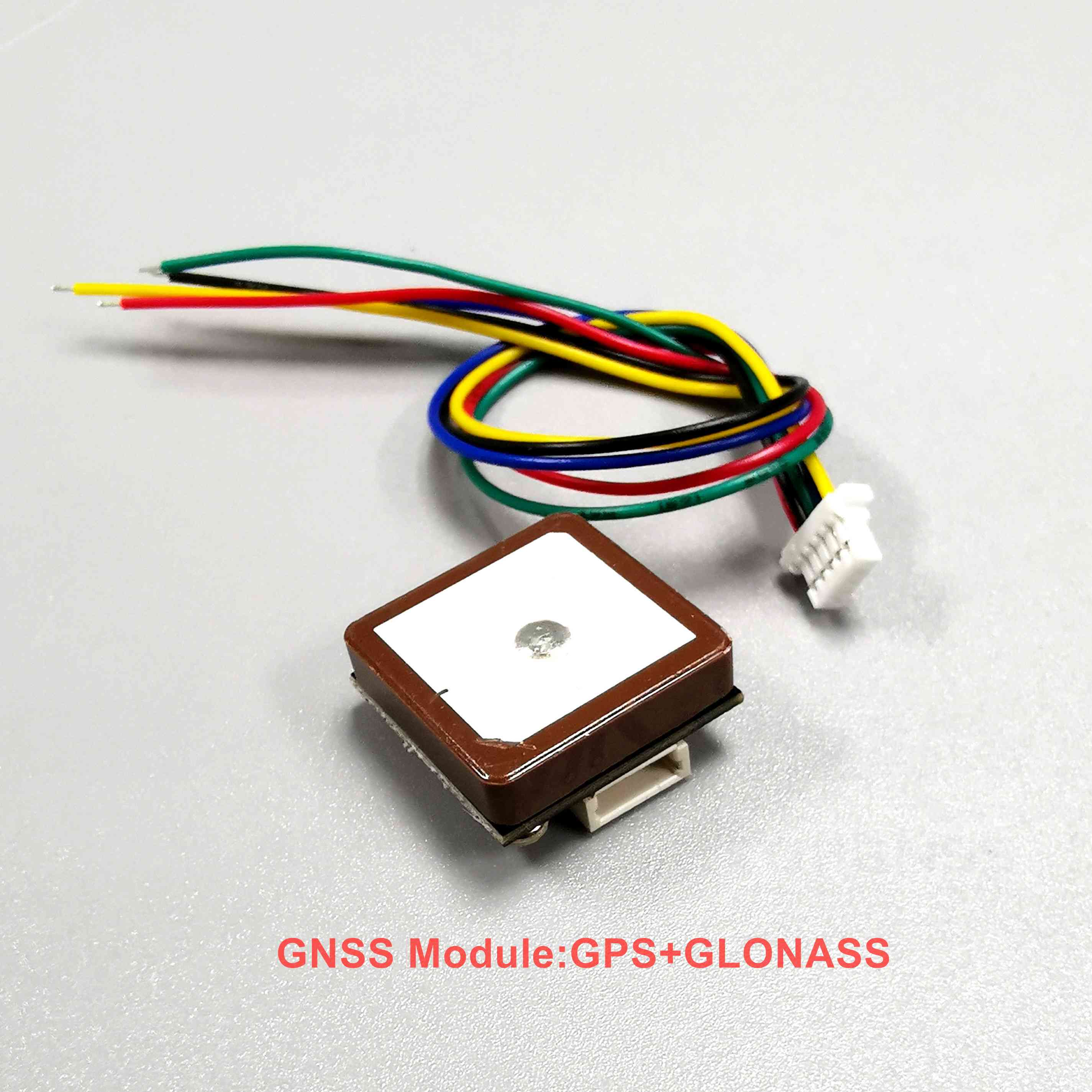

Product Description

TOPGNSS.STORE Promotion 1000PCS.

new products, STOTON High quality SMART GNSS module GG-1802(ttl) The latest multi-GNSS platform firmware FW 3.01. FW 3.01, besides retaining the original functions of GPS, GLONASS, BeiDou, QZSS and SBAS, is now adding Galileo support, which can track 3 satellites at the same time, and can also use all SBAS and QZSS enhancement systems at the same time. GNSS default operating mode: GPS + GLONASS dual mode High-quality components designed to ensure that the receiver performance! Product highlights: 1. M8030-KT GNSS CHIP AND 18*18*4mm high sensitivity GPS antenna Design 2.Using 0.5PPM KDS high precision TCXO 3. built in RTC crystal and skin capacitance faster thermal initiation 4.1-10Hz location update rate 5.Support the positioning of PPS indicator: positioning success after flashing. 6.Support Online AssistNow and Offline AssistNow and other A-GPS services 7.GPS, GLONASS SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine

Default output: 1HZ

(can be set 5-10HZ) The default baud rate: 9600 (can be set 19200 4800 38400 115200)

Small volume GPS module, including connector weight: 7.2g. Size only 18*18*8.2mm

Internal integrated LNA low noise amplifier circuit design, integrated FLASH, can be easily integrated in The handheld wearable GPS GLONASS equipment and the aeronautical UAV equipment are required for volume. Support refresh rate: 1-10Hz settings save Support baud rate: default 9600 (save settings: 4800-38400-57600-115200) Product features: UART (TTL)output protocol GNSS multi-mode design, support GPS+GLONASS+GALILEO and GPS+ Beidou+GALILEO Positioning mode switching Built in FLASH can be configured to save output parameters Using 8030 chip design 5PIN pin pad Baud rate: 9600 (default) Location mode: GPS+GLONASS (default) GPS+BEI DOU mode can be set M8030-KT chipset

TOPGNSS GNSS Module GG-1802 Performance
GNSS CHIP	M8030-KT
frequency	L1, 1575.42MHz,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,
protocol	NMEA 0183 v2.3,4.x GPS/QZSS L1 C/A,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS, EGNOS,MSAS , Support Galileo E1B/C. Default GPS+GLONASS mode Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT binary and NMEA Command
Available baud rate	(Default 9600) Can be set 1200,4800,19200,38400,57600,115200 bps
Receiving channel	72
Sensitivity	Tracking sensitivity:-160Dbm Capture sensitivity:-157dBm
Cold start	29s average
Warm start time	28s average
Hot start time	1s average
Precision	HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average Velocity: 0.1 m/s Timepulse signal: RMS 30 ns
maximum height	18000 Meter
Maximum speed	515 m/s
Maximum acceleration	4G
Update frequency	1-10Hz(default1HZ
A-GPS	AssistNow on-line and off-line
Working output level
output level	Output TTL level
Physical characteristics
PIN	5 pin 1.0pitch VCC 3.3-5V.GND .TX.RX.PPS.
Dimensions	18mm 18 mm 8.2mm
Operating Voltage	3.3V-5.0VDC ±5%
weight	5.5g
Connector form	1.0 5 PIN
Cable length:	15 CM
Operating temperature	-40 to 85° C
Storage temperature	-40 to 85° C
