Item specifics

Brand Name TOPGNSS
Origin CN(Origin)
Model Name AN-502G
GPS type Receiver & Antenna
Cable length: 2.0meters
GNSS working mode: GPS+GLONASS
Frequency Range 1575.42MHZ 1602MHZ
Waterproof rating IPX6

Product Description

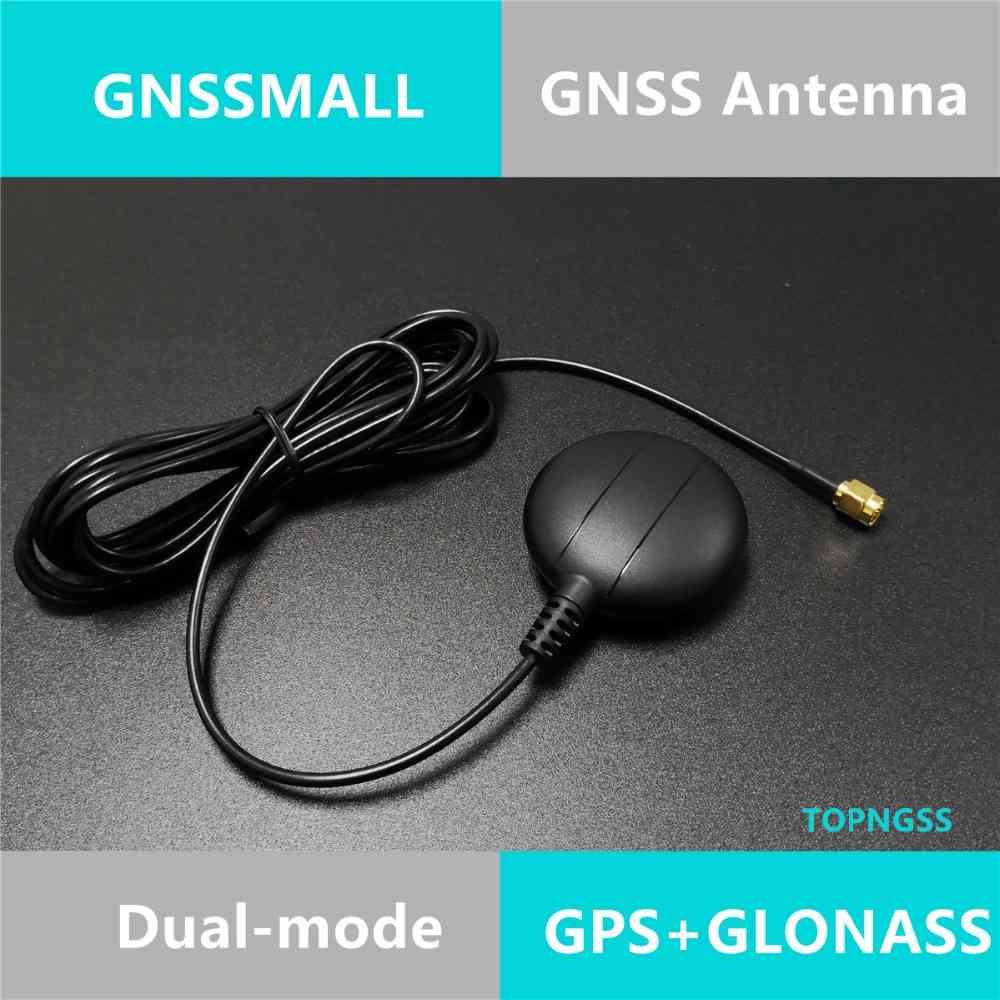

The TOPGNSS AN-502G GNSS antenna is a dual-mode GNSS antenna that supports GPS L1 and GLONASS L1 to meet the requirements of high-precision automotive positioning and navigation positioning applications. The antenna adopts filtering plus two-stage LNA amplification design to ensure the normal operation of the harsh electromagnetic environment. Small size and light weight. Waterproof rating IPX6

Frequency: 1575.42MHZ, 1602MHZ

weight: 60g
cable: 2.0m
connector: SMA male Straight connector
gain:28dbm
Noise figure:1.5db
power:3.0V-5.0V,typical 3.3v
Power consumption:35mA
length:2.0m
Operating temp:-40 °C ~ +85°C
Storage Temp:-40°C ~ +85°C

（RF output Connector） SMA-J

RG174 Cable length: 2.0 meters

Fixing method: N35 magnet plus 3M sticker

Packing list: GNSS antenna 1PCS

Friendly reminder: The antenna shell has two specifications of mirror surface and frosted surface. The default shipment is the mirror shell GPS antenna. If you have special requirements, please leave a message on the order.
