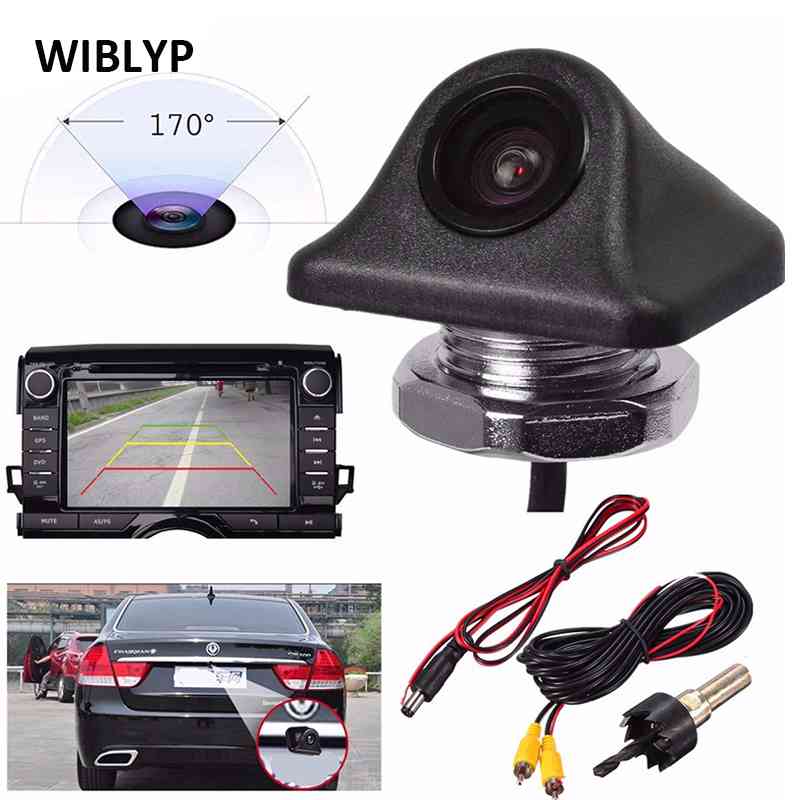

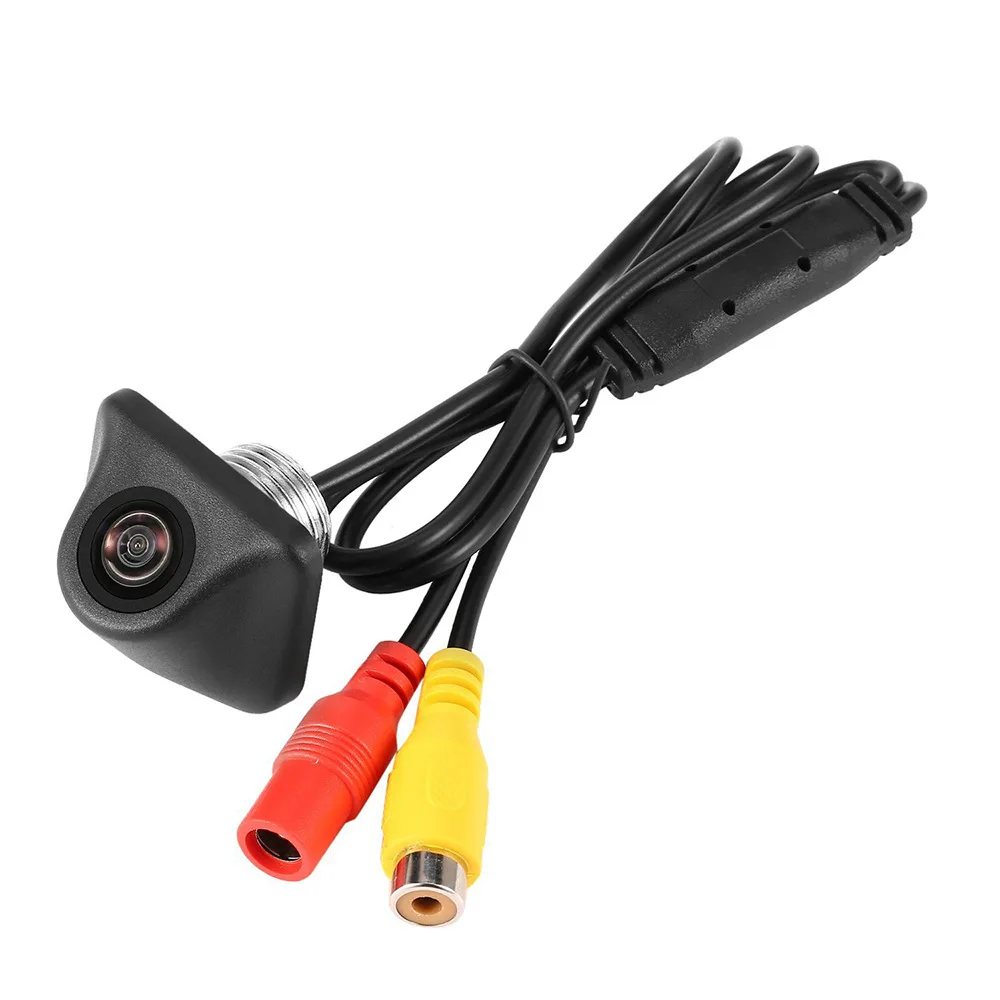

Reverse Camera HD 170 Degrees Wide Angle Night Vision CCD Car Parking Front Side Rear View Backup Camera Waterproof Universal

Setting:
1. Set the camera to your car's license plate area
2. Adjust the camera lens to its best position.
3. Connect the power wire (red and black) to light power wires of your car.
4. Connect the video (yellow) to the display.

Specifications:
Images Sensors: 1/4CCD
Signal System: NTSC
Horizontal Resolution (TV lines): 480 TV lines
Effective Pixels: 720*480pixels
Lens viewing angle: 170 degrees
Horizontal viewing angle: 115degrees
IP Rating: IP67
Video Output: 1.0Vp-p, 75 ohm
Current Consumption: 130-150 mA
AGC & BLC: Auto
S/N ratio: Better than 48dB (AGC-OFF)
Shutter speed: 1/50(1/60)-1/100,000sec Minimum Illumination: 0.1Lux/F1.2
Power Supply (DC): 12V
Operating Temperature (Deg.C): -30 to

Storage Temperature (Deg.C): -40 to

Camera Size: about 3.3*3cm

Packing Included:
1* camera
1* 1m power cord
1* 6m video cable
1* 18.5mm/22.5mm drill bit(18.5mm or 22.5mm random delivery)
1* English manual
