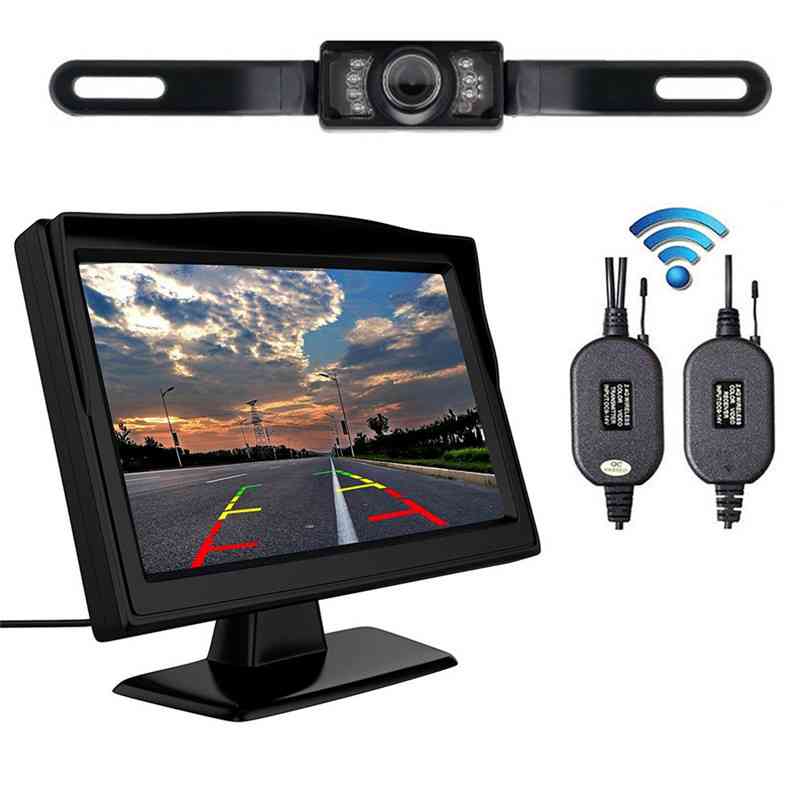

• Brand new and high quality
• The backup camera screen kit can provide you with a clear rear view for your driving
• Full color TFT LCD display, Low power consumption
• Parking rearview priority, The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car
• The monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that
• Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipments
• Designed menu buttons, the brightness/contrast/hue/language is adjustable
• With 2 road video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input, the machine will prioritize the white end signal
• No Audio input or output

Transmitter and receiver:

• Take one minute get your camera become a wireless camera
• Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit
• Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end
• The transmitter also includes a handy pass through for the power so you can connect it inline with your camera
• Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera
• Wireless receiver with male phono plug for connection to monitor
• Connects to rear-view camera and front video screen
• Fit all RCA composite video connections

Specifications:

• Screen Dimension: 4.3 inch
• Resolution: 480 x 234
• Standard: PAL/NTSC
• Video in: AV1/AV2
• Aspect Ratio: 16:9
• Power Supply: DC 12V
• Brightness: 300 nits
• Contrast: 250:1
• Color: Black(as pictures show)
• Housing Material: ABS
• Transmitter and receiver:
• Work Range: Up to about 10m(Hollowness)
• Power: DC 12V
• Transmitter/Receiver Cable Length:1.4m

Review Camera:

• TV system: NTSC
• Effective pixels: 628 X 582 pixels
• Scanning System: 2:1 Interlace
• Sync System: Internal
• Resolution: 420 TV lines
• Lens Angle: 2.8mm/120deg- 1.8mm/170deg
• Sensor Area: 5.961mm x 4.276mm
• Video Output: 1.0 VP-P,75 OHM
• S/N Ratio: More than 48db
• Water-proof: IP67-IP68
• Minimum 111umination: 0.2Lux/F1.8(0Lux with LED)
• Power supply: DC 12V
• Operation Temperature: -20℃-60℃(RH95%Max.)
• Storage Temperature: -30℃-60℃(RH95%Max.)

Important Note:

• Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
• Please allow slight dimension difference due to different manual measurement.

Package Included:

• 1x 4.3 Inch Monitor
• 1x Power cable
• 1x 2.4G Wireless Audio Video AV Transmitter
• 1x 2.4G Wireless Audio Video AV Receiver
• 1x Car Rear View Camera
