Item specifics

Brand Name LEEWA
Voltage 12V
Item Size 1
Item Type Cables Adapters & Sockets
Interface other
Out Power 12W
Model Name Car Audio Wire
Item Weight 0.03kg
Material Type Audio Wire
Special Features Car Audio Wire

Product Description

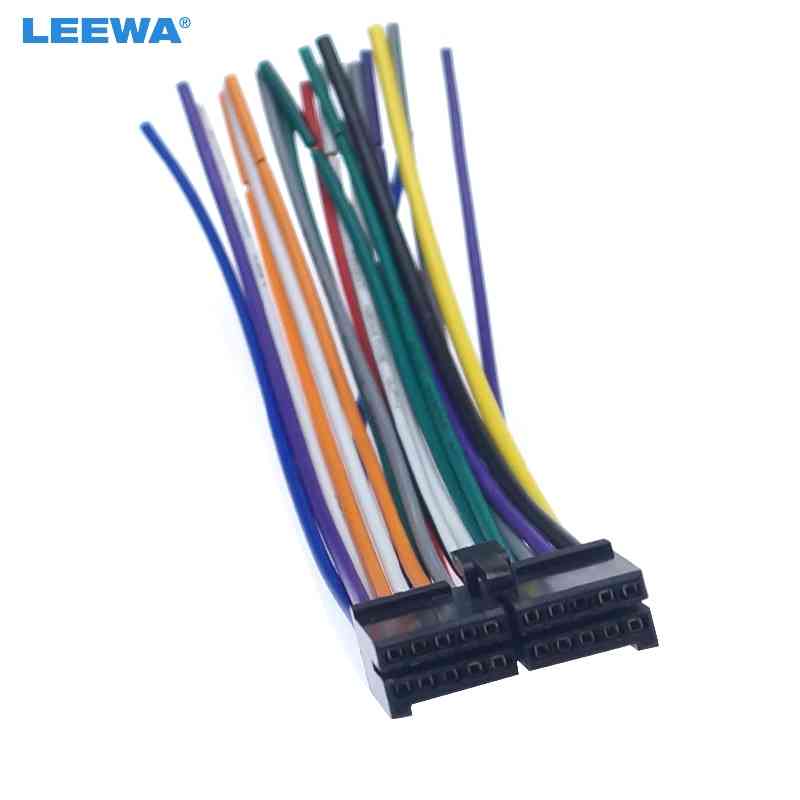

Features: Many aftermarket car head unit use this wiring harness plug cable,but each pin's electrical defined feature is different,you can buy this harness and adjust each pin's possition by yourself according to your car head unit old original wire diagram. 20Pins electrical features defined as follow: #1 GND- #2 BAT+ #3 Rear Right Speaker- #4 Rear Right Speaker+ #5 Front Right Speaker- #6 Front Right Speaker+ #7 Rear Left Speaker+ #8 Rear Left Speaker- #9 Front Left Speaker+ #10 Front Left Speaker- #11 Brake #12 Acc.+ #13 Amp. Control #14 Backup(Reverse) #15 SWC+(Steering Wheel Control) #16 Ant.Control #17 SWC- #18 N/A #19 illum. Light Control #20 N/A
LW01
