Color	Black 1PCB Black 2PCB Blue 1PCB Blue 2PCB White 1PCB White 2PCB
Black 1PCB Black 2PCB Blue 1PCB Blue 2PCB White 1PCB White 2PCB

Description
Customer Reviews(0)

Item specifics

Brand Name toobdpro
External Testing Certification ce
Origin CN(Origin)
Model Name OBD2 Scan Frimware V1.5 Version
Electronic No
Hardware Version V1.5
Item Height 2cm
Item Length 10cm
Power W
Material Type Plastic
Item Type Car Diagnostic Cables and Connectors
Special Features Bluetooth
Item Weight 0.05kg
Software Version V2.1
Voltage V
Item Width 5cm
Item Name ELM327 Super MINI
Color Blue
OBD2 Type Code Reader Scan Tool
Language Multi-Language
Connection Bluetooth
Supports Platform Android Torque/Symbian/Windows
OBD2 CAN-BUS Supports Multi-Protocols
Performance V1.5 Hardware Stable
Note No Supports Truck/Diesel Cars
Function Read and delete Fault code

Product Description

ELM327 hardware V1.5 MAC address is aa:bb:cc:11:22:33

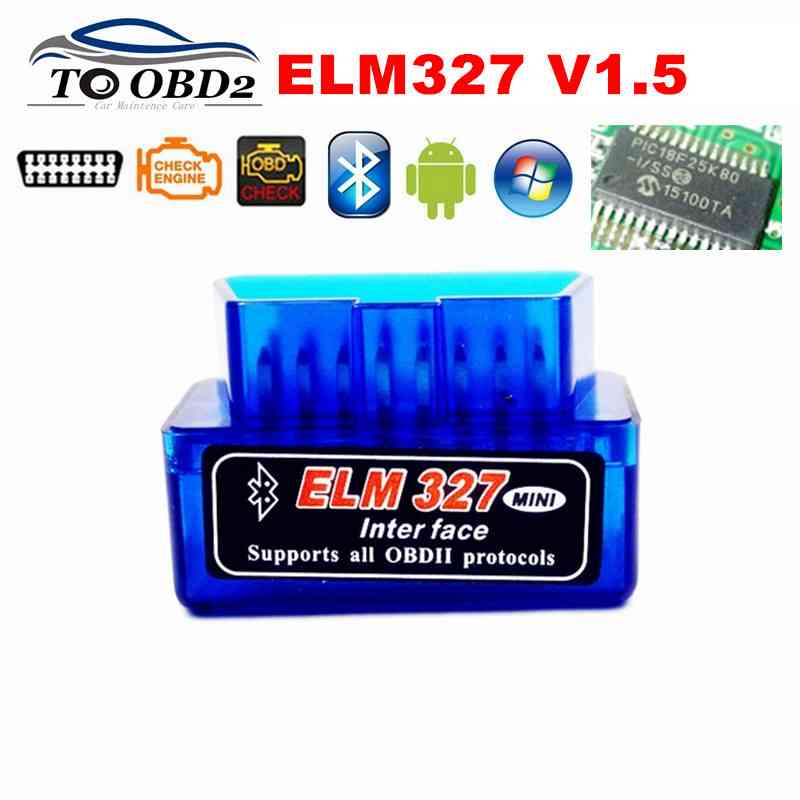

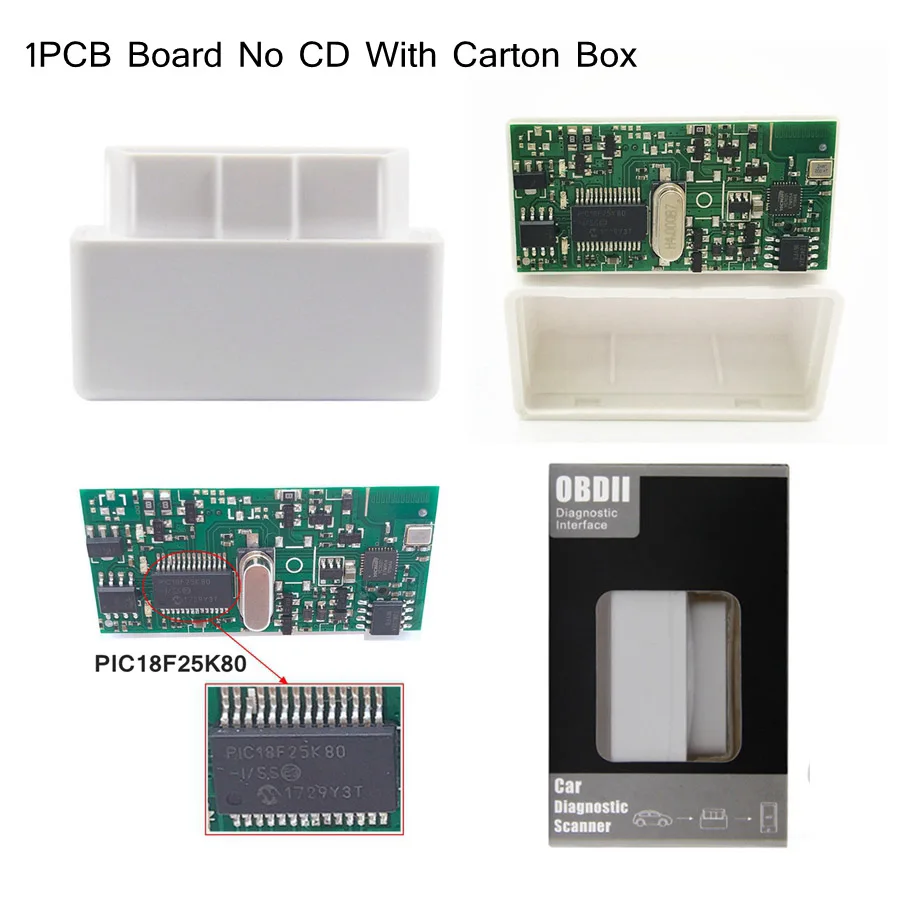

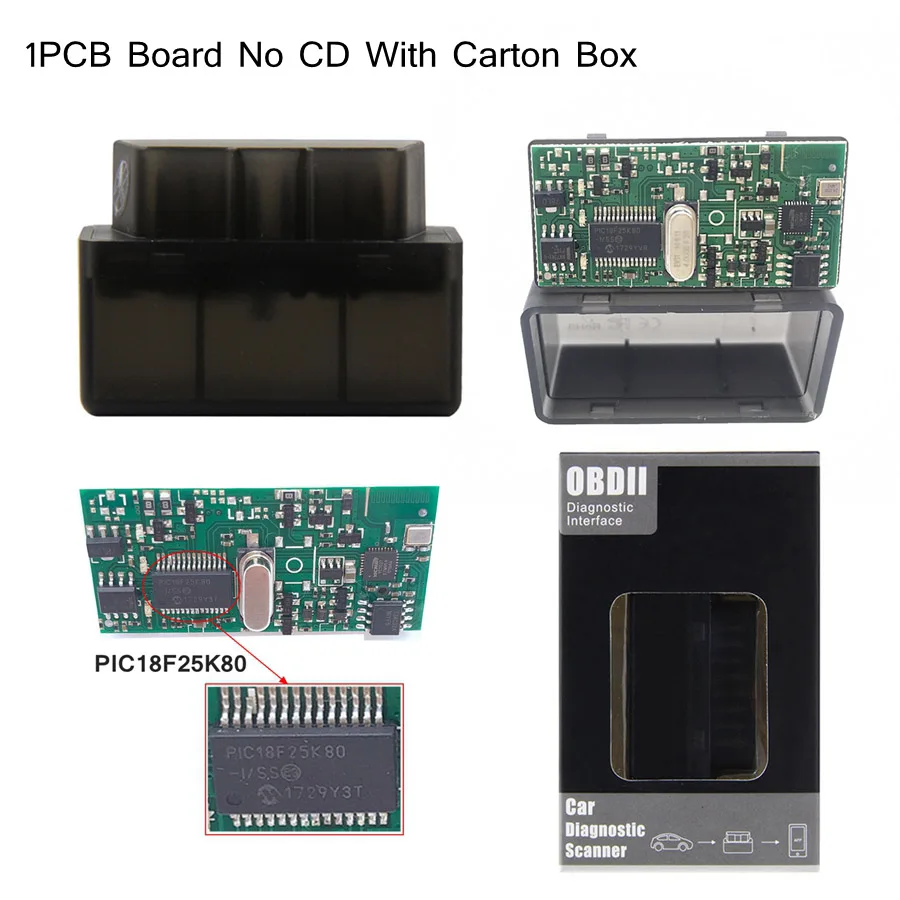

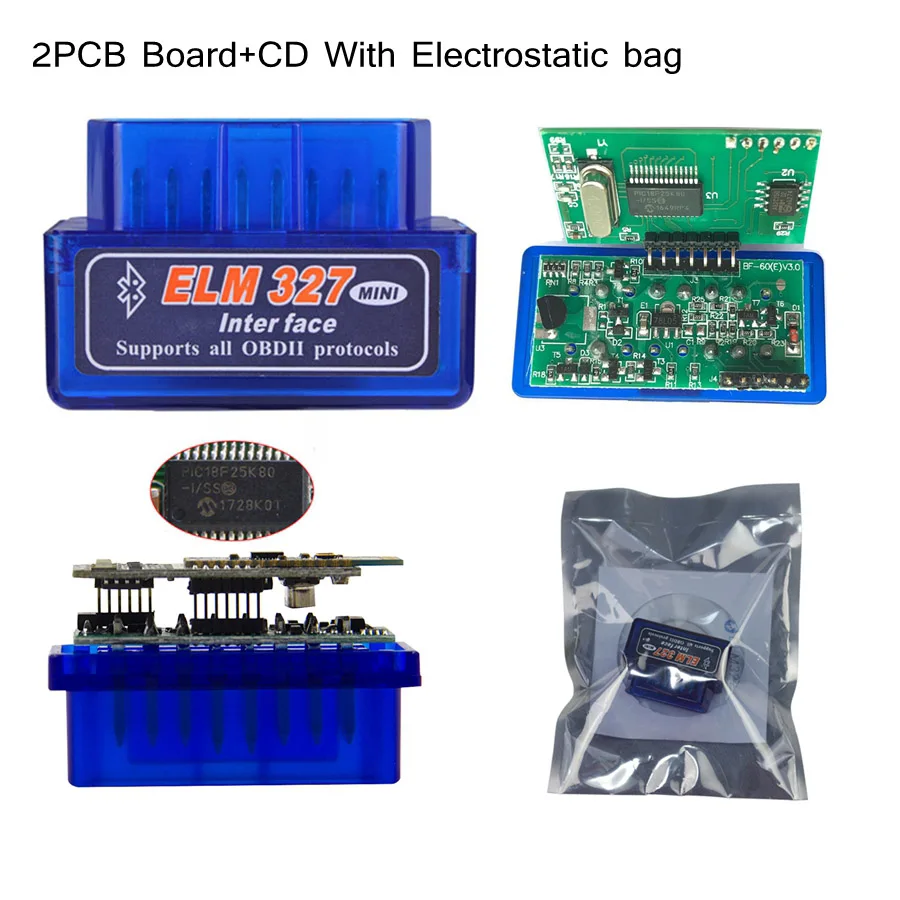

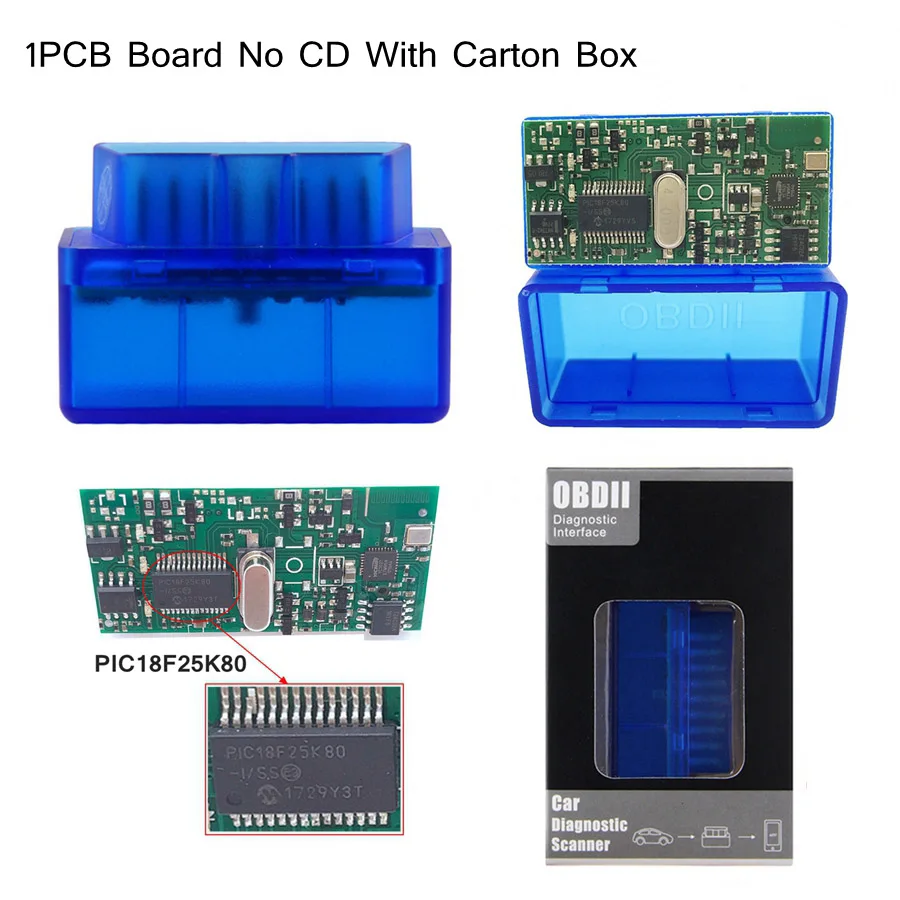

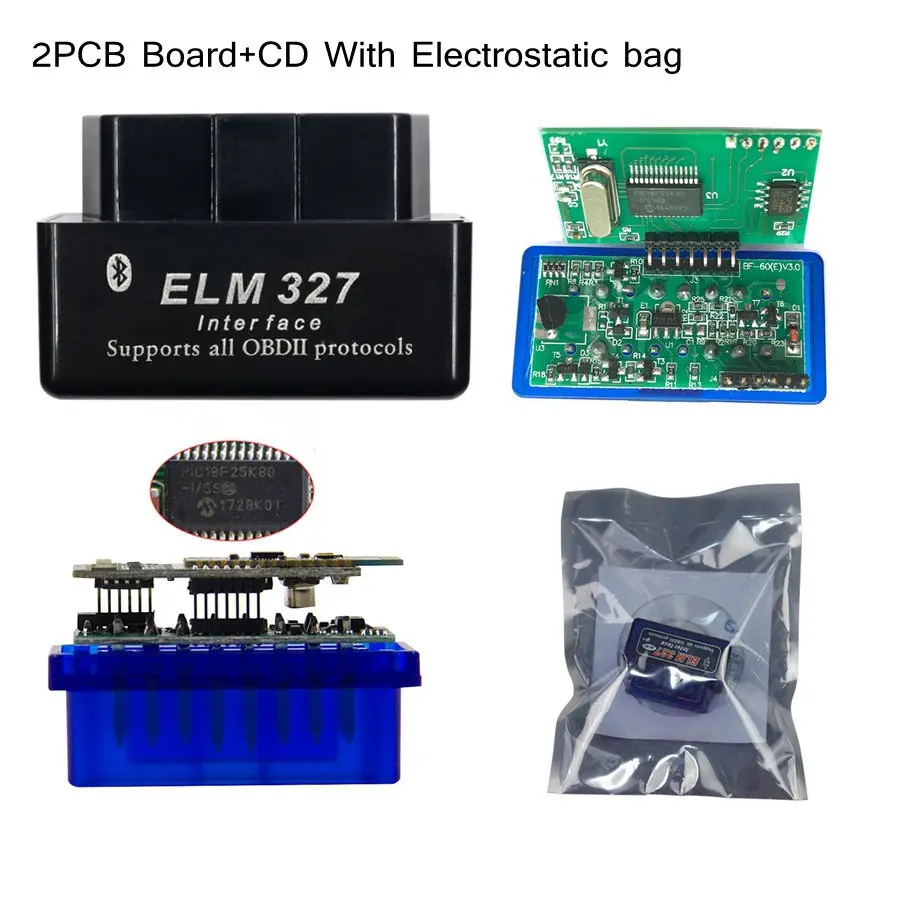

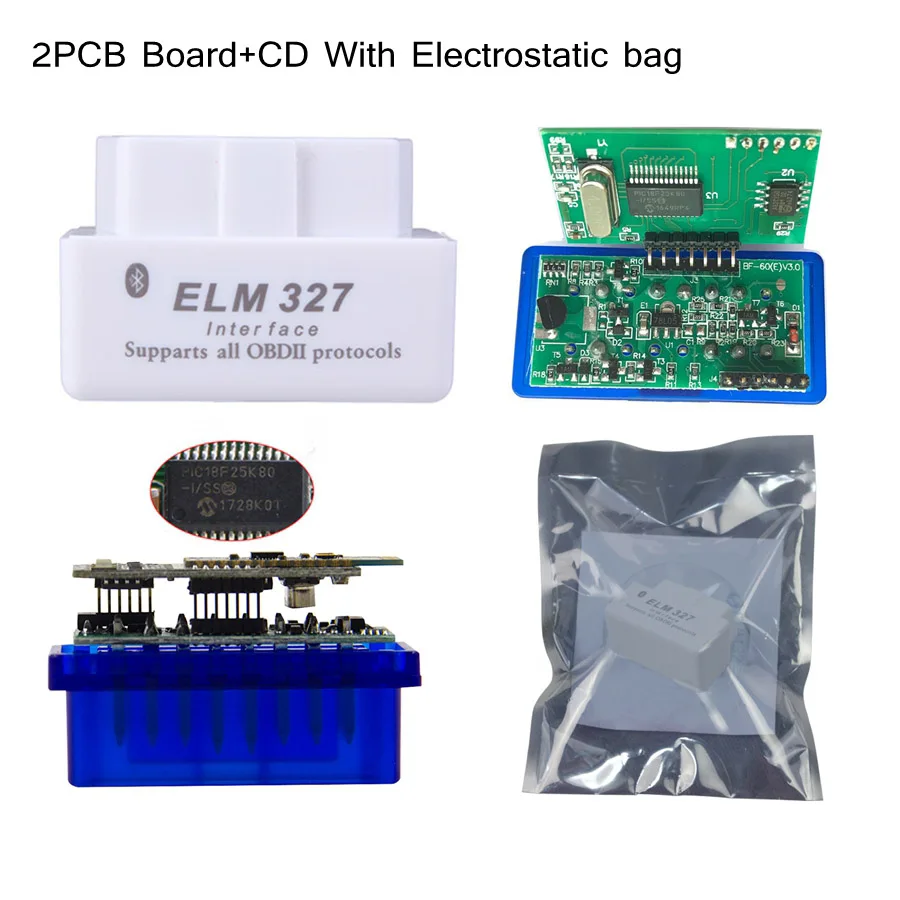

This ELM327 is bluetooth module Firmware V1.5 with PIC18F25K80 Chip.

Firmware V1.5 supports more cars and more protocols than firmware V2.1. Firmware V1.5 has very stable function and it supports SAE J1850 PWM and SAE J1850 VPW protocols.

So if your V2.1 can not works with your car protocols,mabe you could buy Firmware V1.5 to try ,but it doesnt means V1.5 can supports your car 100%,as we can not test each car .

Note:ELM327 only works Gasoline cars,it can not work Diesel&trucks.

We promise you buy this link firmware V1.5,we will only send V1.5 version to you ,so please do not worry and buy it !

We welcome every customer buy and test it ,give us feedback about the hardware Version V1.5,as we have confident to proof it.

This ELM327 works ONLY for Gasoline cars,it does not supports Diesel car and Truck.

It supports multi-brand gasoline cars,but we can't test it on all cars ,also each car brand has many series,so we can not make sure if this device works your car or not .

We suggest you can buy one to try and test . As this is cheap elm327,but it has powerful function for your car !

But if you dont sure and do not want to buy one to try ,please consider twice.

ELM327 OBD2 Code Reader Scanner Auto Diagnostic Interface V1.5

Firmware Adapter Version V1.5+25K80 Chip

Description:

ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols.

Works For Multi-Cars diagnostic,read and delete Fault code.

Highlights:

Hardware V1.5,Software V2.1Bluetooth Password :0000 / 1234Woks on Android Torque (Android 4.0~4.4) /PC,BUT IT NO WORKS iOS!It CAN'T support Diesel or Trucks.This ELM327 Hardware V1.5 supports All OBD-II protocols cars ,but it can not do all car models,please check your car with following protocols. Supprots All Protocols:SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO9141-2(5 baud init,10.4Kbaud)ISO14230-4 KWP(5 baud init,10.4 Kbaud)ISO14230-4 KWP(fast init,10.4 Kbaud)ISO15765-4 CAN(11bit ID,500 Kbaud)ISO15765-4 CAN(29bit ID,500 Kbaud)ISO15765-4 CAN(11bit ID,250 Kbaud).ISO15765-4 CAN(29bit ID,250 Kbaud)A.SAE J1939 CAN(29bit ID,250*Kbaud)B.USER1 CAN(11*bit ID,125*Kbaud)C.USER2 CAN(11*bit ID,50*kbaud)*default settings (user adjustable)
Functions: 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).2.Clear trouble codes and turn off the MIL ("Check Engine" light)3.Display current sensor data, including:4.Engine RPM5.Calculated Load Value6.Coolant Temperature7.Fuel System Status8.Vehicle Speed9.Short Term Fuel Trim10.Long Term Fuel Trim11.Intake Manifold Pressure12.Timing Advance13.Intake Air Temperature14.Air Flow Rate15.Absolute Throttle Position16.Oxygen sensor voltages/associated short term fuel trims17.Fuel System status18.Fuel Pressure19.Many others. Default Settings(user adjustable)1.Works with OBD-II compliant vehicles2.Wireless (Bluetooth) 5~10 meter3.Software included for Pa, PDA,Mobile4.Software included for Windows PC ,Can also be used with a PC with a Bluetooth Card.5.Software included for Windows Smartphone Android torque Package List:1 x ELM327 Bluetooth1 x CDNote:If CD unreadable or damaged,please
