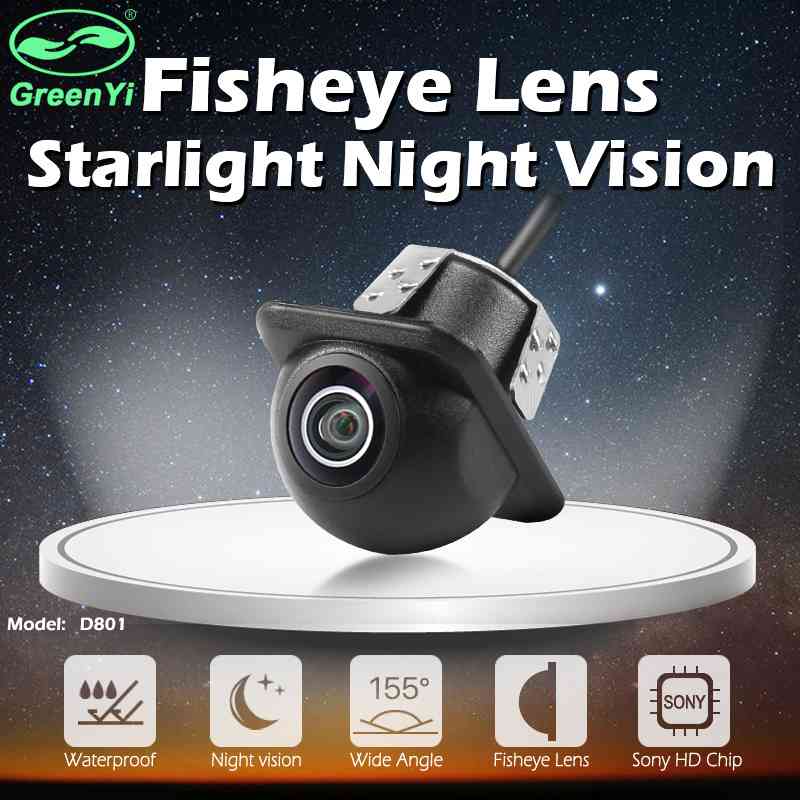

Features:

• MCCD 7090 imaging sensor.
• Support NTSC/PAL Video system. High grade of waterproofing: IP68.
• High-definition and 155 degree wide viewing angle. like as fisheye.
• Low-light Level Night Vision, 15m visible distance for night.
• Can be used as front / rear / side view camera.
• Optional distance scale line.
• 6M RCA Video connector. Fit for Android DVD player and Any TFT Car Monitor.
• Fit for any Car model.

A. Green switch wire (distance scale line switcher)

B.  White switch wire (mirror-mirror switcher)

Instructions:

• If you need a backup camera without distance scale line, do no cut any wires.
• If you need a backup camera with distance scale line, please cut the green wire.
• If you need a front camera with distance scale line, please cut the white wire.
• If you need a front camera without distance scale line, please cut both the green and white wires.

Night Vision

Installation Diagram

Package Included:

1. Front Camera
2. Power Cable
3. Package
4. Drill
5. Manual
