Item specifics

Brand Name FEELDO
Origin CN(Origin)
Voltage 12V
Special Features -
Item Size -
Model Name AM2326
Out Power 12V
Interface RCA
Material Type -
Item Type Cables Adapters & Sockets
Item Weight 0.05kg

Product Description

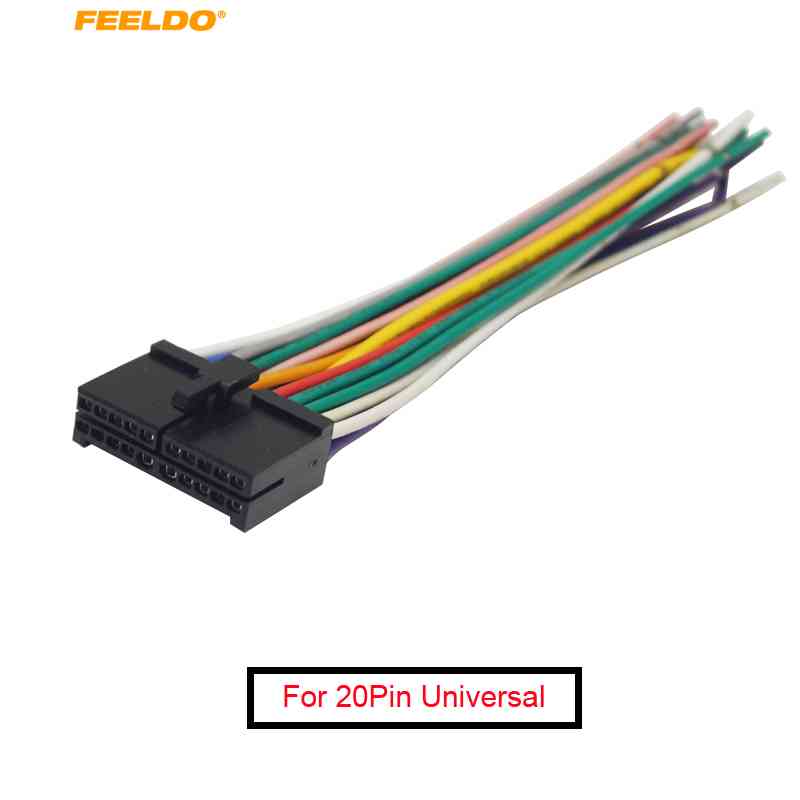

Features:Many aftermarket car head unit use this wiring harness plug cable,but each pin's electricaldefined feature is different,you can buy this harness and adjust each pin's possition by yourself according to your car head unit old original wire diagram. 20Pins electrical features defined as follow:#1 GND-#2 BAT+#3 Rear Right Speaker-#4 Rear Right Speaker+#5 Front Right Speaker-#6 Front Right Speaker+#7 Rear Left Speaker+#8 Rear Left Speaker-#9 Front Left Speaker+#10 Front Left Speaker-#11 Brake#12 Acc.+#13 Amp. Control#14 Backup(Reverse)#15 SWC+(Steering Wheel Control)#16 Ant.Control#17 SWC-#18 N/A#19 illum. Light Control#20 N/A
