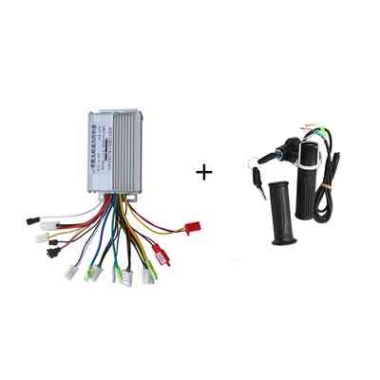

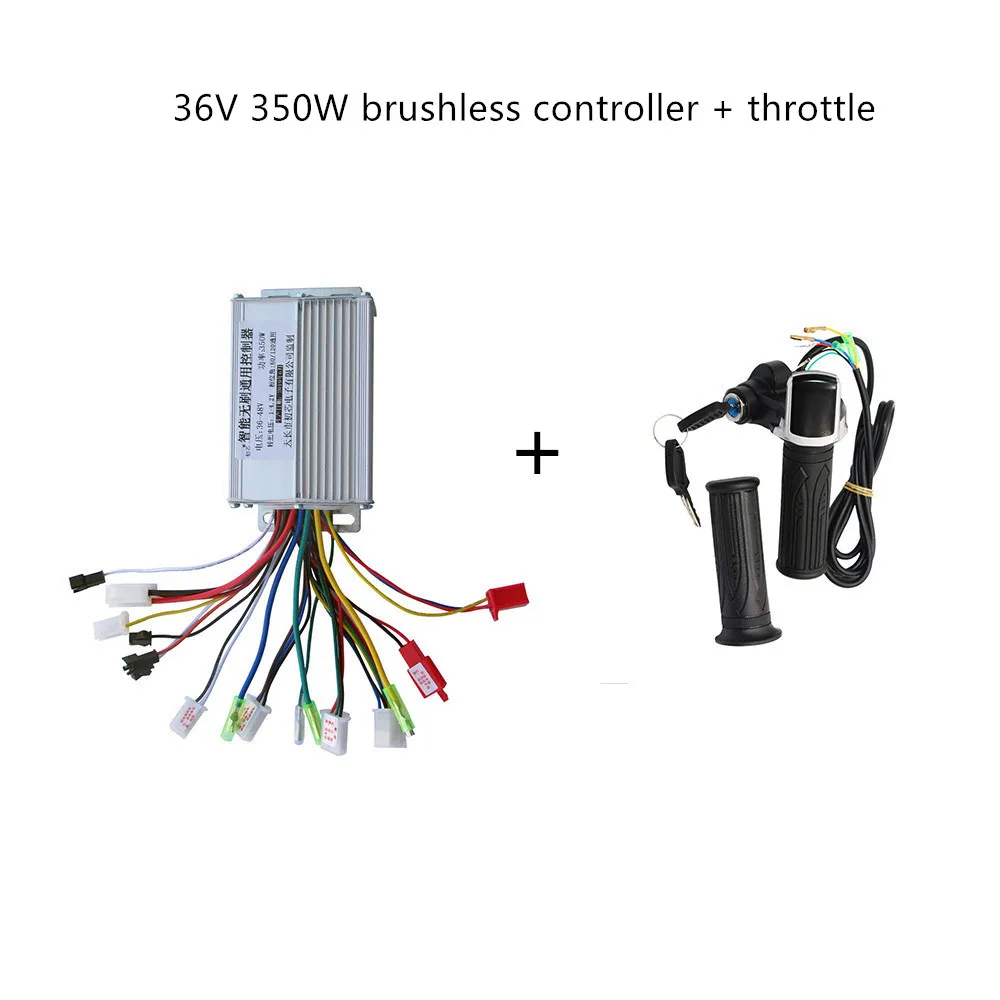

36V-48V 350W controller can work with hall sensor/hall sensorless

Rated Voltage: 36V/48V

Low Voltage : 31V/42V±0.5V

Rated Power: 350W

Limit Current: 17A

1.pointer meter line

2. motor line

3.3-speed line

4.Anti-theft alarm line

5.self-learning line

6.hall line

7.throttle line

8.low brake

9.Anti-theft power line

10.Cruise speed line

11.battery（2 red wires battery +，black battery -）

12.high brake

一.connect the motor line (color to color）

二. connect the battery line(2 red wires :battery + , black:battery-)

三. connect the controller throttle line（color to color）

四. connect the hall line(if motor without hall line, don’t need connect)

五.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)

六.other functions can be connected as needed.

Throttle:

■ Size: (Lx D) 10 cm x 2 cm / 3.

■ Throttle Works Voltage: DC5V

■ Speed Adjusting Signal:0.8V～4.3V

■ Power display Voltage: DC 24V/350W/500W

■ Power display:

■ Normal: 23V above, 3 Led Green,

■ Half: 23V ~ 20V, Led Yellow,

■ Empty: 20V or less, Led Red

■ Rotation angle: 0 °~ 70 °

■ Working temperature: -20 ℃~ +50 ℃

■ Fits standard 7/8 inches(22.2mm) handle bars

■ Cable length is approximately 59 inches (1.5m)

■ Quantity: 2 pcs (1 Twist throttle grip and 1 normal grip (matching thumb grip) )

■ Electric Bike scooter twist throttle accelerator with power display, 5 led battery indicator.
