Item specifics

Brand Name Eightwood
Origin CN(Origin)
Model Name GA03-300-GT5SJ
GPS type Receiver & Antenna
Center Frequency 1575.42MHz
Frequency Range 1575.42MHz+-3 MHz
V.S.W.R 1.5:1
Band Width +-5 MHz
Impedance 50 ohm
Polarization RHCP
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Working Temp -40'C-+85'C
Storage Temp. -45'C-+100'C
Antenna Type Ceramic Patch
Termination Cable (3000mm) - HRS GT5-1S
Suitable 1 Alpine
Suitable 2 Kenwood
Suitable 3 JVC
Suitable 4 Toyota
Suitable 5 Honda
Suitable 6 Nissan
Mounting Type Adhesive
Ships from Guangdong China

Product Description

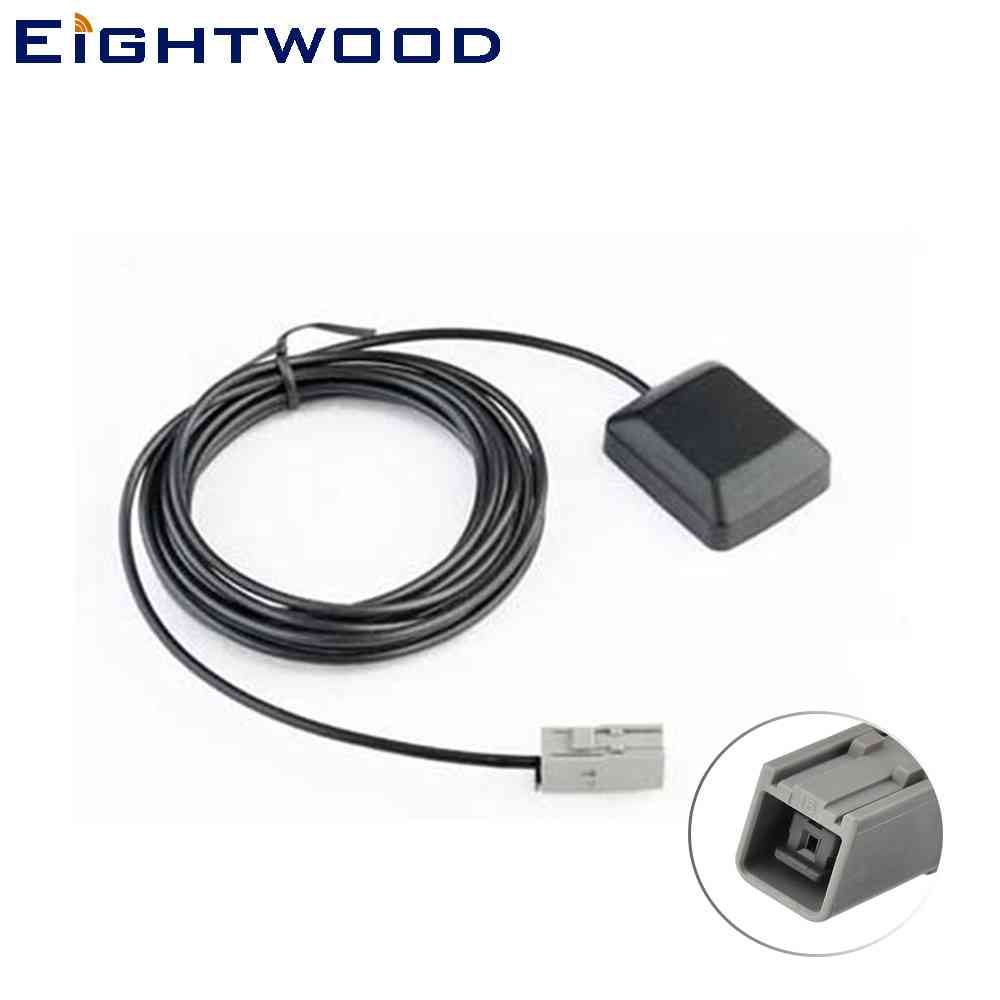

Eightwood GT5-1S Jack GPS Active Magnetic base Antenna Aerial Connector Cable for Alpine Kenwood JVC Toyota Honda Nissan GPS Navigation Receiver

（i） Dieletric Antenna
Center Frequency: 1575.42MHz±3 MHz
V.S.W.R: 1.5:1
Band Width: ±5 MHz
Impendence: 50 ohm
Peak Gain: ＞3dBic Based on 7×175px ground plane
Gain Coverage: ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization: RHCP

（ii） LNA/Filter
LNA Gain (Without cable): 28+/-3dB
Noise Figure: 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz):7dB Ｍin f0+/-20MHZ ;20dB Ｍin f0+/-50MHZ;30dB Ｍin f0+/-100MHZ
V.S.W.R: ＜2.0
DC Voltage: 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current: 5mA /11mA/15mA Max

（iii）Mechanical
Weight: ＜100gram
Size :48x39x16mm
Cable :RG174 3 meter /
