Color	KT-15A SM Sinewave KT-15A WP Sinewave KT-17A SM Sinewave KT-17A WP Sinewave KT-22A SM Sinewave KT-22A WP Sinewave KT-25A SM Sinewave KT-25A WP Sinewave KT-30A SM Sinewave KT-30A WP Sinewave KT-35A SM Sinewave KT-50A SM Sinewave
KT-15A SM Sinewave KT-15A WP Sinewave KT-17A SM Sinewave KT-17A WP Sinewave KT-22A SM Sinewave KT-22A WP Sinewave KT-25A SM Sinewave KT-25A WP Sinewave KT-30A SM Sinewave KT-30A WP Sinewave KT-35A SM Sinewave KT-50A SM Sinewave

Description
Customer Reviews(0)

Item specifics

Brand Name BOLUSE
Origin Mainland China
Type Controller
Controller 15A 17A 22A 25A 30A KT Controller
Type Sinewave Controller
Plug SM/ Waterproof Plug
KT-15A Controller For 250W Wheel hub motor
KT-17A Controller For 350W Wheel hub motor
KT-22A Controller For 500W Wheel hub motor
KT-25A Controller For 750W Wheel hub motor
KT-30A Controller For 750W/1000W Wheel hub motor

Product Description

●★●Please make sure that your original controller is theKT controller(communication protocol) before your device.●★●The KT controller is only suitable for KT series accessories, such as KT display, KT throttle, etc.●★●If you need awaterprooftype, Thewaterproof connector is very special, because of the wire sequence I cannot guarantee that it will be 100% compatible and work.●★●Our controller cable brand is Julet. Please check and confirm the appearance of your connector. Usually 90% of them can work normally. If you encounter problems during installation, please contact us and we will try our best to help you solve it.●★●Waterproof cable length is about 11-13cm.If you want to connect the controller,you need a 1TO4 or 1TO5 Extension Cable，and we can sell it together.●★●Please contact me if you are not sure which is right for you or have further questions by Lotusrite message.●★●If you have any questions after receiving the goods, or if you are worried about logistics when the goods are not received, please contact our staff as soon as possible●★●If the product you want to buy is not in stock or displayed, you can contact the staff, we can order for you, and we will do our best to meet customer needs.

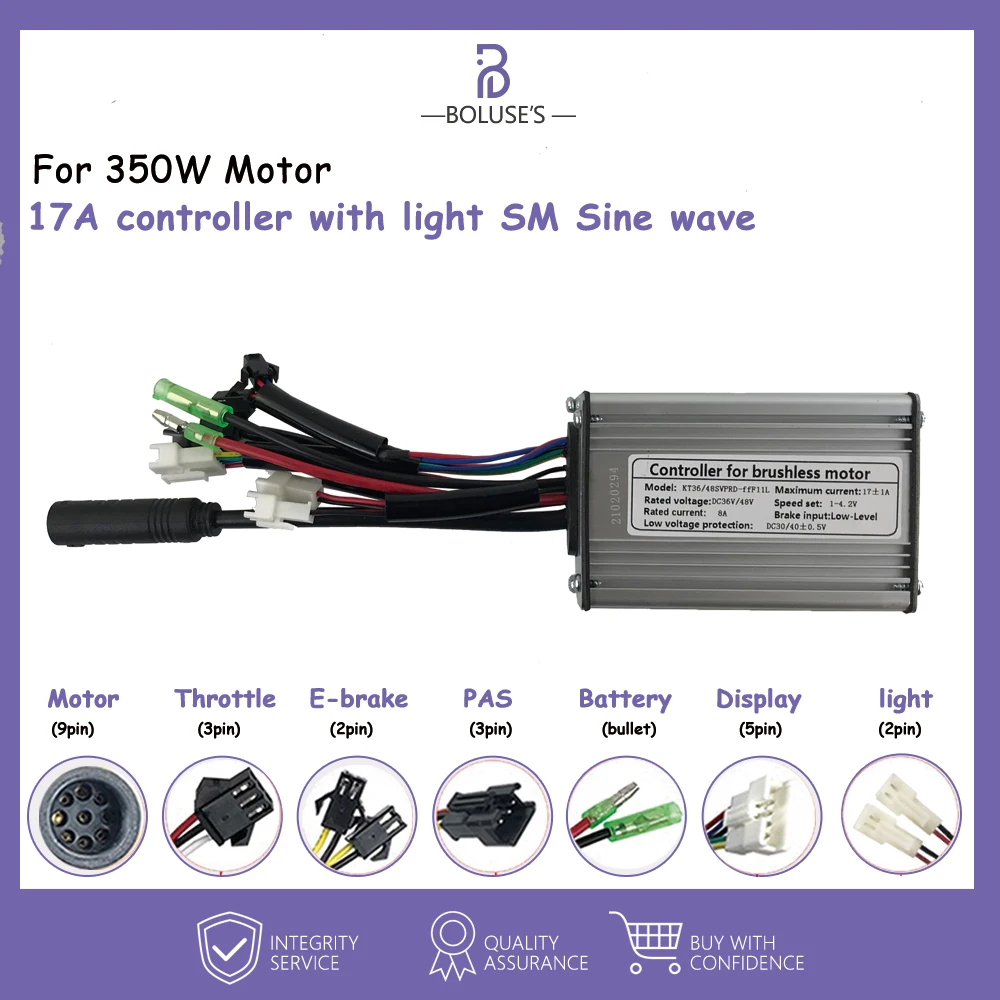

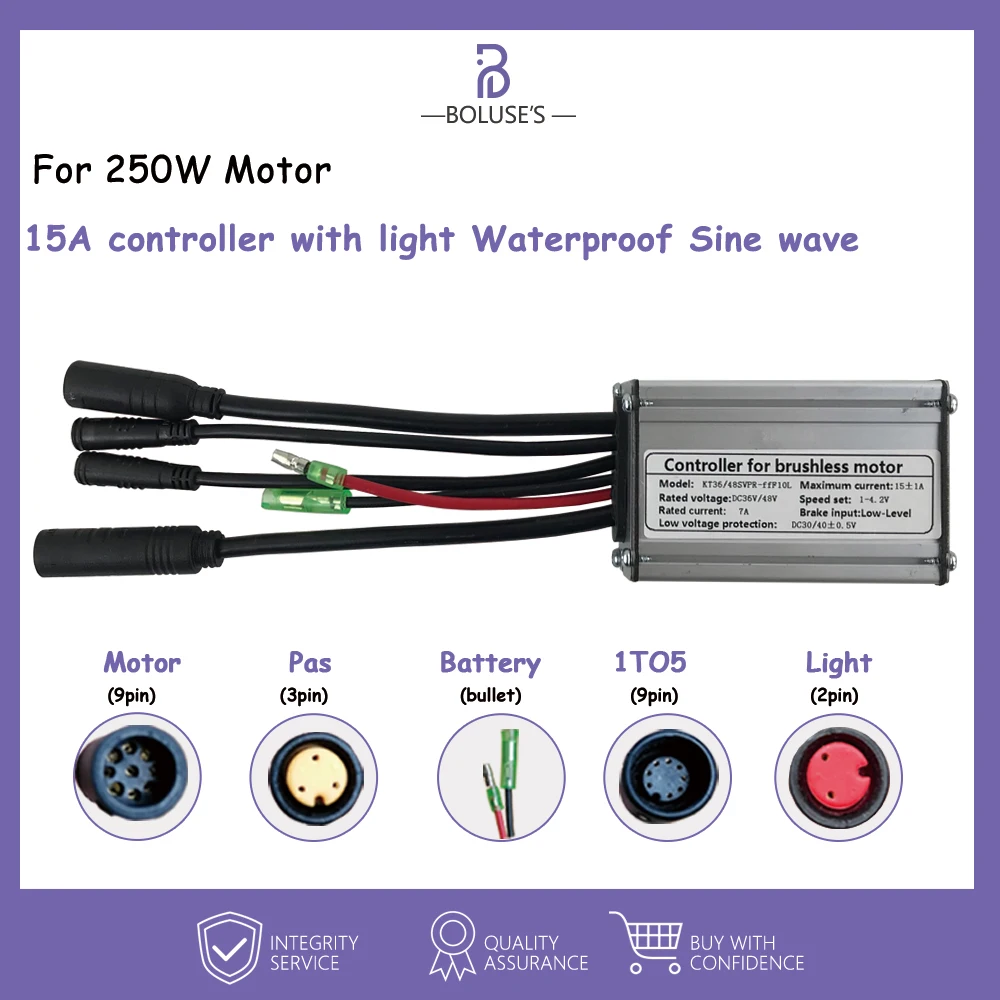

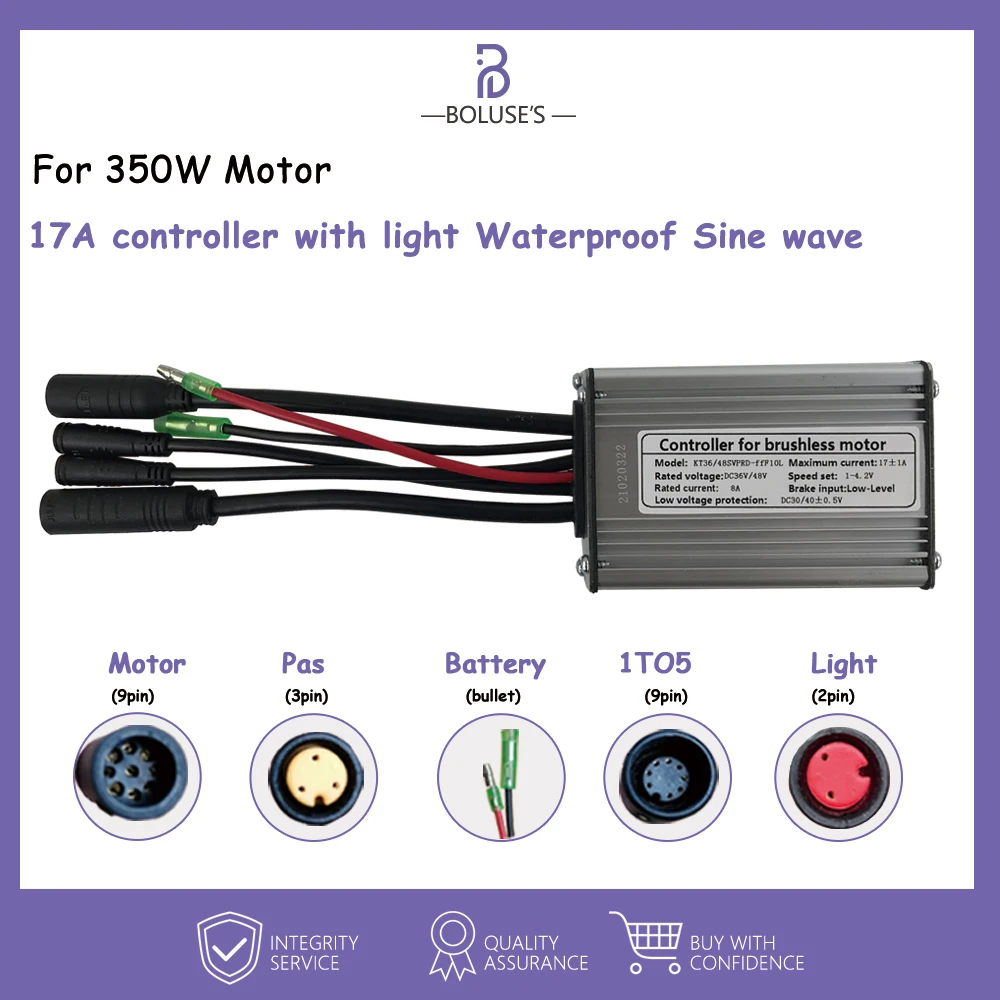

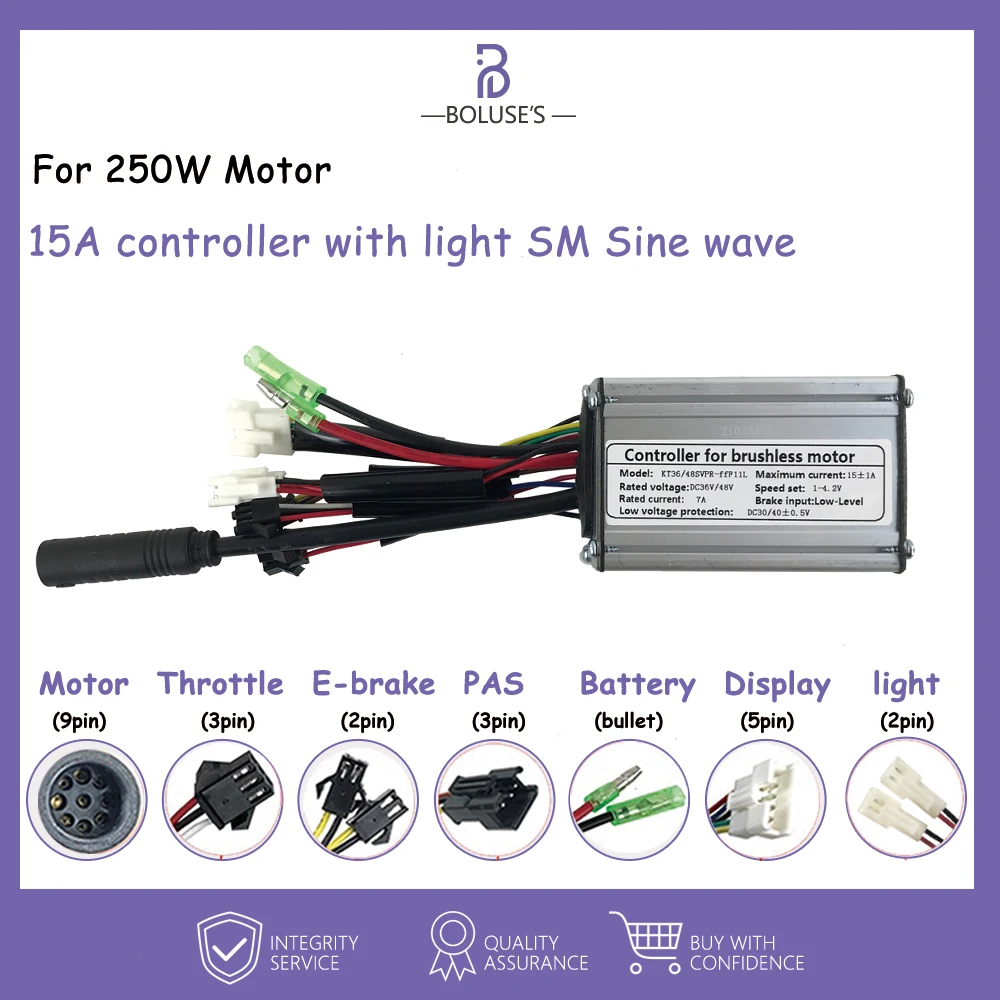

Type：KT-15A Controller(Sine wave) Used for 250W-350W Motor①Controller Brand :KT (KUNTENG)②Size:82 * 53 * 32 mm③Weight:200g④Cable length :all about 10-13cm⑤Mosfets:6 mosfets⑥Maximum current:15±1A⑦Rated voltage:DC36V/48V⑧Speed set:1-4.2V⑨Rated current:7A⑩Brake input :Low-Level⑪Low voltage protection:DC30/40±0.5V⑫Wave:Sine wave Type：KT-17A Controller(Sine wave) Used for 250W-350W Motor①Controller Brand :KT (KUNTENG)②Controller dimension :about 94 * 62 * 35 mm③weight:250g④cable length :all about 10-13cm⑤Mosfets :Big6 better mosfets⑥Maximum current:17±1A⑦Rated voltage:DC36V/48V⑧Speed set:1-4.2V⑨Rated current:8A⑩Brake input :Low-Level⑪Low voltage protection:DC30/40±0.5V⑫Wave:Sine wave Type：KT-22A Controller(Sine wave) Used for 500W-750W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 128 * 68 * 38 mm④Mosfet :9 Mosfets⑤Maximum current :22±1A⑥Rated current :11A⑦Rated voltage :DC36V/48V⑧Speed set :1-4.2V⑨Brake input :Low-Level⑩Low voltage protection :DC30/40±0.5V⑪Cable Length :all about 13-18cm⑫Weight:450g⑬Wave:Sine wave Type：KT-25A Controller(Sine wave) Used for 500W-750W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 128 * 68 * 38 mm④Mosfet :9 Mosfets⑤Maximum current :25±1A⑥Rated current :11A⑦Rated voltage :DC36V/48V⑧Speed set :1-4.2V⑨Brake input :Low-Level⑩Low voltage protection :DC30/40±0.5V⑪Cable Length :all about 13-18cm⑫Weight:450g⑬Wave:Sine wave

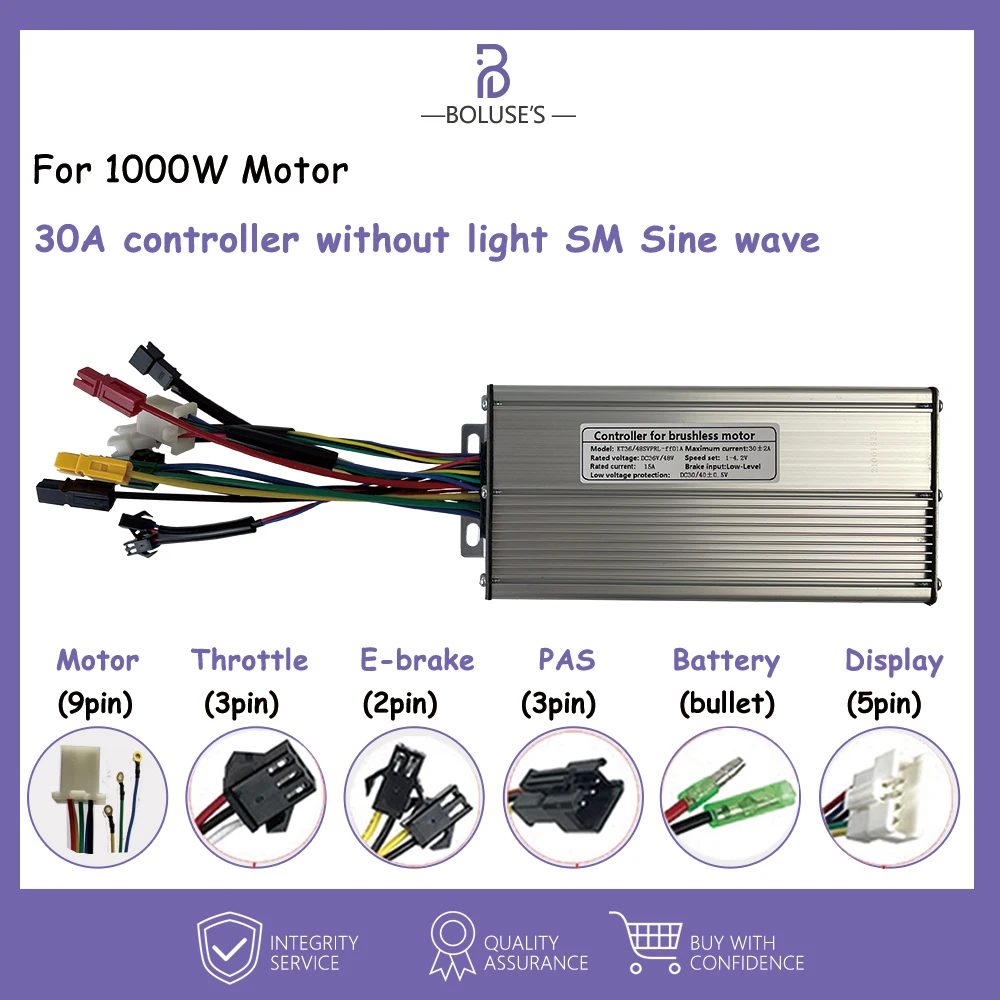

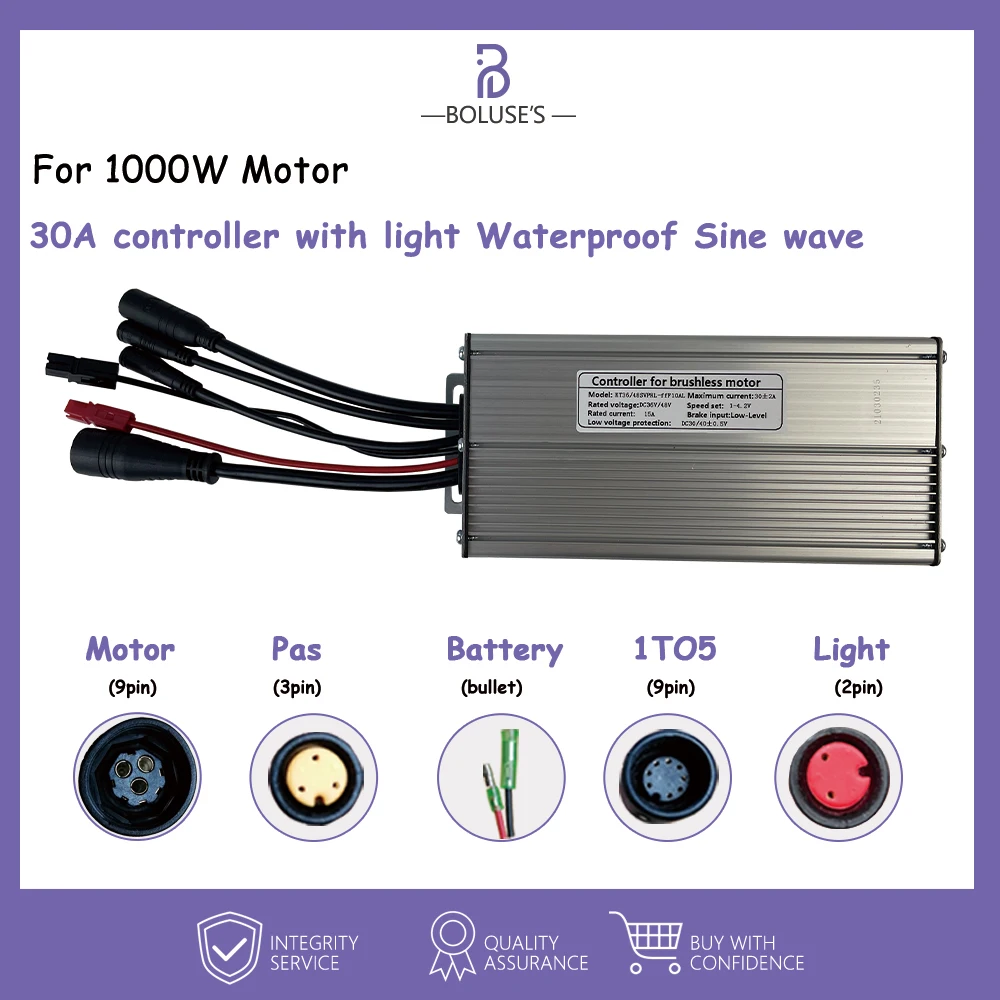

Type：KT-30A Controller(Sine wave) Used for 1000W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 170 * 88 * 43 mm④Mosfet :12 Mosfets⑤Maximum current :30±1A⑥Rated current :17A⑦Rated voltage :DC36V/48V⑧Speed set :1-4.2V⑨Brake input :Low-Level⑩Low voltage protection :DC30/40±0.5V⑪Cable Length :all about 13-18cm⑫Weight:about 650g⑬Wave:Sine wave Type：48V KT-30A Controller(Sine wave) Used for 1000W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 172 * 82 * 42mm④Mosfet :12Mosfets⑤Maximum current :30±1A⑥Rated current :15A⑦Rated voltage :DC36V/48V⑧Wave:Sine waveType：48V KT-35A Controller(Sine wave) Used for 1500W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 172 * 82 * 42 mm④Mosfet :12 Mosfets⑤Maximum current :35±1A⑥Rated current :17A⑦Rated voltage :DC48V⑧Wave:Sine waveType：48V KT-50A Controller(Sine wave) Used for 1000W1500W 2000W 3000W Motor①Controller Brand :KT（KUNTENG）②Color :Silver③Dimension :about 236 * 88 *42 mm④Mosfet :18 Mosfets⑤Maximum current :50±1A⑥Rated current :25A⑦Rated voltage :DC48V⑧Wave:Sine wave

Attention:●★●There are three battery connectors above.Usually, the default power plug on our controller is●★●KT-15A/17A/22A plug type of power and phase is Bullet plugThe bullet plug is the most common power plug with high adaptability and can basically meet daily needs.●★●KT-30A/35A plug type of power and phase is Anderson PP30 plugAnderson plug is more convenient, can be operated simply, and is safer to use.●★●KT-50A plug type of power and phase is Bull nose plugBull nose plug, simpler operation, safe and stable output of large voltage and large current, widely applicable.●★●If you need to specify, please note or leave a message to us after placing the order.

Controller connection power plug can be changed: XT90 XT60 PP30
