Ebike Controller 250w For Brushless Motor Kunteng Controller 36v 350w For Bafang Hub Motor With Kt Display Lcd3 Lcd4 Lcd5 - Elec

Ebike Controller 250w For Brushless Motor Kunteng Controller 36v 350w For Bafang Hub Motor With Kt Display Lcd3 Lcd4 Lcd5 - Elec

Enviar a

Tiempo de entrega estimado: 9-25 Días

Color	250W 350W Controller Controller LCD3 Controller LCD4 Controller LCD5
250W 350W Controller Controller LCD3 Controller LCD4 Controller LCD5

Descripción
Comentarios de clientes(0)

Item specifics

Brand Name Onature
Origin Mainland China
Type Controller
Feature KT controller
Work Voltage Electric bike controller 24V 36V
Compatible Motor 250W 350W Ebike Sensored motor
Rated Current 8A
Max Current 17A
Function With Reverse function

Product Description

Notice:

1.This Electric bike Controller work with sensored Brushless motor and Kunteng LCD only.,such as KT LCD3,LCD4 and LCD5.

2.This controller is not suitable for scooters.

3.This 6 mosfet controller is Square Wave controller.

6 Mosfet Ebike Controller

Suitable for Sensored Motor 250W/350W
24V 36V Universal (support both voltage)

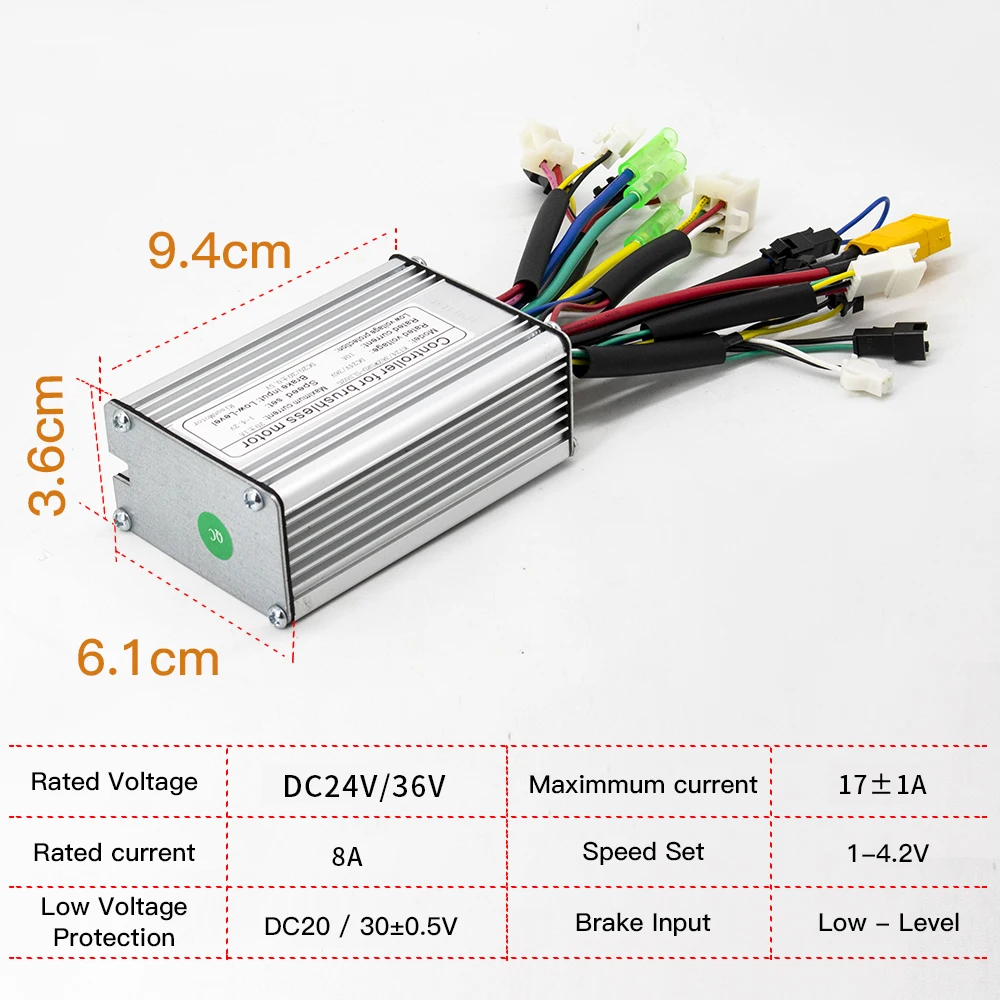

1.Mosfet:6 mosfet
2.Work voltage:DC 36V or 24V
3.Rated current:8A
4.Low voltage proection:DC20/30±0.5V
5.Max current:17±1A
6.Speed set: 1-4.2V
7.Size:94*61*36mm

-Phase cable(3pcs) connect with motor
-Hall sensor wire
-Battery cable(XT60)
-Throttle
-PAS Sensor
-Speed sensor
-Brake connector (2pcs)
-Light connecotr 1(Output power only 3W)
-Light connector 2(Output big,connect battery directly)
-Electric lock
-Display
-Back up
-Cruise

Only Compatible with KT LCD Display

This ebike controller only work with KT LCD display,such as KT LCD3,KT LCD4,KT LCD5,LCD8.
