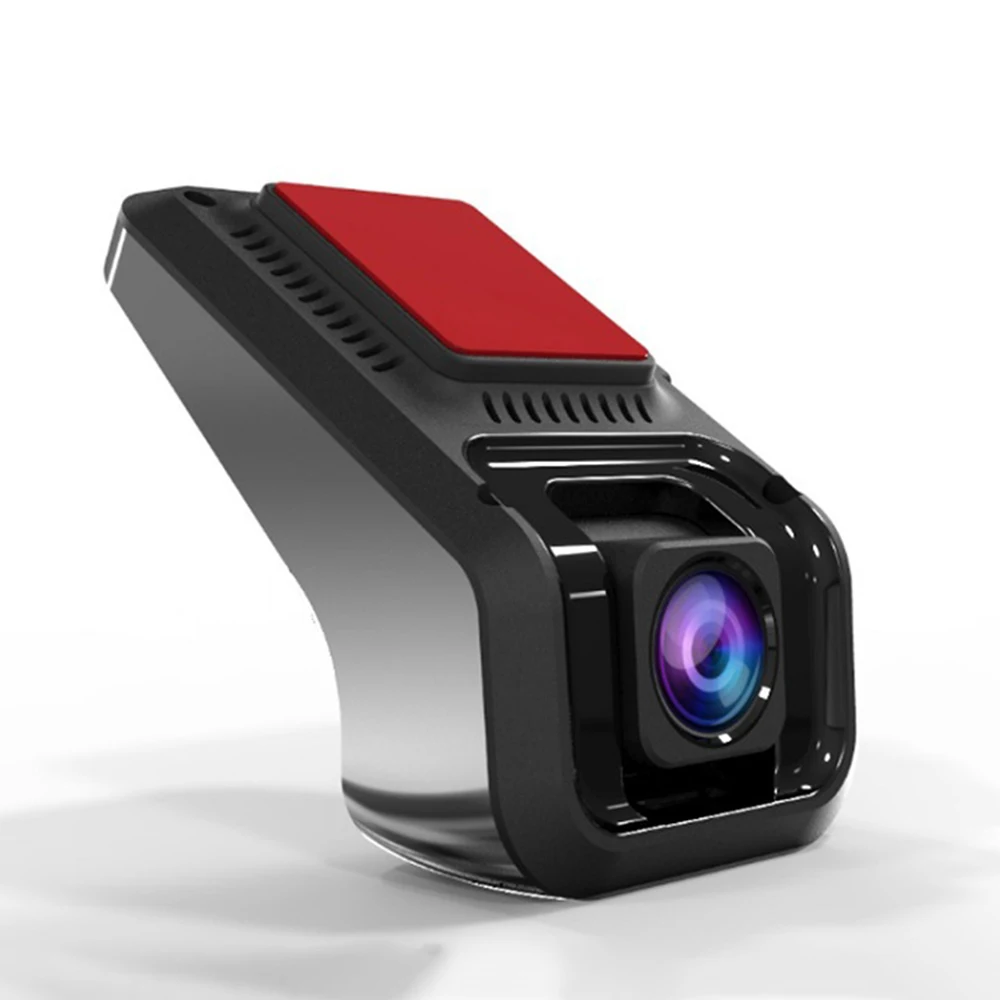

Dash Cam Single Camera ADAS Electronic Dog Alloy 1080P HD Navigation USB Driving Recorder Hidding Car Camera Recorder Car DVR U8

This one is single camera, if you need dual lens, please click: https://www.lotusrite.com/item/4000595766305.html

NOTE

This USB recorder is for above Android 4.0 big screen navigation.
The language depends on your car machine.
The color is black silver, there will be slight differences from different perspectives.
ADAS version must be greater than or equal to 1.2.3, less than 2.0.0, or greater than or equal to 2.2.3.

Features

Model: U8
Appearance size: 70 * 30 * 50 (mm)
Shooting angle: 170 °
Pixels: 12 million
Data storage time: loop recording
Data transmission interface: USB
Transmission number rate: 30
Power: USB power
Size: 7 * 3 * 5cm
Voltage: 12V
Rated current: 2A
Installation position: on the back of the rearview mirror or on the front windshield

Super Night Vision

Sony IMX323 image sensor 1/2.9 inch light-sensitive components, 4 IR lights, f/1.8 aperture and 6-glass lens, can capture clear videos and photos even in low-light night conditions.

USB Driving Recorder for Android

Android navigation system with USB interface, can be worked for above Android 4.0 system

Loop Recording

When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.

Electronic Dog Fixed Speed Measurement

Product Installations

ADAS/Electronic Dog Fucntions

BUYERS PICTURES SHOW

Product Package: (Random)

Product Display: (real pictures from Buyers)

ADAS function display: (real pictures from Buyers)

Daytime and Night pictures from camera:(real pictures from Buyers)

Installation pictures:(real pictures from Buyers)

QA:

1. Does it apply to my car?

This recorder is suitable for the Android 4.0 or higher version of the central control screen, (all Android smart all-in-one navigators with horizontal and vertical screens can be used), the original screen or without the screen is not available

2.What should I know before install APK?

Please make sure that the Android big screen can read the U disk and install the APK program. Please install the APK as required before use. After the APK is successfully installed, you can operate on the big screen and watch the video image.

3.How to install apk?

(1)Plug the recorder into the navigation, enter the navigation file manager, find the external U disk, go in and you can see the installation software.

(2)If the ES file browser is installed on the car, enter and select the external U disk, you can also see the APK installation software.

(3) Contact with our Customer Service, we will send you the apk for you.

4. How to use ADAS function?

(1)Insert the USB interface and find the external memory file

(2)Click on the APK file and install

(3)Open the APK and display the record screen

(4)Network update to upgrade ADAS / electronic dog function

(ADAS version must be greater than or equal to 1.2.3, less than 2.0.0, or greater than or equal to 2.2.3.)

5.How to calibrate ADAS?

ADAS Calibration needs to meet two conditions:

1. GPS signal

2. On the road with road markings

The correction frame should be level with the markings on the road, and the camera lens can be fine-tuned

6.Why does the recorder no image after I install the apk?

(1)Check whether the drive letter of the recorder is present in the file management. If there is no drive letter, it means that the cable is disconnected. Check whether the plug is loose or the tail cable is damaged, etc.

(2)If there is a drive letter and no image, pull out the memory card and re-plug the power to try to rule out the lack of boot screen caused by the memory card

7. How is the lens? Is it real HD 1080P?

This camera is a sony 6G high-definition glass lens, 1080P high-definition night vision recording.

(1). Before use, please confirm whether the sticker on the front of the camera has been removed.

(2). Please check if there is any dirt on the lens.

8.What is wrong with my card?

If you ordered the camera with card, the card will be sent with the camera in the package together. The card is very small. Please check it carefully.

After installing the memory card, no image is displayed: Please make sure the memory card is Class 10, otherwise the video quality will be affected. Try to replace an available memory card to see if there is a video

9. How can I change the language into my own country language?

Usually after you installed the apk and updateed it, the language will be update with your car navigation. If the language did not change to your language, you need to maually change language on your car navigation.
