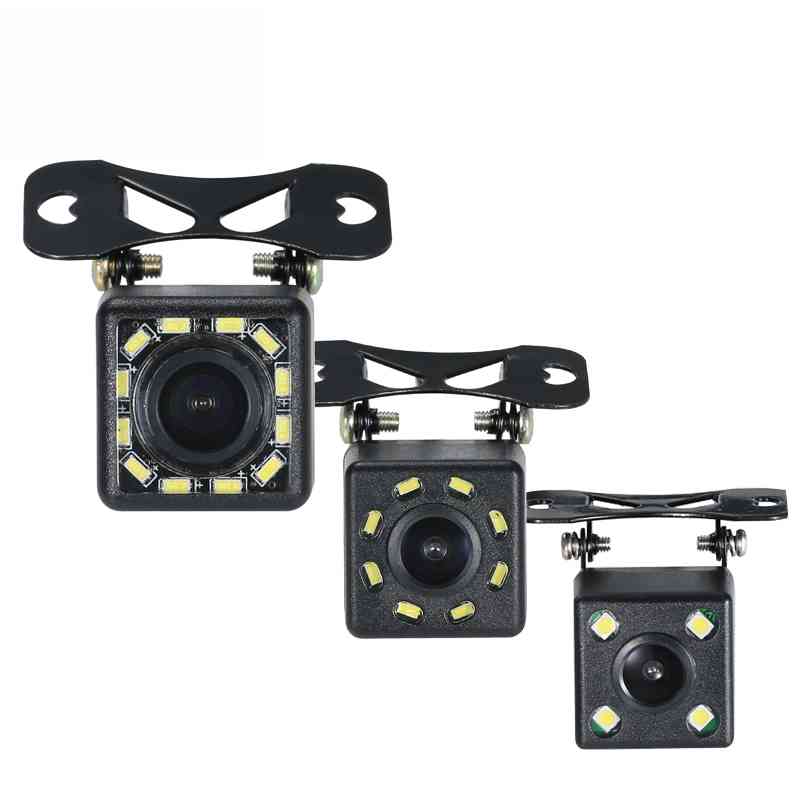

Car Backup Camera 4 8 12 LED light night vision Car Parking Rear View Camera Reversing Backup Waterproof HD CCD Sensor

Installation

1. Red cable ① and ⑤ are connected to the backup light "+"
2. black cable ② is connected to the backup light "-"
3.The reversing detection cable ④（Brown color） is connected to the red cable ③ which extending from the video input cable

Features:

140 Degree Wide Viewing Angle and Built in Parking Line: Our Reverse Camera can Make a Wide View, and have a Parking Line, Let Your Reversing More Safety.

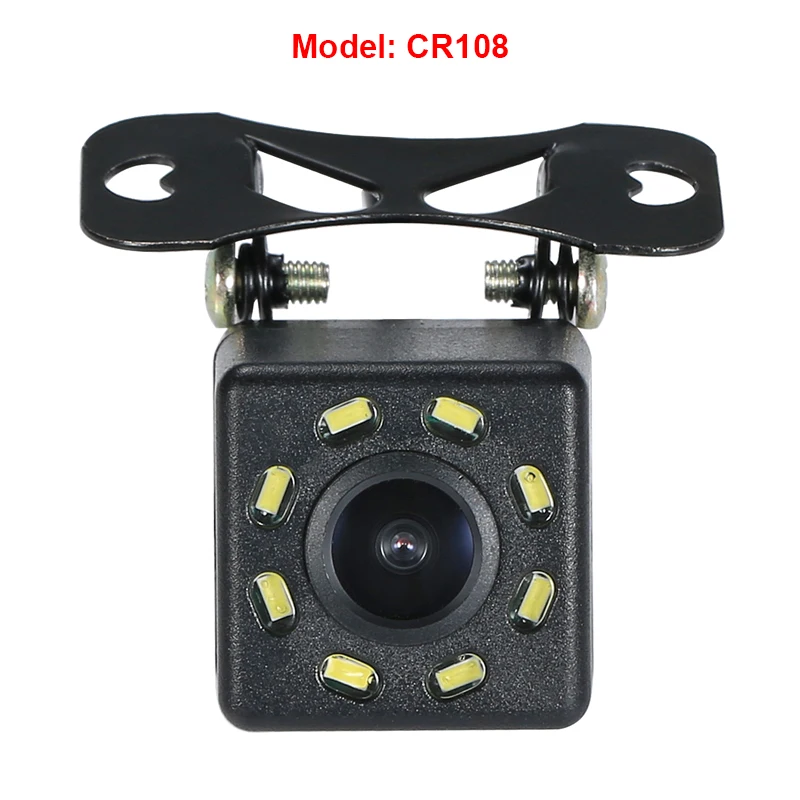

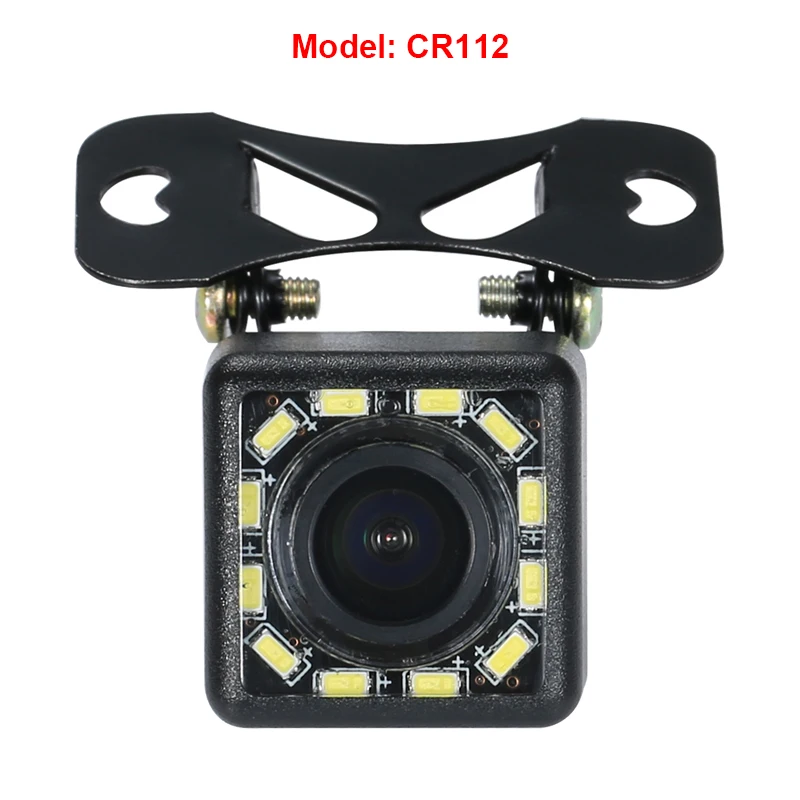

Rear View Camera with 4/8/12 LED Lights for Night Vision, to Make Our Drive More Safety at Night.

IP68 Waterproof/Anti-fog/Shockproof/Dust proof: Our Rear View Camera can Work Good in Any Weather and Road Conditions. It can Work Good in -20℃~ +75℃

Easy to Install :

Easy to Connect Wires, Reverse Camera Power Cable Connect to Reverse Light, Video Cable Connect to Head Unit/Monitor. Applicable to variety of Vehicles: car, truck, RV, mini-van etc

Description Image Sensor:

1/4" PC7090
TV System: NTSC
Effective Pixels: 648H*488V
Resolution(TV line): 420 TV Lines
IP Rating:IP68
Anti-Shake: Yes
Output port: RCA
Power Consumption: Max0.5W
Power Supply: DC +12V
Lens Material: Glass
Camera Material: ABS
Wire Material: PVC
Operating Temperature: -20℃~ +75℃

Package List:

1 * Backup Camera
1 * Power Cable
1 * Video cable (about 19 ft)
1 * User Manual
2 * Fix Screws
1 * Sticker
