Features:

• Upgraded paint thickness gauge. It can measure Fe and NFe.
• The accuracy is increased by 10, the range is extended, the resolution is higher, and the cost performance is higher.
• Used to measure in AUTO test mode and on objects with steel substrates.
• This device is not suitable for measuring metallic paint on cars or similar objects.
• This tester must not be used to test your home appliances (refrigerator, oven, microwave, etc.)

Specifications:

• Measurement range: 0.0 to 2.0 mm, 0 mil to 80 mil
• Accuracy: 2%rdg +-0.1 mm, or 2%rdg+-4 mil
• Resolution:0.1 mm/1 mil
• Power supply: 1 x 3 V button cell, CR2032 or equivalent
• Measuring technology: Magnetic
• Weight: About 23 grams (including button cell)
• Size: As the picture

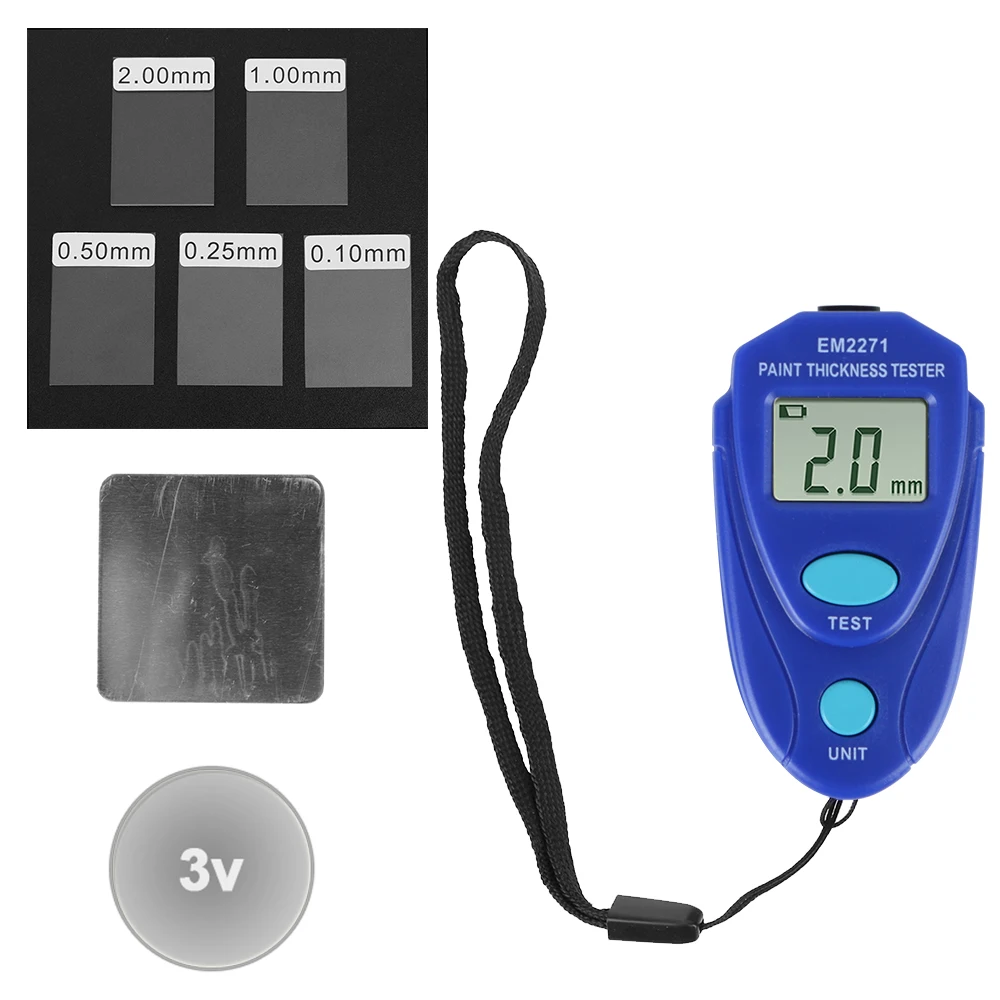

Package included:

• 1*  Car Paint Thickness Gauge Gauge

Note:

• 1. Probe
• Before measurement, place the tester with its probe firmly against target surface.
• 2. Display
• 3. "TEST" button
• （1） Press "TEST" button to turn on the tester. Press and hold down this button for about 1 second to turn off the tester.
• （2）Press "TEST" button to delete the reading on the display,the display will show "- -".
• 4. "UNIT" button
• Press this "UNIT" button to select desired unit: mm or mil
