Golden Lens HD 1080P Upside Down Install Vehicle Reverse Backup AHD Car Parking Camera For 2019-2021 Android DVD AHD Monitor

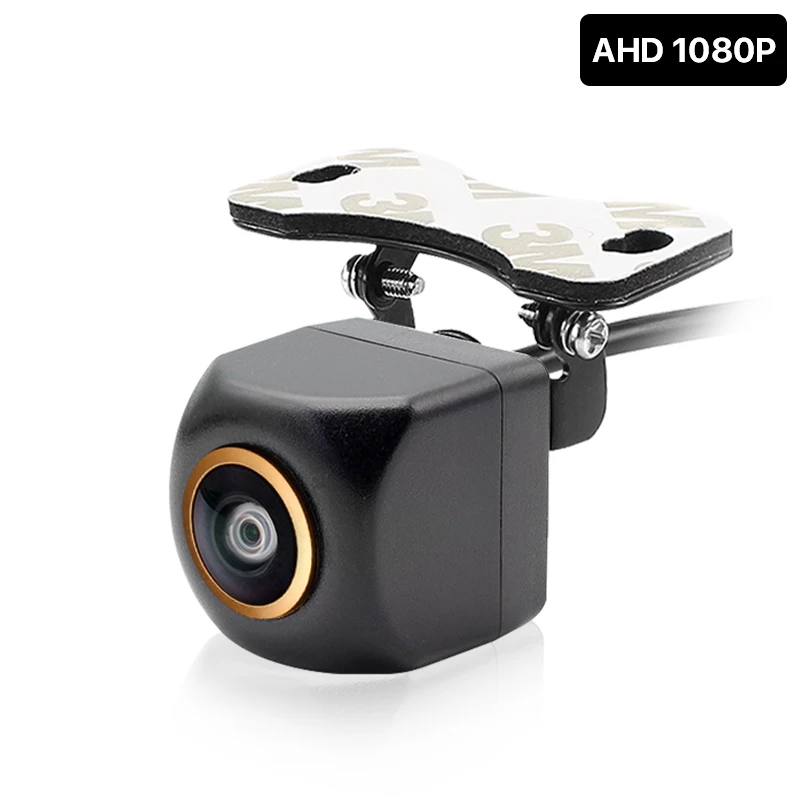

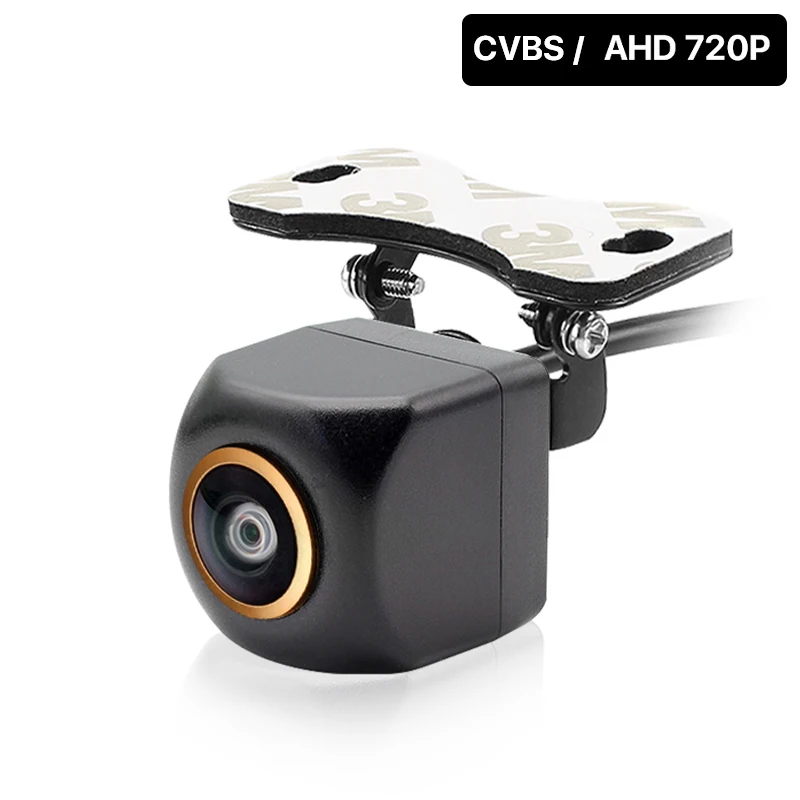

AHD/1920*1080P and AHD/1280*720P Optional :

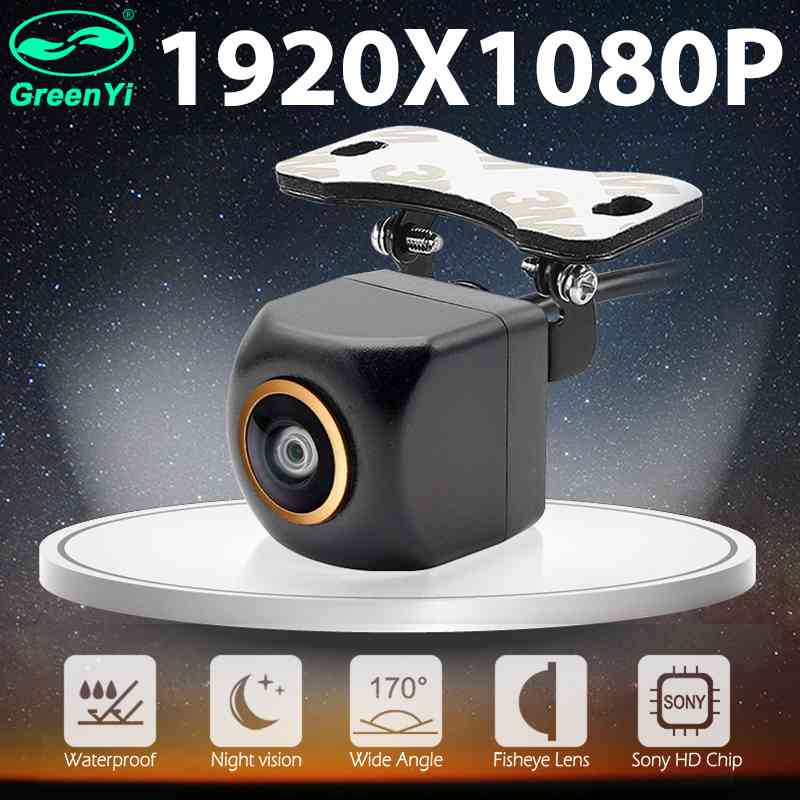

* 1080P UPSIDE DOWN INSTALL CAR BACKUP CAMERA---1920x1080P resolution, high clarity, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect.
* SUPPORT BOTH AHD AND CVBS VIDEO SIGNAL---This car rear view camera can work with both AHD monitors and AHD monitors. Its output video signal is CVBS by default, if you need it to connect with a CVBS monitor, please cut the white cable on the camera and reconnect to power supply.
* GUIDE LINE ON OR OFF ADJUSTABLE---There is a small green switching loop on this reverse camera. When you get it, it is with guide line by default. If you don’t need the guide line, please cut the green loop and reconnect to power supply.
* MINI SOLID ZINC ALLOY SHELL---The back up camera is very small, its shell is made of high quality zinc alloy, shining, shockproof and stainless. Its installation method must be hanging mounted as the picture shows, or the image will be unusual.
* ATTENTION---According to our experience, some cheap Android head units has the setting for AHD video signal , but the truth is that they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.

Camera Size :

Installation Steps:

1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.
2. Connect the power cable to reversing light power supply.
3. Connect the 6m extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.

AHD Camera Feature :

* Chips components : AHD Sony/OV2053HD
* Viewing angle: Real 165 Degrees Visible Range .
* Effective pixels : AHD 1920*1080P , CVBS 1280*720P .
* Signal format: NTSC
* Image resolution: 200W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

Package includes:

1 x Rear View AHD Camera
1 x 6m Video Cable
1 x 1.5m Power Cable
1 x Self-tapping screw
1 x Angle adjustment

NOTE:

* Please test the backup camera before routing video cable from back to front.
* If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
* Some cheap Android head units may also have the setting for AHD 1080P video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.
* If you connect GreenYi backup camera to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* There is a pink color wire on your head unit usually, please connect it with the 6M video cable's triggering wire
* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Ford VW AUDI BMW Mercedes Benz vehicles.
* Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to
