Color	relay battery Sos mic
relay battery Sos mic

Description
Customer Reviews(0)

Item specifics

Brand Name DYEGOO
Origin CN(Origin)
Certification CE
Certification FCC
Certification RoHS
Special Feature Remote Control
GPS type GPS Tracker
Model Name GT06
Screen Size No Screen
certificates FC CE ROHS
Platform yes
APP yes
acc alarm yes
sos button yes
relay yes
Battery 180mah
microphone yes
Speaker yes

Product Description

EXTRA Discount

Two steps to be our shop followers, enjoying 2% more discount! Refresh order pages, price will be changed automatically.

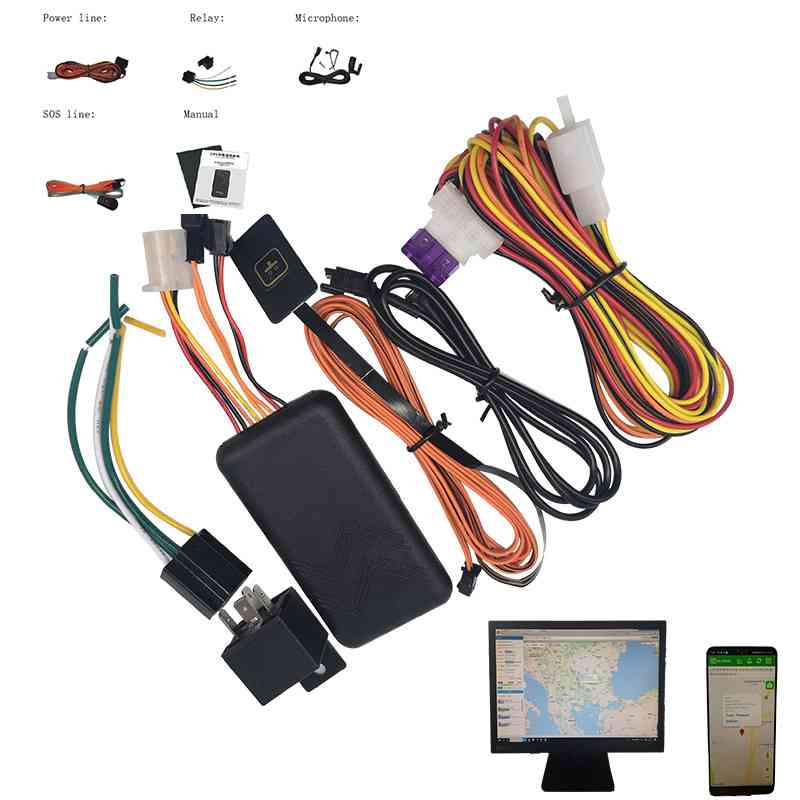

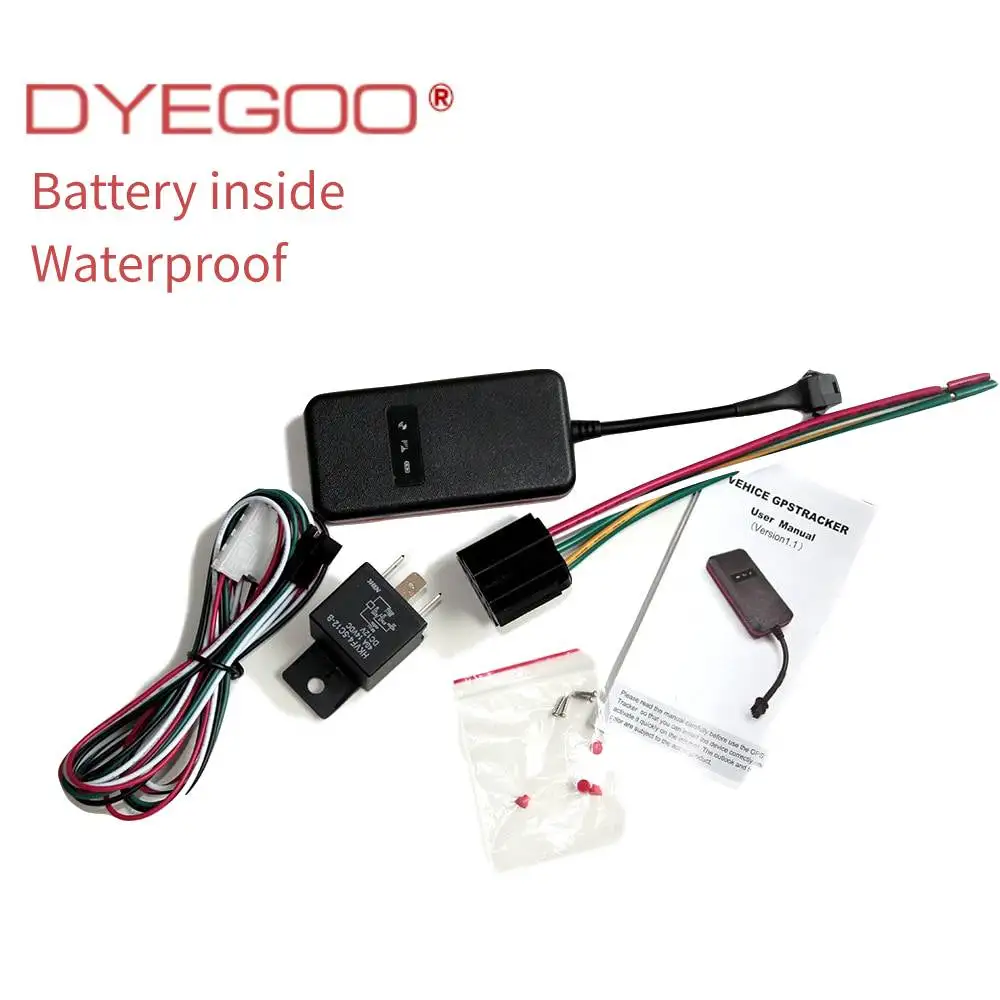

GT06 is a Mini intelligent GPS Vehicle positioning terminal. It combines the GSM wireless communication technology and GPS positioning system technology,terminals using industrial-grade highly integrated design,intelligent power-saving and passive drift suppression,installation is simple,connect the power supply to start work immediately,wide inpute voltage range,wide applicable to all types of cars,motor cycles,electric cars,ships,etc., can provide all-weather,real-time vehicle positioning function,with global positioning service platform,you can achieve remote vehicle management.

Device feature

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.

Overview of the characteristics:

1.GPS position.

2.GSM 850/900/1800/1900MHZ.

3.With Shock sensor.

4.180Mah Battery inside, Power-Cut alarm.

5.Auto set APN.

6.Voltage 9-40V.

7.SOS alarm.

8.Voice Surveillance.

9.ACC alarm.

1. Specification

1).GSM:850/900/1800/1900MHZ

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-40V DC

4).Working current:22mA (12VDC)

5).Working current:12mA (24VDC)

6).GPS locating time:

Cold start:38s(Open sky)

Warm start:32s

Hot start:2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20Celsius~+70Celsius

9).Working humidity:20%~80%RH

10).Measurement:98(L)×52(W)×16.5(H)mm

3.Platform:

The platform free use for 1 year.

Real time tracking platform: www.dyegoo.net

APP:www.dyegoo.net/app

demo account: demo2018

password:123456

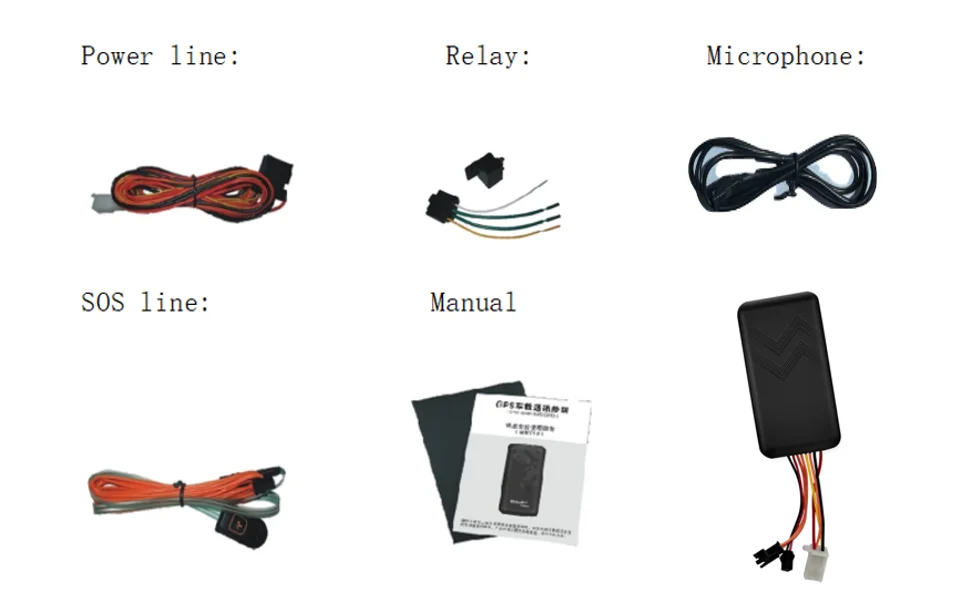

5.Device wiring

6. SMS Commands instruction

1)Administrator Number
Text command	Parameter	Sample
CENTER Add	710#number# 711#number#	710#13500135000# 711#13800138000#
CENTER Del	D01# D02#	D01# D02#
Command Description	1)Center number can control the oil and power and resume factory settings 2) Center number can receive the call and text of vibration alarm and over speeding alarm. 3) SIM must display the income call number to control oil and power. 4) Only one number can be center number. 5) Change center number must resend the command. 6)Add new center number by CETNER,A, and delete by CENTER,D
Command Feedback	Successful Setting:Add admin account 1 OK!

2)View Administrator Number
Text command	Parameter	Sample
View	901#		901#
Command Description	This directive is used to view Device Manager number.
Command Feedback	Successful Setting:Admin1: Admin2:

3)Authorized Number Set
Text command	Parameter	Sample
Authorized Add	101# number # 102# number # 103# number #	1:101#13800138000# 2:102#12345678912# 3:103#12345678912#
Authorized Del	D11# D12# D13#	D11# D12# D13#
Command Description	1) Authorization number for SMS control oil. 2) only three numbers to set the authorization number 3) change the authorization number needs to delete the previous number
Command Feedback	Successful Setting:Add Authorization account 1 OK!

4)View Authorized Number
Text command	Parameter	Sample
View authorized	C10#	C10#
Command Description	This directive is used to view the equipment authorization number
Command Feedback	Successful Setting: Authorization 1: Authorization 2: Authorization 3:

5)APN Setting
Text command	Parameter	Sample
APN Setting	APN#username#password]	1:APN#intenet#123#123# 2: APN#internet#
Command Description	APN differs according to the local telecom operators. For example:APN request password,please refer to Sample 1,and Sample 2 for no password.
Command Feedback	Successful Setting:SET APN OK!

6)Set /ViewServer
Text command	Parameter	Sample
SERVER Parameter	803#SERVER # port#	803#222.217.240.243#8011#
View SERVER	CIP#	1)CIP#
Command Description	Change the IP and port when move to a new server port:10~65535 1 is domain and 0 is IP;
Command Feedback	Successful Setting:set IP OK!

7)Moving Time Interval
Text command	Parameter	Sample
TIMEER Parameter setting	730#uploading interval#	730#20#
Command Description	Time scope:0,10~60 seconds; 0,no data uploading; 10~60,means time interval;the default value is 15 seconds!
Command Feedback	Successful Setting:SET TIMER OK!

8)Static Time Interval
Text command	Parameter	Sample
STATIC	SUP# time interval#	SUP#5#
Command Description	Timescope:1~60 seconds;The device has 3D transmission and the default time interval are 5 minutes.
Command Feedback	Successful Setting:SET STATIC TIME OK!

9)Cancel the continuous upload
Text command	Parameter	Sample
NUP	NUP#	NUP#
Command Description	This command is used to cancel sending data to the platform If need again to restore the upload , you need to send TIMEER Parameter setting.
Command Feedback	SET OK!

10)Power-Cut
Text command	Parameter	Sample
RELAYParameter1	222#	222# cut off oil and power
RELAYParameter2	333#	333# recover oil and power
Command Description	1)RELAY control the start and closeness of the relay 2) Only the center number can operate. 3)the device only cut off the oil circuit on the condition of the driving speed below 20KM/H or in static state. 4)When send the command, the device will reply “please waiting “When the vehicle speed is over 20KM/H, the device will cut off the oil or the power when the speed below 20KM/H.
Command Feedback	Successful Setting:Fuel cut has already been completed OK!

11)GMT
Text command	Parameter	Sample
GMT	801#location, time#	801#E8#
Command Description	The default time zone is Beijing time. If time zone need revised, please operate according to the above command.
Command Feedback	Successful Setting:Set time zone ok!

12)Vibration Sensitivity
Text command	Parameter	Sample
VIBRATION Parameter	123#2#,alarming way#	1) 123#2#3#
Set into vibration alarm time	V123#2#	1) V123#2# 2) V123#1#
Cancel vibration alarm	456#	456#
Command Description	the sensitivity value of the vibration is from 1 to 5,1is the most sensitive and o is close. Alarming ways: 1, calling 2, texting, 3 calling and texting. Must set the center number and receiving number.
Command Feedback	set vibration alarm level,OK!

13)Speeding
Text command	Parameter	Sample
SPEEDING Parameter	SSA#120# alarming way#	1)SPEEDING,120,3# 2)SPEEDING,120#
Command Description	The speed scope is form 60-220, if the speed is no this cope, the alarm is off. Alarming :1, calling 2, texting, 3 calling and texting. Must set the center number and receiving number.
Command Feedback	Successful Setting:set speeding alarm,OK!

14)Reset
Text command	Parameter	Sample
RESET	930#	930#
Command Description	Reset the device
Command Feedback	Successful Setting:Reset system, ok!

15)Factory
Text command	Parameter	Sample
Parameter	940#	940#
Command Description	Restore the factory setting Only center number can initial this function Factory setting will recover to the original setting
Command Feedback	Successful Setting:FACTORY OK!

16)Language Setting
Text command	Parameter	Sample
LANG Parameter	LANG1# LANG0#	LANG1# 1:CHINESE, LANG0#:ENGLISH
Command Description	;When check the location, it will reply the Chinese location in Chinese language setting; while reply the URL link when in English language setting.
Command Feedback	Successful Setting:SET LANG OK!

17)Position
Text command	Parameter	Sample
WHERE	988#	988#
Command Description	Check the longitude and altitude and other information of the device
Command Feedback	Reply with longitude and altitude, speed and IMEL.

18)Google Link
Text command	Parameter	Sample
WHERE	666#	666#
Command Description	Check the location link of Google map
Command Feedback	<Datetime:12-07-05 13:21:30> maps.google.com/maps?q=N22.540885,E113.95265

19)Version
Text command	Parameter	Sample
VERSION	V00#	V00#
Command Description	The command is to check the software version
Command Feedback	VERSION:Xxxx BUILD:2012-07-05 10:12

20)Param Check
Text command	Parameter	Sample
PARAM	886#	886#
Command Description	The command is to check the settings and the default parameter.
Command Feedback	IMEI:351190012535936 APN : cmnet IP:IP and port TIMER: moving uploading interval STATIC: static uploading interval CENTER: center number LANG: language(CN/EN) GMT: time zone (E/W8)

21)Status Check
Text command	Parameter	Sample
STATUS	902#	902#
Command Description	The command is designed for checking the device’s working status.
Command Feedback	External power:ON/OFF GSM Signal:HIGH/MIDDLE/LOW GPS:FIXED/UNFIXED RELAYER:DISABLE/ENABLE Vibrate Warning:ON/OFF Pause:ON/OFF

22)Monitor (Voice Surveillance)
Text command	Parameter	Sample
SSS#	SSS#	SSS#
Command Description	Using Command Send this command to the tracker’s number, the tracker will call back to admin number.
Command Feedback

Installation:

During installation, there should be no power to the

device.

1. Installing SIM card: pls insert a supporting 2G GSM

SIM card. The SIM card used should be enabled for GPRS.

1) Testing SIM card: to test SIM card, please install it into a

normal GSM mobile and ensure it can send and receive

SMS, and enables for GPRS.

2.Please connect the wire with car battery or power with DC12V output,and the max current of the power should>2A,for when searching signal,need more current.

3.Please put the tracker out of the room,and face to sky,should not be under metal cover,for GPS signal only can be received out of the room.

Your device will be auto online when you connect it rightly.

pass:123456

Real time tracking platform:

www.dyegoo.net

APP:

1.www.dyegoo.net/app((Please click UK flag to change to english in advance when you are trying to download.)

2. Search DYEGOO in apple store.

For sms command feeddback, pls set center number firstly, then it will respond your sms command.

Admin account set:

Pls send the admin name and all the device IMEI numbers to me.

We will create the admin account for you.

Pls send sms to sim in the device to set your tel as the admin account:

710#your country code your mobile number#

example Chinese set below:710#008613923792963#

When the admin account is created, you can create sub-account by yourself in the tracking platform and you can operate adding device in the sub-account.

When you create admin account successfully,

You can send sms 886# tocheck gsm and gps signal.

902# to check the device status.
