Item specifics
-
Brand Name
Y&H
-
Origin
CN(Origin)
-
Certification
CE
-
Size
185mm x 180mm x 38.5mm
-
Output Frequency
50HZ/60HZ auto match
-
Output Type
Single
-
is_customized
Yes
-
Output Current
12A
-
Output Power
401 - 600KW
-
Weight
1.6 KG
-
Model Number
SG-600 Series PV Smart Microinverter
-
Operation Voltage Range
18V-50V
-
Maximum Input Power
2*300W
-
Nominal Output Frequency
50Hz / 60Hz
-
Power Factor
>0.99
-
Peak Efficiency
95%
-
Nominal MPPT Efficiency
99.9%
-
Output AC voltage
110V 220V
-
Type
Micro Inverter
-
Function
Solar Inverter
-
Category
Grid Tie inverter
-
Function 2
Grid Tie Inversor

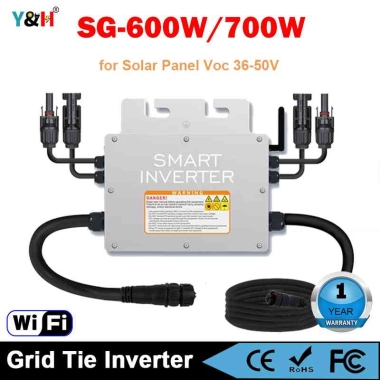

600W 700w Smart Microinverter Pure Sine Wave Power Solar Micro On Grid Tie inverter 24V 36V DC to 110v 220V AC for Solar Panel
SG series inverter has monitoring function, you need to purchase data box separately, if necessary, pleaseclick here
The second-generation SG micro-inverter adds mobile phone communication function, Let you monitor the working status of your inverter anytime and anywhere.This Smart On Grid system improves safety; maximizes solar energy harvest; increases system reliability, and simplifies solar system design, installation, maintenance , and management.
Notice: SG300-700W version. You can buy our AC cord accessories, 700W or higher, it is recommended to use them according to the instructions. Because of the high power, a circuit breaker is required. Regarding the heating problem of the inverter: this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
About inverter repair：（This is a common problem of micro-inverters） After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.
Description:
Grid Tie Inverter Using IP65 waterproof streamline design,Can effectively prevent rainwater on the surface erosion.High performance Maximum Power Point TraCKING(MPPT) and Autolock maximum Power Point (APL) Please do not install outdoors, avoid rain. You can install it in a ventilated, dry, cool place.
Feature:
1.Single unit connects to one PV module
2.On Grid Tie Inversor Maximum 600W AC output power 3.Single-phase output, Flexible 3-phase PV systems4.2.4G wireless communication and monitoring5.Solar Grid Tie Inverter Up to 8 units (230V) per branch6.Customizable various input (DC, PV) voltage range7.Integrated AC bus cable, Ready-To-Use8.On Grid inverter Low cost, Easy installation
Basic StructureDimensions
Notice: SG-600W/SG-700W internal upgrade Dual-chip inverter: function and output are independently controlled with faster control speed and higher efficiency. The old version is a single-chip control function and output.
Solar micro-inverters Product Parameter
Product Series | SG600 Series | Model | SG600MD (Regular) | SG600HD (Custom-made) | SG600TD (Custom-made) | Input Data(DC,PV) | Number of Input MC4 Connector | 2 set | 2 set | 2 set | MPPT Voltage Range | 24V-40V | 36V-60V | 80V-115V | Operation Voltage Range | 18V-50V | 30V-70V | 70V-120V | Maximum Input Voltage | 50V | 70V | 120V | Startup Voltage | 18V | 30V | 70V | Maximum Input Power | 2*300W | 2*300W | 2*300W | Maximum Input Current | 2*12A | 2*8.3A | 2*3.7A | Output Data(AC) | Single-Phase Grid Type | 120V & 230V | Smart Microinverter Rated Output Power | 590W | Maximum Output Power | 600W | Nominal Output Current | @120VAC : 5A / @230VAC : 2.6A | Nominal Output Voltage | 120VAC / 230VAC | Default Output Voltage Range | @120VAC : 80V-160V / @230VAC : 180V-280V | Nominal Output Frequency | 50Hz / 60Hz | Default Output Frequency Range | @50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz | Pure Sine Wave inverter Power Factor | >0.99 | Total Harmonic Distortion | THD <5% | Maximum Units per Branch | @120VAC : 4 units / @230VAC : 8 units | Efficiency | PV Solar Micro Inverter Peak Efficiency | 95% | CEC Weighted Efficiency | @120VAC : 92.5% / @230VAC : 93.5% | Nominal MPPT Efficiency | 99.9% | Night Power Consumption | <700mW | Mechanical Data | Operating Ambient Temperature Range | -40°C to +65°C | Storage Temperature Range | -40°C to +85°C | Solar PV inverter Dimensions (W x H x D) | 185mm x 180mm x 38.5mm (not include connectors and cable) | Weight | 1.5kg | Max Current of AC Bus Cable | 20A | Waterproof Grade | IP65 | Micro solar Smart Inverter Cooling Mode | Natural Convection - No Fans | OtherFeatures | Communication(Inverter to DataBox) | 2.4G Wireless | Transformer Design | High Frequency Transformers, Galvanically Isolated | Integrated Ground | Equipment ground is provided by the PE in the AC cable. No additional ground is required. | Protection Functions | Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
|
|
Product Series | SG700 Series | Model | SG700MD | SG700HD | SG700TD | (Regular) | (Custom-made) | (Custom-made) | |
Input Data(DC,PV) | Number of Input MC4 Connector | 2 set | 2 set | 2 set | MPPT Voltage Range | 24V-40V | 36V-60V | 80V-115V | Operation Voltage Range | 18V-50V | 30V-70V | 70V-120V | Maximum Input Voltage | 50V | 70V | 120V | Startup Voltage | 18V | 30V | 70V | Maximum Input Power | 2*350W | 2*350W | 2*350W | Maximum Input Current | 2*14A | 2*9.7A | 2*4.3A | Output Data(AC) | Single-Phase Grid Type | 120V & 230V | Rated Output Power | 650W | Maximum Output Power | 700W | Nominal Output Current | @120VAC : 5.4A / @230VAC : 2.8A | Nominal Output Voltage | 120VAC / 230VAC | Default Output Voltage Range | @120VAC : 80V-160V / @230VAC : 180V-280V | Nominal Output Frequency | 50Hz / 60Hz | Default Output Frequency Range | @50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz | Power Factor | >0.99 | Total Harmonic Distortion | THD <5% | Maximum Units per Branch | @120VAC : 4 units / @230VAC : 7 units | Efficiency | Peak Efficiency | 95% | CEC Weighted Efficiency | @120VAC : 92.5% / @230VAC : 93.5% | Nominal MPPT Efficiency | 99.90% | Night Power Consumption |
