5V convert adapter for different car DVRs with FM transmitter function and lower protection function



Main features:

•  lower the voltage from 12V to 5V for the most mirror car DVRs in the market

•  FM function is integrated into it, this is design for the android mirror car DVR, as below model

•  the wire can be hidded and make the car clean compare to the car charger

• your car DVR will not restar every time you start the car engine

• when the votlage of your car battery is lower than 11.6V, it will cut the power supply, so that the car battery will not drain out.

• support the car DVR parking monitor function

Specification

• Material: ABS

• Cable: 1meter + 2.5 meters

• Voltage input: DC 12-24V

• Voltage output: DC 5V

• Current output: 3.0A

• Connection: Mini USB port

• Package: Opp bag

Warm tips:

• If your car DVR is the hot item such asE08, G07, E06 and C08 in the market,then it can fit them,for it is integrated into the FM transmitter function.

• Its cable is 1meter +2.5 meters.

• You can connect the red wire to the ACC 12+ or the constant power 12+ power

For the your 3G & 4G andorid car DVR, when you use it, no need to worry the FM transmitter function will disappear.
For this function is also integrated in our S2 convert adapter, this is diferent from other adapter in other store.



Support the parking monitor
You can connect it to your car battery directly, then the parking monitor function of your car DVR is avialble.
your car will become more safe even you park it in the lot.




Car DVR will be on all the time with this adapter.
suppose without the adapter, when you open the car engine, the car DVR need to start, then enter into the main UI.
while with this adapter, the car DVR will enter into the main UI once you open the car engine. for the car DVR can be all all the time.




Cut the power supply when the voltage of your car battery is lower than 11.6V.
It is euipped with one smart chip, that can detect the voltage in your car battery.
thus you do not need to worry the car battery will drain out.




With one adapter, there will not the wire mess in the car, make you feel clean always.
it will be more safe for the driving and pessenger.


How to install it?


There are two installation way:
1) please connect the black tab to the GND
2) you can connect the red tab to the ACC 12V, with this, that mean only when you oppen the car engine, the car DVR will get power.
3) you can connect the red table to the constant 12V B+, that mean the car DVR can get the power all the time.
    only in this case, the car DVR will be in parking monitor function all the time, please note.

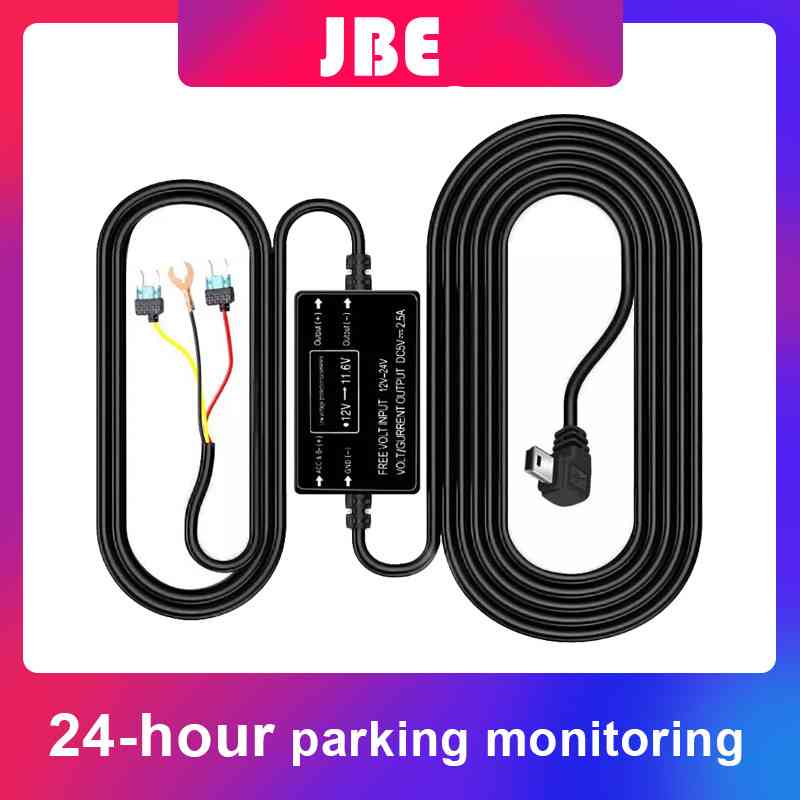

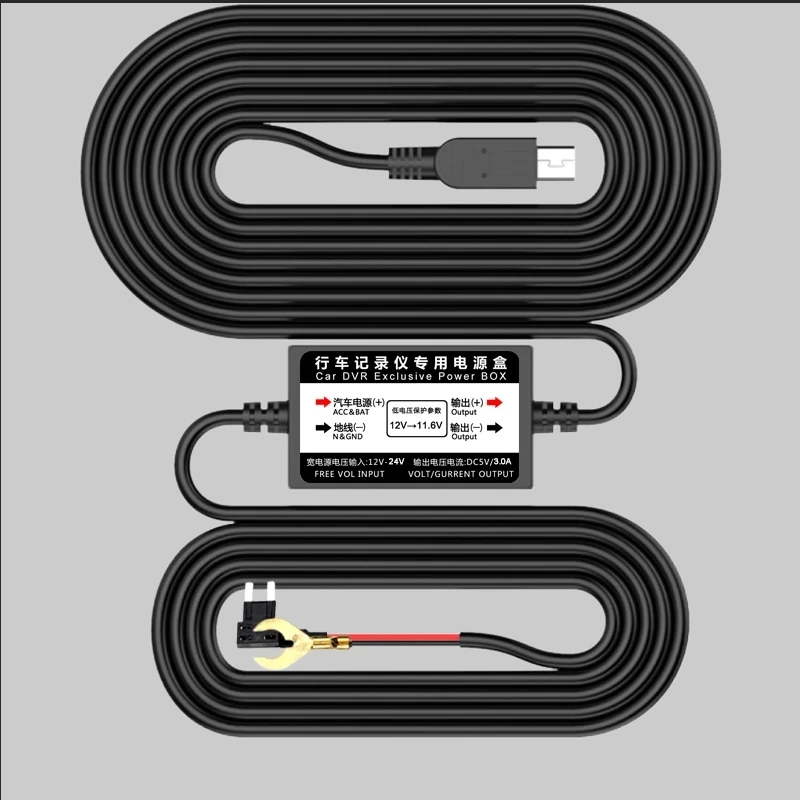

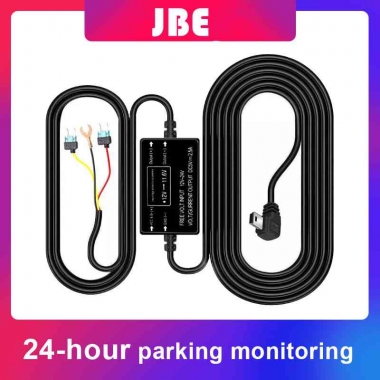

Item Real Photo
These are the photos I take with my iPhone 5S, so if you order, what you will get it like this one.



Package with one opp bag, its weight is about 120g/pcs
