Item specifics

Brand Name TOPGNSS
Model Name GG-1802
GPS type Receiver & Antenna
Output level:: UART
Working voltage: 3.3-5.4V
Working mode: : GPS+GLONASS(default)GPS GALILEO
GNSS chip M8030-KT
dimension: 18*18*8mm
FLASH: 4M
connector 1.0mm spacing 5pin connector
Working status indicator: red flashing
Refresh rate: 1HZ (default)(5-10Hz)
NMEA 0183 V2.3 4.x
Baud Rate: 9600 (default) settable
cold start: 28s
band: GPS L1 GLONASS L1 SBAS L1
hot start: 1s
weight: 7.2g

Product Description

Product highlights: 1. M8030-KT GNSS CHIP AND 18*18*4mm high sensitivity GPS antenna Design 2.Using 0.5PPM KDS high precision TCXO 3. built in RTC crystal and skin capacitance faster thermal initiation 4.1-10Hz location update rate 5.Support the positioning of PPS indicator: positioning success after flashing. 6.Support Online AssistNow and Offline AssistNow and other A-GPS services 7.GPS, GLONASS SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine

Default output: 1HZ

(can be set 5-10HZ) The default baud rate: 9600 (can be set 19200 4800 38400 115200)

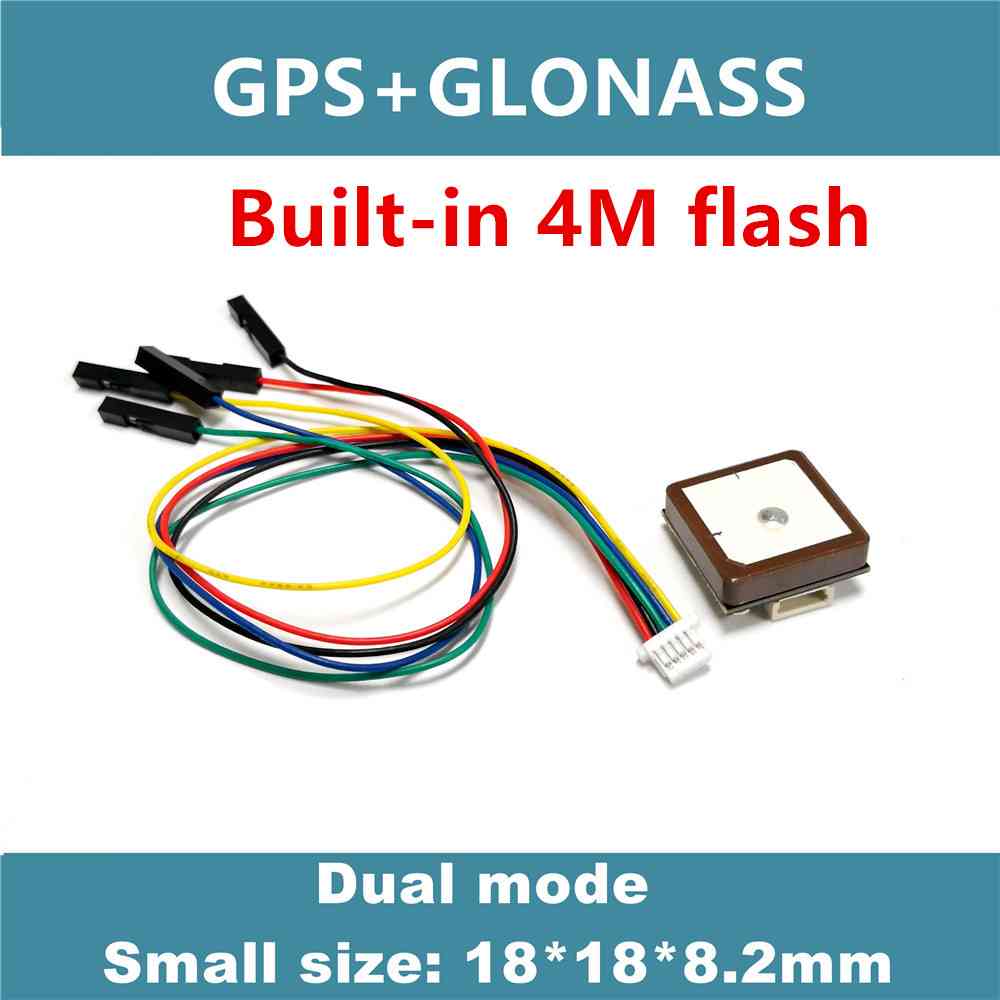

Small volume GPS module, including connector weight: 7.2g. Size only 18*18*8.2mm

Internal integrated LNA low noise amplifier circuit design, integrated FLASH, can be easily integrated in The handheld wearable GPS GLONASS equipment and the aeronautical UAV equipment are required for volume. Support refresh rate: 1-10Hz settings save Support baud rate: default 9600 (save settings: 4800-38400-57600-115200) 1802

Physical characteristics
PIN	5 pin 1.0pitch VCC 3.3-5V.GND .TX.RX.PPS.
Dimensions	18mm 18 mm 8.2mm
Operating Voltage	3.3V-5.0VDC ±5%
weight	5.5g
Connector form	1.0 5 PIN
Cable length:	15 CM
Operating temperature	-40 to 85° C
Storage temperature	-40 to 85° C

Packing list: GNSS module 1PCS GG-1802 stoton gnss Module

We can provide OEM, ODM service, if you need to buy more quantity, please contact our customer service staff, thank you! Packing list: GNSS module 1PCS GG-1802 stoton gnss Module
