Sony IMX323 Sensor

Both camera equipped with Sony IMX323 image sensor, f/1.8 aperture and 6-glass lens, greatly enhances the video quality and captures sharp footage in low-light conditions.

2 Ways to Install

Hidden Adhesive Sticker Bracket + Suction Cup Bracket

Build-in WiFi

Download the "TimaCam" or "Roadcam" app and connect the B80 Dash Cam via WiFi to viewing real-time footage or videos, downloading videos to your phone easily and sharing your trip with friends. Also can get instant control of your dash cam setting Video Resolution/Photo Resolution/G-Sensor/Loop Recording/WDR/Motion Detection and so on.

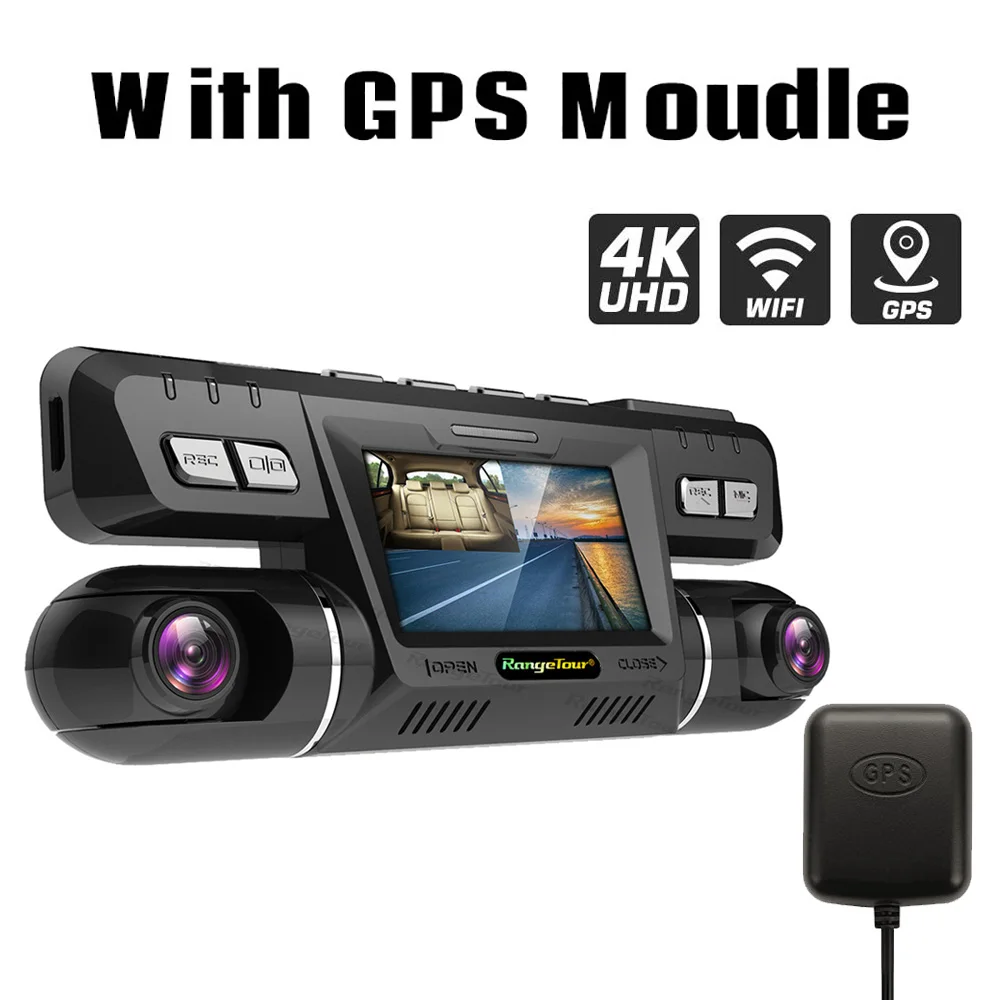

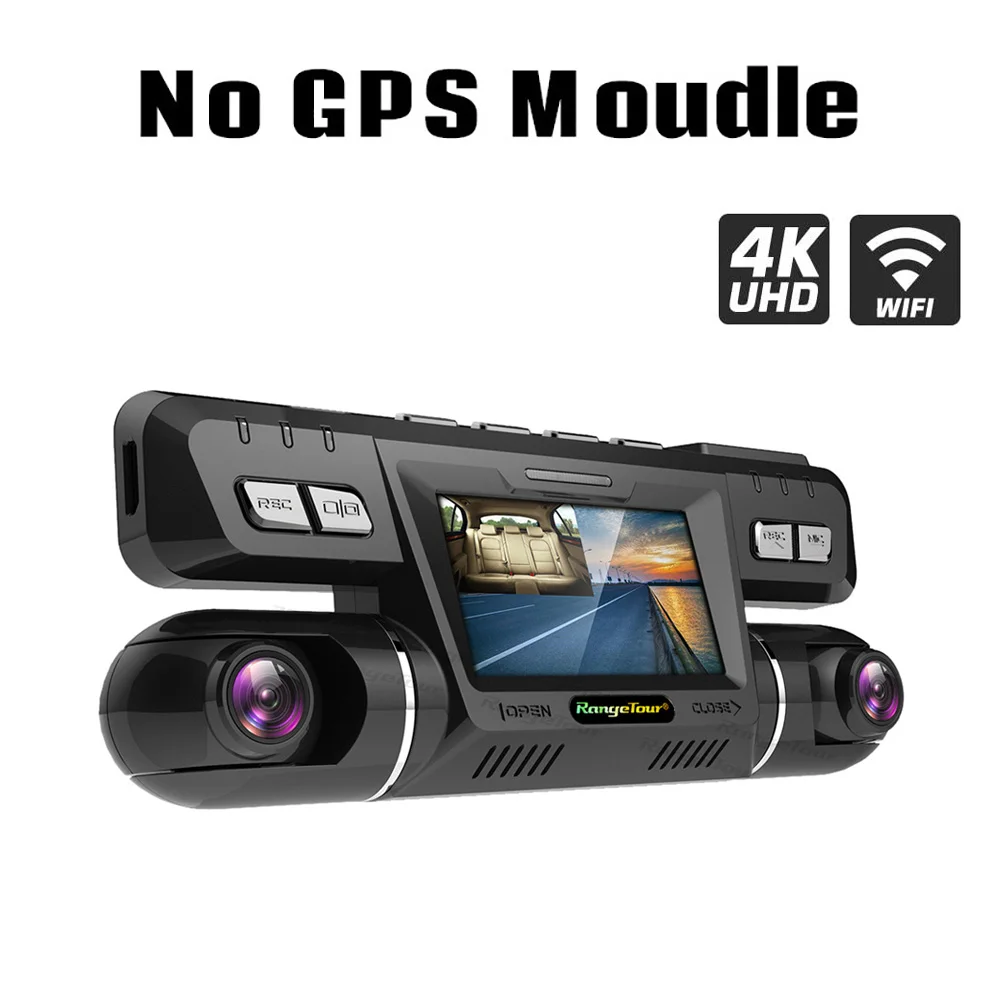

GPS Logger

GPS module(Optional) accurately logs your vehicles location, speed, latitude, longitude and route. And can be view on Google Map by "Roadcam" APP, or GPS player in computer.

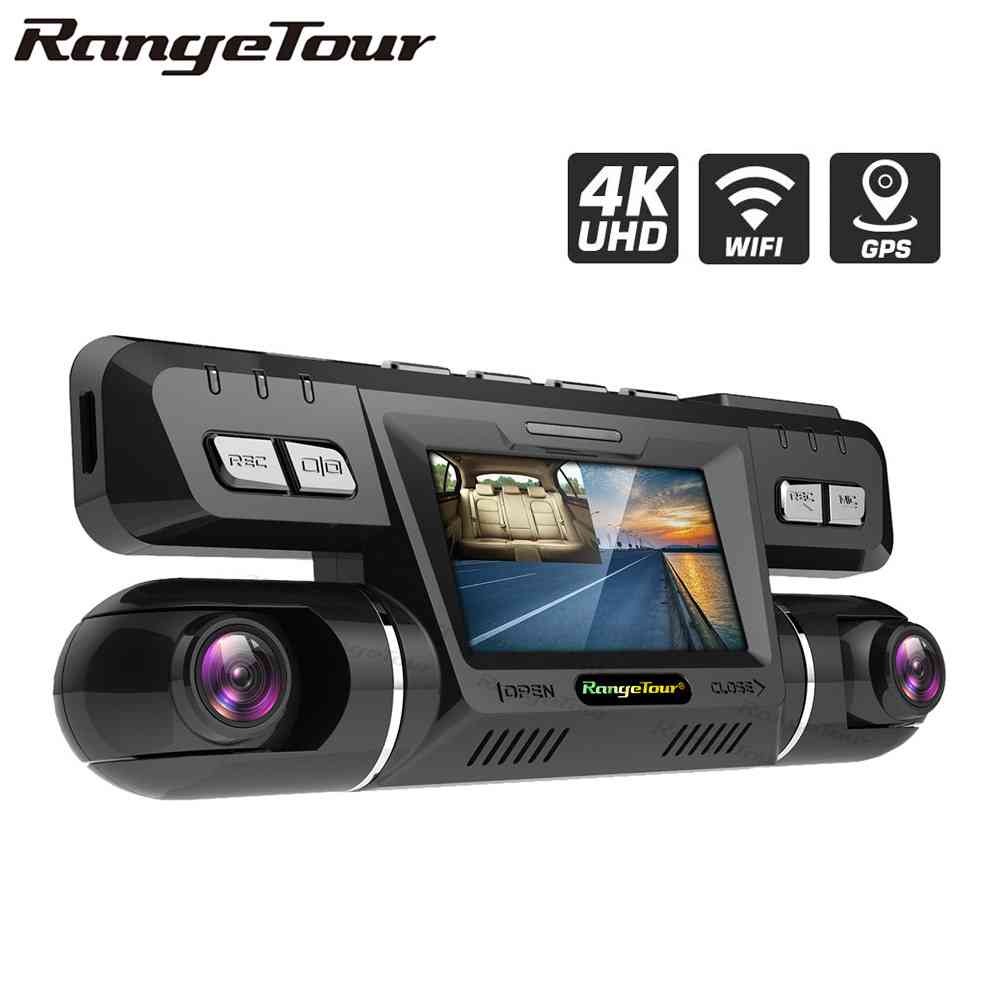

Dual Rotatable Lens

Both cameras can be rotated 180 degrees forward and backward, 180 degrees up and down, more flexible and fun for your journey. Especially for a family travel, Taxi driver.

Dual 170 Degree Wide Angle Lens

Dual 170 degree wide angle lens offers a larger image, captures bigger scene for avoiding missing spot.

Super Night Vision

Super Night Vision, Sony IMX323 image sensor 1/2.9 inch light-sensitive components, 4 IR lights, f/1.8 aperture and 6-glass lens, can capture clear videos and photos even in low-light night conditions.

WDR Function

WDR technology will automatically compensates for light/dark spots and balances exposure, makes all scene details are recorded vividly.

ADAS(FCWS/LDWS)

LDWS: Lane Departure Warning System
FCWS: Forward Collision Warning System

Seamless Loop Recording & G-Sensor

Footage is stored in loops of 1/3 minute segments according to your setting. Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity. G-Sensor will lock footage in the event of an accident, the locked fragments will not be overwritten.

Super Capacitor (No Battery)

Built-in Super Capacitor. Prevent explosion, the camera can operate smoothly in high temperatures. Please always connect the dash cam to car charger while it is in use.

Specifications:

Processor: Novatek 96660
Image Sensor: Dual Sony IMX323
Video Resolution: Single Channel: UHD 2160P/QHD 1440P/FHD 1080P; Dual Channel: FHD 1080P +FHD 1080P
Photo Resolution: 12M/10M/8M/5M/3M/VGA
Aperture Range: inside F1.8
Decode Format: H.264
Lens Angle: Dual 170 Degree + 170 Degree
Screen: 2.0 inch TFT LCD
Video format: MP4
Photo format: JPG
WiFi: Yes
GPS Logger: Yes(Optional)
Super Night Vision: Yes
WDR: Yes
ADAS: Yes
G-Sensor: Yes
Loop Recording: OFF/1min/3min
Auto Power ON: Yes
Auto Power OFF: 1min/2min/3min/5min/10min
Motion Detection: Yes
Exposure: -2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3,+5/3,+2.0
Picture in Picture: Yes
MIC: Yes
Battery Capacity: Built-in Super Capacitor (No Battery)
Power Interface: 5V 1A - 2A
Language: English/Russian/French/Spanish/Portuguese/Germany/Italian/Chinese/Japanese/Korean
Max External Card Supported: TF 256G(not included)
Product size (L*W*H): 17*7*4cm/6.69*2.76*1.57in

Package Included:

1 x Car DVR Recorder
1 x Car Charger
1 x 3M Adhesive Sticker Bracket
1 x Suction Cup Bracket
1 x User Manual
8 x Free Gift
1 x GPS Moudle (Optional)

Warm Tips:

- Micro SD card required: Requires class10 card or above. We recommend use our micro SD card which is custom made for Car DVR. Please format the micro SD card on your dash cam before you can use it. You can find the format option on the menu.
- No built-in battery, replaced by super capacitor. Please always connect the dash cam to external power cord while it is in use. This dash cam has the "Auto Power Off" feature. When there is no external power connection, the dash cam will shut down, and time and date setting will be saved.
- Strongly suggest use original car charger.
- Super night vision capabilities to capture clear image in low-light conditions(except no light condition).
