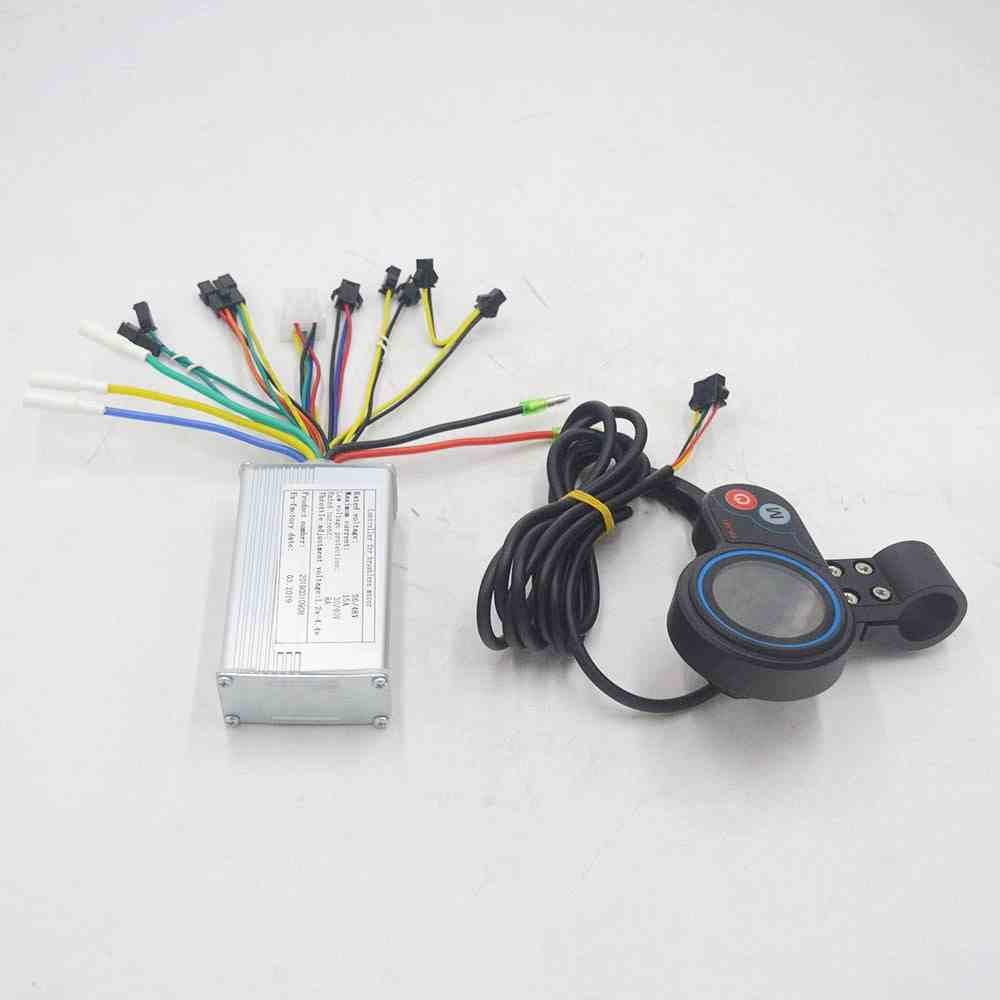

ebike controller kit 250W 350W 36V/48V DC Mode escooter Brushless Motor Controller with electric bike LCD

Product Details:

24V:19+-0.5V

36V:29+-0.5V

48V:39+-0.5V

250W:13A+-1A

350W:15A+-1A

1. Red line:
positive input of power supply

2. White line:
controller electric door lock

3. Black line:
negative power supply

4. Green Line:
Communication Receive

5. Yellow line:
communication launch

一. Working voltage: DC 36V/48V compatible (buyers can set by themselves according to their needs)

Features:

1. Display
function Speed display, battery indicator, fault prompt, total mileage, single mileage

2. Control and setting functions

Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight
brightness setting, start Mode setting,
driving mode setting, voltage level setting, controller current limit setting, USB charging function,

3. Communication
protocol: UART

All contents of the display (full display within 1S after power on)

Total mileage ODO, single mileage TRIP, digital voltage display VOL, fault

code ERR：0-13 Represents the following questions：

0 Normal state

1 reserved

2 brake

3 Power-assisted sensor failure (cycling sign) not implemented here

4 6KM/H cruise

5 Real-time cruise

6 Battery undervoltage

7 Motor failure（if not connect controller hall aslo will show this error07 ）

8 Handlebar failure

9 Controller failure

10 Communication reception failure

11 Communication sending failure

12 BMS communication failure

13 Headlight failure

4. Settings

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;

P02: Mileage unit, 0: KM; 1: MILE;

P03: Voltage level: 24V, 36V, 48V, default 36V;

P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;

P05: Power-assisted gear position: 0: 3 gear mode;

P06: Wheel diameter: unit, inch; precision: 0.1;

P07: Number ofspeed magnets: range: 0-255;

P08: Speed limit: range 0-100km/h, unopened

P09: Zero start, non-zero start setting, 0: zero start; 1: non-zero start;

P10:  Drive mode setting

0: Power-assisted drive (how much power is output through the power-assisted
gear, at this time

The handle is invalid).

1: Electric drive
(drive through the handlebar, at this time the assist gear is invalid).

2: Power-assisted drive and electric drive coexist at the same time

P11: Assist sensitivity setting is not enabled

P12: Power-assisted start intensity setting is not activated

P13: Type setting of power-assisted magnetic steel plate is not activated

P14: Controller current limit setting default 12A range: 1-20A

P15: Controller undervoltage value

P16: ODO reset setting Long press the plus key for 5 seconds ODO reset

P17: 0: disable cruise, 1: enable cruise; automatic cruise is optional (only valid for No. 2 protocol)

P18: Display speed ratio adjustment range: 50%~150%,

P19: 0 gear enable bit, 0: including 0 gear, 1: not including 0 gear

P20: 0: No. 2 protocol 1: 5S protocol 2: Standby 3: Standby

二. Introduction to buttons and interface:

1. In the shutdown state, long press the power button to turn on; after booting, short the power
button, the interface is in ODO,Switch between TRIP and VOL

2. In the power-on state, long press the power button to turn off, and short press the MODE button
to switch gears in the GEAR area (there are 1, 2, 3 gears);

3. Long press the power + MODE button to enter the power-on password and menu setting selection
interface (S0 interface). In the S0 interface, short press the power button to switch the number of password digits, and short press the MODE button to change the current digit value;

3.1 After entering "1111", long press the power button to enter the S1 interface, short
press the power button to switch the digits of the password, short press the MODE button to change the current digit value, after the password is modified,  press and hold the power button at the same time to exit the S1 interface to the normal display interface , And save the password set last time (Note: You need to enter this password next time you turn on the machine. If the password is set to "0000", it is in a state of no password (the default is no password when shipped. If the buyer does not understand the rules, please do not set a password) , The next time it is turned on, it will directly enter the normal display interface).

3.2 After entering "6666", long press the power button to enter the menu setting interface, in any parameter state, short press the power button to switch parameters, short press or long button MODE to increase or decrease the value (long press the power button to change the direction of value addition and subtraction , “A” on the left means increasing the value, and “d” on the left means decreasing the value). After the modification is completed, short press the power button to switch to the next parameter and save the previous parameter value; after the parameter modification is completed, it will be long again Press the power + MODE button to exit the setting interface, or wait for 8 seconds to automatically exit and save the parameters.

4. Operation of
the backup "3745" password，If you forget the password when powering on, enter the “3745” backup password and press and hold the MODE button for 10 seconds to enter the normal interface.

1. battery +

2. battery ndash

3. electric brake

4. light or horn line（yellow+, black-）

5. PAS（pedal assist sensor）

6. Hall line

7. display line（throttle line）

8. self-learning line

9. motor line

(1.Contact the motor line

2.Contact the battery line(red:+ , black:-)

3.Contact the hall line

4.Contact the display line

5.Docking the two self-learning lines, turn on the power supply of the electric vehicle, twist display throttle, the motor will forward or reverse.

(Separate the self-learning line when the forward transmission can be.

if the reverse, Separate the self-learning line. then Docking the self-learning line again, Separate the self-learning line when the forward transmission can be.)

6.Other functions can be connected as needed.)
