Sensor Size	Module Cable 48V

Description
Customer Reviews(0)

Item specifics

Brand Name USAFEQLO
Type ip camera
Supported Operating Systems windows xp Windows 7 Windows 8
High Definition 4.0 Megapixels
Lens (mm) 3.6mm 6mm 8mm 2.8mm
Style Box Camera
Certification NONE
Connectivity RJ45
Smart home platform Other
Origin CN(Origin)
Installation Normal
Wall Bracket Ceiling
Power Consumption(W) 3W
Color Black
Minimum Illumination(Lux) 0.0001/0.0001
Sensor CMOS
Megapixels 4MP
Sensor Brand SmartSens
Storage None
Alarm Action Email Photo Local Alarm
Video Compression Format H.264 H.265
Power Supply With POE
TF Card None
IR Distance(m) Based on LED
is_customized Yes
Power Supply(V) Based on Cable
Model Number IVG-N4
Viewing Angle 100°
Technology Infrared
Dimensions (L x W x D)(mm) 38x38 mm
Supported Mobile Systems Android iOS
Network Interface RJ-45 10/100Mb Ethernet Slot
Audio Output None
High Definition 4MP
Resolution 2560*1440
LED Support
IR Cut Filter Soft
Single H.265++
Face/Human/Motion Detection Support
Material PCB
Two Ways Audio Support
NVR XMEYE NVR
Sensor 4MP SC401AI
Chip NT98562

Product Description

Customizable Motion Detection Events

You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.Smart AI Face Recognition/Face detection/face playback

AI face detection is more easy to catch the detail arround you . When someone invades, the USAFEQLO security camera can clearly capture the details of the person's face and protect your property at all times.

H.265+

H.265 More Clear , Hd Resolution Offer You Best Image Quality In a Lower Bit Rate.
Save More Storage Space,Can Reduce 50% File Size

Remote Access Anytime, Anywhere

No matter where you are, you can Through mobile APP remotely access the camera to seeMulti-system compatibleItem Details

Support remote view via windows PC,iPhone,Android mobilePackage information:

If you choose"No Lens", the package not include IR-CUT

if you choose "2.8mm,3.6mm,6mm,8mm" the package is include a free IR-CUT

* We only send the camera assembly, you need to install it yourself

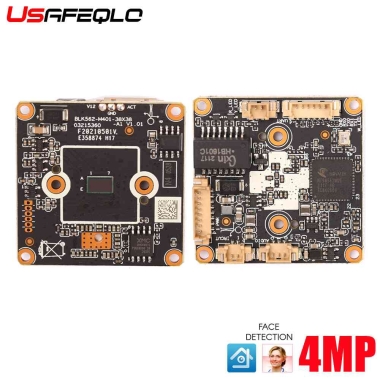

Model	N4
System structure	Embedded RTOS,dual-core 32bit DSP(NT98562),pure hard compression ,watch dog
Sensor	4.0M 1/3"SC401AI Low illumination CMOS sensor,color [email protected],black/white [email protected]
Video compression	H.265(Compatible with H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output	Main stream: 25601440@25fps,23041296@25fps,19201080@25fps; sub-stream: 800448@25fps;
Shutter	1/50(1/60)s to 1/10,000s
Day and night	Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Lens	2.8,3.6,6,8mm (Optional)
Noise reduction	Support 2D/3D
Wide dynamic	Support digital
Audio compression	G.711,support bidrectional talk,audio&video synchronization
Audio interface	1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface	1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Reliability	Comprehensive lightning protection, 7 * 24 hours -10℃～65℃high temperature stable and reliable testing
Intelligence analysis	Supporting Face detection,Humanoid detectionn, and supports customization of other smart functions etc.
Other function	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;
LED	Support Infrared LED, Warm LED,Dual LEDs High Level
ONF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V/2A input, power consumption:≤3W,
Dimension	38mm*38mm
