Item specifics
-
Brand Name
ZJIVNV
-
Origin
CN(Origin)
-
Certification
CE
-
Output Current
Other
-
is_customized
Yes
-
Output Frequency
50/60 HZ
-
Model Number
SC-120-12
24V
-
Output Type
Single
-
Output Power
101 - 200W
-
certificate
CE RoHS
-
Product size
159/97/38 mm
-
Output power
120W
-
Warranty years
2 years
-
Output Current
10A
5A
-
Output Voltage
12VDC
24V

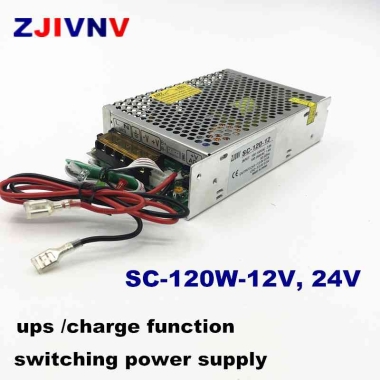

ups switching power supply 120w 12v 24V with UPS/ Charge function ac 110/220v to dc 12v 24VDC Battery Charger SC-120W-12V 24V
Feature&Advantages: AC input selectable by switch Protections:short circuit/overload/over voltage Cooling by free air convection 100% full load burn-in test Low cost,high reliability no requirements for the type of battery, lead, lithium and other batteries are OK!UPS FUNCTION: long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
Specificate: Model | SC-120-12 | SC-120-24 |
output | DC voltage | CH1:13.8V | CH1:13.4V | CH1:27.6V | CH2:26.5V | Voltage tolerance | ±1% | ----- | ±1% | ----- | Rated current | 8A | 0.5A | 4A | 0.3A | Current range | 0~8A | ----- | 0~4A | ----- | Rated power | 117.1W | 118.4W | Ripple&noise | 120mvp-p | ----- | 180mvp-p | ----- | DCvoltage ADJ.range | CH1:11.3~14.9V | CH1:21.3~29.8V |
input | Voltage range | 90~264VAC,127~370VDC | frequency | 47~63HZ | AC current | 2.8A/115VAC,1.4A/230VAC | efficiency | 81% | 83% | Inrush current | Cold start current 30A/115VAC,50A/230VAC | Leakage current | < 1mA/240VAC |
protection | Over load | Rated output power110%~150% start over load protection | protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed | Battery protection At low voltage | 9.5~11V | 20~22V | protection mode:cutoff output | Function | UPS introduction | long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs |
|
|
| safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | Fitstandard | Safety standard | Compliance to UL60950-1 | EMC standard | Compliance to EN55022,CLASSB | others | Dimension | 159*97*38mm (L*W*H) | Weight/packing | 0.56kg/45pcs/26kg/0.041m⊃3;/1.45CUFT |
Picture shows:
|
