Item specifics
Product Description

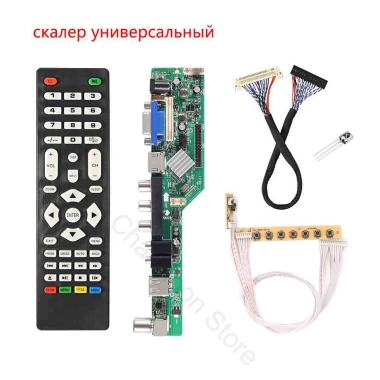

Product Description: Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.Suitable for :Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions. Feature: Support Digital Signal and Russian OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video) Power Input: DC 12V 4A Audio output power: 2x8W Consumption: operating mode -> = 6W simple - <0.3W Video input: TV: DVB-T , DVB-C, ANALOG TV (ATV) HDMI VGA AV IN YPbPr Additional inputs outputs: audio mini jack 3.5mm USB USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.How to know if your panel suitable for this board?Step 1: Find your LCD model's resolution (you can check the resolution from thislink:http://www.panelook.com/index.php)Supported resolutions:Supported resolutions: 1024 X 600 6 bit 1 channel 1024 X 768 8-bit 2 channel 1024 X 768 6-bit 1 channel 1024 X 768 8-bit 1 channel 1280 X 768 8-bit 1 channel 1280 X 800 6-bit 1 channel 1280 X 1024 8-bit 2 channel 1366 X 768 8-bit 2 channel 1400 X 1050 6 bit 2 channel 1440 X 900 8 bit 2 channel 1600 X 900 8-bit 2 channel Package included: 1 x 3663 Controller Board (Black or Green Color board , ramdom deliver) 1 x Remote 1 x IR 1 x 7 Key button 1 x 25cm Data Cable Buyer Show
 if not situable, You need to buy a cable on Officematics which is suitable for your deviceand please don't leave a message that you want other cables. sorry. we have not. we have not. we just have this cable in stock. P1
P2
P3
P4
P5
P6
P7
P8
Languages SearchingPlay Movie From USBHow to into Factory setting?Press"Input" button then press"2 5 8 0"You can set a boot logo and mirror display.Press INPUT 2580 into factory settingif your display is bad,Press “input 2580” on the remote intofactory setting-“Special SET”-LVDS MAPThen press“left/right” and change the LVDS Map number to the proper number, the LCD panel will go to the normal picture.
Connection just for reference (For Panel needs inverter)
|
