Product Description

***-***

▉About logistics description:Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.If you did not choose a magnetic product. Then your transportation will not be changed to a magnetic transportation route.

Warning:

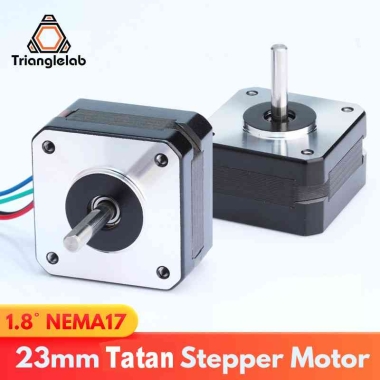

1.8° NEMA17 23mm Ttan Stepper Motor

Specifications:

4-lead Nema 17 23mm tatan Stepper MotorNEMA 17Number of Phase 2
StepAngle 1.8° deg.Rated Voltage 5.5VRated Current/Phase 1A(Peak Value)Phase Resistance 5.5Ω±10％(20℃)Phase Inductance 6.7mH±20％(1kHz 1V RMS)Holding Torque 2.0 kg.cm
Insulation Class B(130℃)Weight 0.15kg

Motor size

Motor wire

✿Specifications:

1.8° NEMA17 23mm Tatan Stepper Motor

NEMA 17Number of Phase 2Step Angle 1.8° deg.Rated Voltage 5.5VRated Current/Phase 1A(Peak Value)Phase Resistance 5.5Ω±10％(20℃)Phase Inductance 6.7mH±20％(1kHz 1V RMS)Holding Torque 2.0 kg.cmInsulation Class B(130℃)Weight 0.15kg
