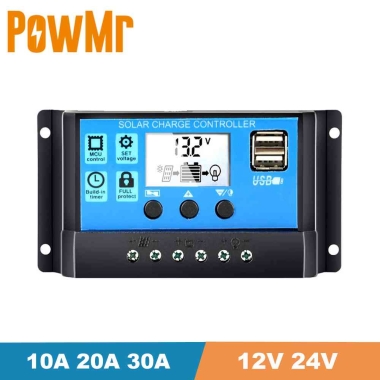

Solar Battery Charger Controller 30A 20A 10A LCD PWM 12V 24V Auto Solar Regulator with Dual USB 5V Output for Home PV System NEW

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel ,Seal ,Flood battery automatically

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

Automatically manage the working of solar panel and battery in solar system.

Overloading and short-circuit protection.Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

Protection from lightning strike

Prolong the battery life cycle and keep the load work well.

Easy to set up and operate.

Suitable for small solar energy system.

Big LCD display,all adjustable parameter.

Fully 4-stage PWM charge management.

Solar Charge Controller

User manual

Retail Box

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
