especificación	VM PLUS 3.5KW VM PLUS 3.5KW WIFI VM PLUS 5.5KW VM PLUS 5.5KW WIFI
Input Voltage	24V 48V
Output Voltage	220-240V

Descripción
Comentarios de clientes(0)

Item specifics

Brand Name PowMr
Origin CN(Origin)
Certification CE
Certification FCC
Size 100*300*440
Output Frequency 50HZ/60HZ
Output Type Single
is_customized Yes
Output Current 100A
Output Power 98%
Weight 11KG
Is Smart Device YES
Model Number VM PLUS
AC Output 230VAC
Maxmium PV Array Open Circuit Voltage 500VDC
Maxmium Charging Current 100A
Rated Power 5500VA/5500W
Voltage 220VAC 230VAC
Surge Power 7000VA/10000VA
Battery voltage 24V/48V
Maximum PV Array Power 5500W
Communication interface USB/RS232/WIFI
Wave form Pure Sine Wave
Battery CAN work without battery
Type MPPT Solar Inverter

Product Description

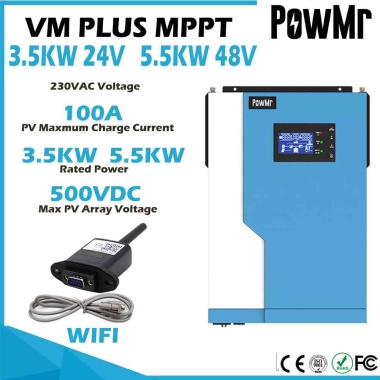

PowMr Hybrid Off Grid Inverter 3500W/5500W Pure Sine Wave 24V Built-in MPPT 100A Solar Controller Max 500VDC PV Input Support WIFI

Product Introduction

Battery Connection
Model	Typical Amperage	Battery Capacity	Wire Size	Ring Terminal			Torque value
				Cable mm2	Dimensions
					D(mm)	L（mm)
3.5KW	100A	100AH	1*4AWG	35	6.4	33.2	2~3 Nm
5.5KW		200AH	2*8AWG		6.4	29.20
AC Input/Output Connection
Model	AC Breaker	Gauge			Torque value
3.5KW	32A	12 AWG			1.2 Nm
5.5KW	50A	10 AWG
PV Connection
Model	Typical Amperage	Gauge			Torque value
3.5KVA	50A	8 AWG			1.4~1.6 Nm
5.5KVA
PV Module Selection (Take 250Wp PV Module as Sample）
Maximum Power(Pmax)			250W	Max.PV module numbers in series
Max. Power Voltage Vmpp(V)			30.1V	Min：6:120V/31.1V
				Max：13:450V/31.1V
Max.Power Current Impp(A)			8.3A	PV module numbers in parallel
Open Circuit Voltage Voc(V)			37.7V	9: 80A/8.42 (3.5KW)
				9: 80A/8.42 (5.5KW)
Short Circuit Current Isc(A)			8.4A	Total PV module numbers:			20
Maximum PV module numbers in Series :13
PV module numbers in parallel :20
Total PV module numbers :10Pcs in Serial and 2 set in parallel：20

Pure sine wave inverter

3.0 KW 5.5KW MPPTSolar charger of the maximum charging current is 100A120-500V wide PV inputLithium batteryCan work no batteryGenerate power from PV directly to supply load, even without batteryPV to AC efficiency is much higherinperut 5500w pure invert hybrid inverter with wifi mppt

System Parameter

Model	VM PLUS 3500W WIFI	VM PLUS 5500W WIFI
Rated Power	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Selectable Voltage Range	170～280VAC(For Personal Computers)
	90～280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficienc(Peak)PV to INV	97%
Efficienc(Peak)Battery to INV	94%
Transfer Time	10ms(For Pensonal Computers);20ms(For Home Appliances)
Battery & AC Charger
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	80A
Solar Charger
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120～450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Charging Current	100A
Maximum Efficiency	98%
Physical
Dimension,DWH(mm)	100300440
Net Weight(kgs)	11	12
Communication Interface	USB/RS232/GPRS/WIFI
Operating Environment
Mumidity	5% to 95% Relative Humidity(Non～condensing)
Operating Temperature	0℃～55℃
Storage Temperature	-15℃～60℃
