Current	MPPT 60A

Description
Customer Reviews(0)

Item specifics

Brand Name PowMr
Origin CN(Origin)
Model Number HHJ-60A PowMr
Maximum Current 60A 50A 40A 30A
is_customized Yes
Certification CE
Is Smart Device NO
Application Charger Controller
Application Voltage Controller
Application Lighting Controller
Application Solar System Controller
Application Solar Working Station
Battery Voltage 12V 24V 36V 48V Auto
Item PowMr MPPT Solar Charge Controller 60A 50A 40A 30A
Product MPPT 60A Solar Charge Controller
Battery Type Vented/ Sealed / Gel / NiCd /Lead Acid/ Lithium Battery Etc
Dispaly Backlight LCD Controller
Cooling way Forced Air Cooling
Charging mode MPPT Maximum Power Point Tracking Automatically
PV utilization ≥99% For 100% MPPT Technology
The maximum PV input power 12V System (720W) 24V System (1440W) 36V system (2100W) 48V System (2800W)
For home Easy To Be Mounted With Overcharge protection Input PV polarity reverse protection Output Limited Current Protection
Size (mm) 214x115x50
Net weight(Kg) 1.38

Product Description

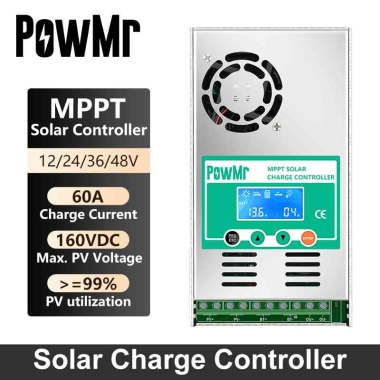

PowMr MPPT Solar Charge Controller 60A 50A 40A 30A LCD Display 12V 24V 36V 48V Auto Solar Regulator for Max 160V DC Input HHJ-60A

Overview:

MPPT 60A This machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 97%.

Package Including:

1x MPPT Solar Charge Controller

1 x English manual

4 x Corner connections

4 x Screws for controller casing

Featrues:

❶MPPT30A/40A/50A/60A solar charge controller

❷100% MPPT technology

❸Built-in DSP controller with high performance

❹Automatic switch for 12V/24V/36V/48Vbattery bank

❺3-stage charging optimizes battery performance

❻Overcharge protection, Input PV polarity reverse protection, Output limited current protection,

Over-temperature protection

❼Troubleshooting promotion function.

❽Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc

❾Easy to be mounted

you can Put two pieces 60A in parallel, So total is MPPT 120A

Support unlimited parallel connection

Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Product Datail:

Model Name	MPPT-30A	MPPT-40A	MPPT-50A	MPPT-60A
Charging mode	MPPT Maximum power point tracking automatically
Charging	3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type	DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition	12V system (DC9V-DC15V)
	24V system (DC18V-DC29V)
	36V system (DC30V-DC39V)
	48V system (DC40V~DC60V)
Soft start time	≤1S
Dynamic response and recovery time	≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
PV utilization	≥99%
Input specification
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )	12V system (DC20V~DC80V)
	24V system (DC37V~DC105V)
	36V system (DC50V~DC160V)
	48V system (DC72V~DC160V)
The maximum PV input voltage (Voc)	DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)	12V system (360W)	12V system (480W)	12V system (600W)	12V system (720W)
	24V system (720W)	24V system (960W)	24V system (1200W)	24V system (1440W)
	36V system (1080W)	36V system (1400W)	36V system (1800W)	36V system (2100W)
	48V system (1440W)	48V system (1700W)	48V system (2200W)	48V system (2800W)
Output specification
Selectable battery type(default is Sealed)	Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage	Refer to Batteries charging reference
Floating Charging Voltage	Refer to Batteries charging reference
Overcharging protection voltage	12V system (15V)
	24V system (30V)
	36V system (45V)
	48V system (60V)
Rated output current	30A	40A	50A	60A
Temperature Coefficient	±0.02%/ centi-degree
Automatic temperature compensation	14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak	100mV
Output voltage accurac	≤±1%
Input Anti-intrusion protection	yes
Temperature Protection	75°C
Temperature increased protection	Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C
Fan-on temperature	>40 °C
Fan-off temperature	<35 °C
Acoustic noise	≤40dB
Cooling way	Forced air cooling
Components	Imported materials, Accord to EU standards, Industrial grade range.
Environmental requirements	Meet 2002/95/EC; No cadmium, hydrides and fluorides
Security Level	Accord to CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility	Accord to EN61000, EN55022, EN55024
Enclosure	IP21
Net weight(Kg)	1.1
Gross weight(Kg)	1.2
