Item specifics
-
Brand Name
PowMr
-
Origin
CN(Origin)
-
Model Number
MPPT 60A 50A 40A 30A
-
Maximum Current
60A 50A 40A 30A
-
is_customized
Yes
-
Certification
CE
-
Application
Charger Controller
-
Application
Voltage Controller
-
Application
Lighting Controller
-
Application
Solar System Controller
-
Application
Solar Working Station
-
Charging mode
MPPT Maximum power point tracking automatically)
-
Dispaly
Backlight LCD Controller
-
Battery Voltage
12V 24V 36V 48V Auto
-
Battery Type
Lead Acid/Vented/ Sealed / Gel / NiCd /AGM/ Lithium battery
-
Cooling way
Forced air cooling
-
Voc from PV (12V battery)
DC20V~DC80V
-
Voc from PV (24V battery)
DC37V~DC105V
-
Voc from PV (36V battery)
DC50V~DC160V
-
Voc from PV (48V battery)
DC72V~DC160V)
-
Item

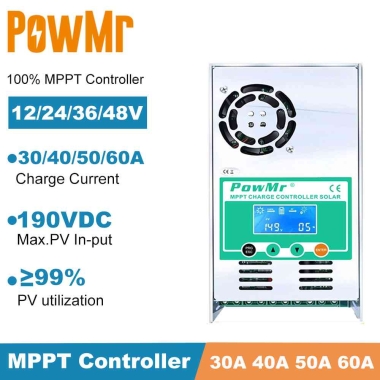

PowMr MPPT Solar Charge Controller 60A 50A 40A 30A
-
Product
MPPT Solar Regulator
 PowMr MPPT Solar Charge Controller 60A 50A 40A 30A Backlight LCD 12V 24V 36V 48V Solar Regulator for Max 190V Solar Panel Input
This is100% MPPT Solar Charger Controller ,12V 24V 36V 48VAuto work , it is used for Lead acid ,gel , lithium battery.we have30A 40A 50A 60A, you can put two piece40Asolar controllers in parallel ,so total isMPPT 80A you can put two piece50Asolar controllers in parallel,so total isMPPT 100A you can put two pices60Asolar controllers in parallel ,so total isMPPT 120A
100% MPPT controller Intelligent Maximum Power Point Tracking technology Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V Three-stage charging optimizes battery performance Multi-function LCD displays Reverse polarity protection of solar panel Overcharge protection Can be mounted easily Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection. Model Name | MPPT-30A | MPPT-40A | MPPT-50A | MPPT-60A | Charging mode | MPPT Maximum power point tracking automatically | Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge | System type | DC12V/24V/36V/48V Recognition automatically | System voltage automatic recognition | 12V system (DC9V-DC15V) | 24V system (DC18V-DC29V) | 36V system (DC30V-DC39V) | 48V system (DC40V~DC60V) | Soft start time | ≤1S | Dynamic response and recovery time | ≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) | PV utilization | ≥99% | Input specification | Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) | 12V system (DC20V~DC80V) | 24V system (DC37V~DC105V) | 36V system (DC50V~DC160V) | 48V system (DC72V~DC160V) | The maximum PV input voltage (Voc) | DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) | The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.) | 12V system (360W) | 12V system (480W) | 12V system (600W) | 12V system (720W) | 24V system (720W) | 24V system (960W) | 24V system (1200W) | 24V system (1440W) | 36V system (1080W) | 36V system (1400W) | 36V system (1800W) | 36V system (2100W) | 48V system (1440W) | 48V system (1700W) | 48V system (2200W) | 48V system (2800W) | Output specification | Selectable battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) | Absorption Charging Voltage | Refer to Batteries charging reference | Floating Charging Voltage | Refer to Batteries charging reference | Overcharging protection voltage | 12V system (15V) | 24V system (30V) | 36V system (45V) | 48V system (60V) | Rated output current | 30A | 40A | 50A | 60A | Temperature Coefficient | ±0.02%/ centi-degree | utomatic temperature compensation | 14.2V-(Max temperature-25 centi-degree)*0.3 | Output voltage ripple-peak | 100mV | Output voltage accurac | ≤±1% | Input Anti-intrusion protection | yes | Temperature Protection | 75°C | Temperature increased protection | Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C | Fan-on temperature | >40 °C | Fan-off temperature | <35 °C | Acoustic noise | ≤40dB | Cooling way | Forced air cooling | Components | Imported materials, Accord to EU standards, Industrial grade range. | Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides and fluorides | Security Level | Accord to CE, PSE, FCC, EMC, EN60950 | Electromagnetic Compatibility | Accord to EN61000, EN55022, EN55024 | Enclosure | IP21 | Net weight(Kg) | 1.1 | Gross weight(Kg) | 1.2 |
|
