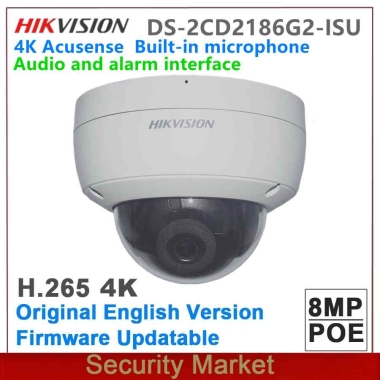

Item No:DS-2CD2186G2-ISU 4K Acusense Fixed Dome Network Camera

1.Lens Optional:

4 mm 2.8 mm

2.Feature:

High quality imaging with 8 MP resolution

Excellent low-light performance via powered-by-DarkFighter technology

Efficient H.265+ compression technology

Clear imaging against strong back light due to 120 dB true WDR technology

Focus on human and vehicle targets classification based on deep learning

Built-in microphone for real-time audio security (-SU)

Audio and alarm interface available(-SU)

Water and dust resistant (IP67) and vandal resistant (IK10)

• Camera

• Image Sensor1/1.8" Progressive Scan CMOS

• Shutter Speed1/3 s to 1/100,000 s

• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

• Slow ShutterYes

• P/NP/N

• Wide Dynamic Range120 dB

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

  4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

• Lens MountM12

• Iris TypeFixed

• ApertureF1.6

• Working Distance

  2.8 mm: 2.6 m to ∞

  4 mm: 3.2 m to ∞

• DORI

• DORI

  2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

  4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

• Illuminator

• Supplement Light TypeIR

• Smart Supplement LightYes

• IR Wavelength850 nm

• IR RangeUp to 30 m

• Video

• Max. Resolution3840 × 2160

• Main Stream

  50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain Profile

• H.264+Main stream supports

• H.265+Main stream supports

• Bit Rate ControlCBR/VBR

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Audio Type-U: mono sound

• Environment Noise Filtering-U: Yes

• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network

• Simultaneous Live ViewUp to 6 channels

• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

• User/HostUp to 32 users. 3 user levels: administrator, operator and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central

• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• SNR≥ 52 dB

• Target CroppingYes

• Day/Night SwitchDay, Night, Auto, Schedule

• Image EnhancementBLC, HLC, 3D DNR

• Image Parameters SwitchYes

• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

• Built-In Microphone-U: Yes

• Audio

  -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm-S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)

• Hardware ResetYes

• Event

• Basic Event

  Motion detection (human and vehicle targets classification), video tampering alarm, exception

  -S: alarm input and output

• Smart EventScene change detection

• Deep Learning Function

• Face CaptureYes

• Perimeter Protection

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Supports human and vehicle targets classification

• General

• Camera MaterialMetal

• Screw MaterialSUS304

• Camera DimensionØ121.4 mm × 92.2 mm (Ø4.8" × 3.6")

• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")

• Camera WeightApprox. 590 g (1.3 lb.)

• With Package WeightApprox. 850 g (1.9 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Linkage Method

  Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture

  -S: trigger alarm output, audible warning

• Firmware VersionV5.5.112

• Power Consumption And Current

  12 VDC, 0.5 A, max. 6 W

  PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power InterfaceØ5.5 mm coaxial power plug

• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

• Software ResetYes

• Approval

• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  KC (KN 32: 2015, KN 35: 2015)
