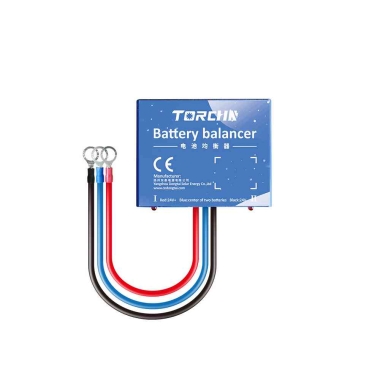

4pcs IP65 4A Battery Equalizer Battery Balancer 10-15V DC For 24V 36V 48V

96V Ternary Lithium Iron Lead Acid GEL Battery

1.About balanced battery equalizer?

The battery equalizer is a method to actively balance the voltage difference caused by the individual capacity difference and the self-discharge rate of the battery during working.

The main function is that whether the battery pack is charged, discharged or placed, it can be used to actively balance the differences between the battery cells within the battery pack to eliminate the battery pack caused by itself and during use. Various inconsistencies.

However, because the energy transfer in the equalization process will cause heat loss due to the efficiency characteristics of the equalizing power supply itself, and the change of the polarization internal resistance in the electrochemical characteristics of the battery, simple energy equalization methods cannot really solve the problem. Therefore, it is possible to achieve a relatively good effect on the whole only if it is applied reasonably.

2.The advantage of battery balancing

It is to use electronic technology to keep the battery cell voltage deviation within the expected range, so as to ensure that each cell is not damaged during normal use. If the balance control is not carried out, as the charge and discharge cycles increase, the voltage of each single battery will gradually differentiate, and the service life will be greatly reduced. Our products can increase battery life by 25%-50%.

3.About battery balance parameter

1)Balancedbatteryvoltage:10V~15VDC

2)Battery Voltage: Every 2*12V or 2*11.1V or 2*12.8V

3)Balanceable current:0~4A

4)Static consumption:≦3mA

5)Battery Group Voltage: 24V,36V,48V,60V,72V,96V etc. (12V multiples of battery pack. No limit on the maximum of battery pack voltage )

6)Applicable battery type :

Lead-acid, GEL; Ternary Lithium battery; Lithium Iron battery

7)Connecting wires: 3 colors(red, blue, black),

8)Cable Length:2*25cm/9.85Inch, 1*30CM/11.8Inch

9)Balancer Net Size:6.5*5*1.6cm/2.6*1.97*0.63 Inch

10)Net Weight: 0.13KGS
