Color	15A 20A 30A 40A 50A 60A 80A

Description
Customer Reviews(0)

Item specifics

Brand Name hobbywing
Material Rubber
Technical parameters Value 5
Wheelbase Screws
Size 15A 20A 30A 40A 50A 60A 80A
Model Number 15A 20A 30A 40A 50A 60A 80A
For Vehicle Type Helicopters
Tool Supplies ESC Speed Controller
Remote Control Peripherals/Devices ESC
Use Vehicles & Remote Control Toys
Upgrade Parts/Accessories ESC Speed Controller
Four-wheel Drive Attributes ESC Speed Controller
RC Parts & Accs Speed Controllers
Name ESC Speed Controller
Power 15A 20A 30A 40A 50A 60A 80A

Product Description

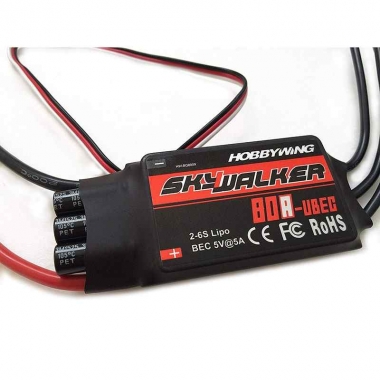

Hobbywing Skywalker 15A 20A 30A 40A 50A 60A 80A ESC Speed Controller With UBEC For RC Airplanes Helicopter

Product description

Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
Specially optimized software for excellent compatibility with disc-type motors.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

Specifications:
Constant current: 15A
Peak current (10s): 20A
BEC: 5V 2A
Lipo: 2-3S
Net Weight: 14g

20A: Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm 40A:

Model: Skywalker-40A

Continuous Current: 40A

Burst Current (>10s): 55A

BEC Mode: Linear

BEC Output: 5V2A

BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

Net Weight: 35g

Dimension (L x W x H): 68 x 25 x 8mm

Constant Current: 30A
Peak Current:40A(10s)
Voltage: 2-3S lixx
BEC: Yes
BEC Output: 5V/2A
Color: black
Programmable:Yes
Size: 70*25*8mm (not including cable length)
Net Weight:38g

- COntinuous output: 50A
- Burst current: 60A@10S
- Power input: 2-4S Lixx/5-12S Nixx
- 5V/3A BEC output, switch mode
- Refresh rate: 50Hz-432Hz
- Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min
- Dimension: 68*25*12mm
- Weight: 43g

Packet content:
