For Sega SEGA Game Gear GG Highlight Screen LCD Retrofit Kit V-3.1 Version

1. 3.5-inch a-Si TFT LCD liquid crystal screen, 320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors

2.Support Sega single chip motherboard and dual chip motherboard:

Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560

Two-chip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0

3.Not supported: Majesco Game Gear VA4 / VA5

NOTE:The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support

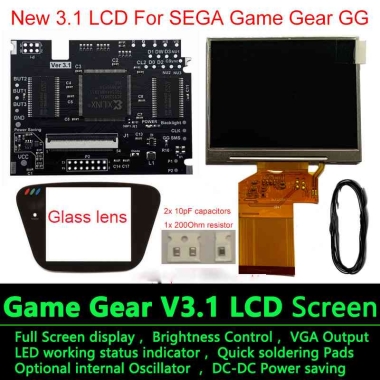

Package included:

1x 3.5-inch LCD screen

1x Screen drive board

1x Several wires

2x 10pF capacitors

1x 200Ohm resistor

if you need Glass screen lens，you can choose： with Glass lens set

What is included as you choose

V-3.1 New features：

①Increase the working status indicator, which can quickly judge the working status

②Increase the position of 3225 X1 active crystal oscillator. For individual motherboards with interference, you can choose to install the built-in crystal oscillator yourself.

③Add P1 and P2 quick welding points on the back

④Better than V2-B

V2-B version improvements:

①Power saving design with DC-DC power supply chip,MP1471chip.

② Better SMS Game compatibility.

③Add P1 P2 label，Add 3MP1 jumper point.

④High quality PCB than V1 and V2.

V2 version improvements:

① The model of SRAM cache chip is changed from IS61WV6416-10TI to IS61LV6416-8TI, which is more power-saving, faster and has no image tearing.

② The power supply is improved to AMS1117 3.3, the maximum load is 1.0A, and the operation is more stable

③ Replacement of backlight drive circuit to reduce power consumption

④ Welding marks are newly added to optimize the position of welding points, making welding easier
